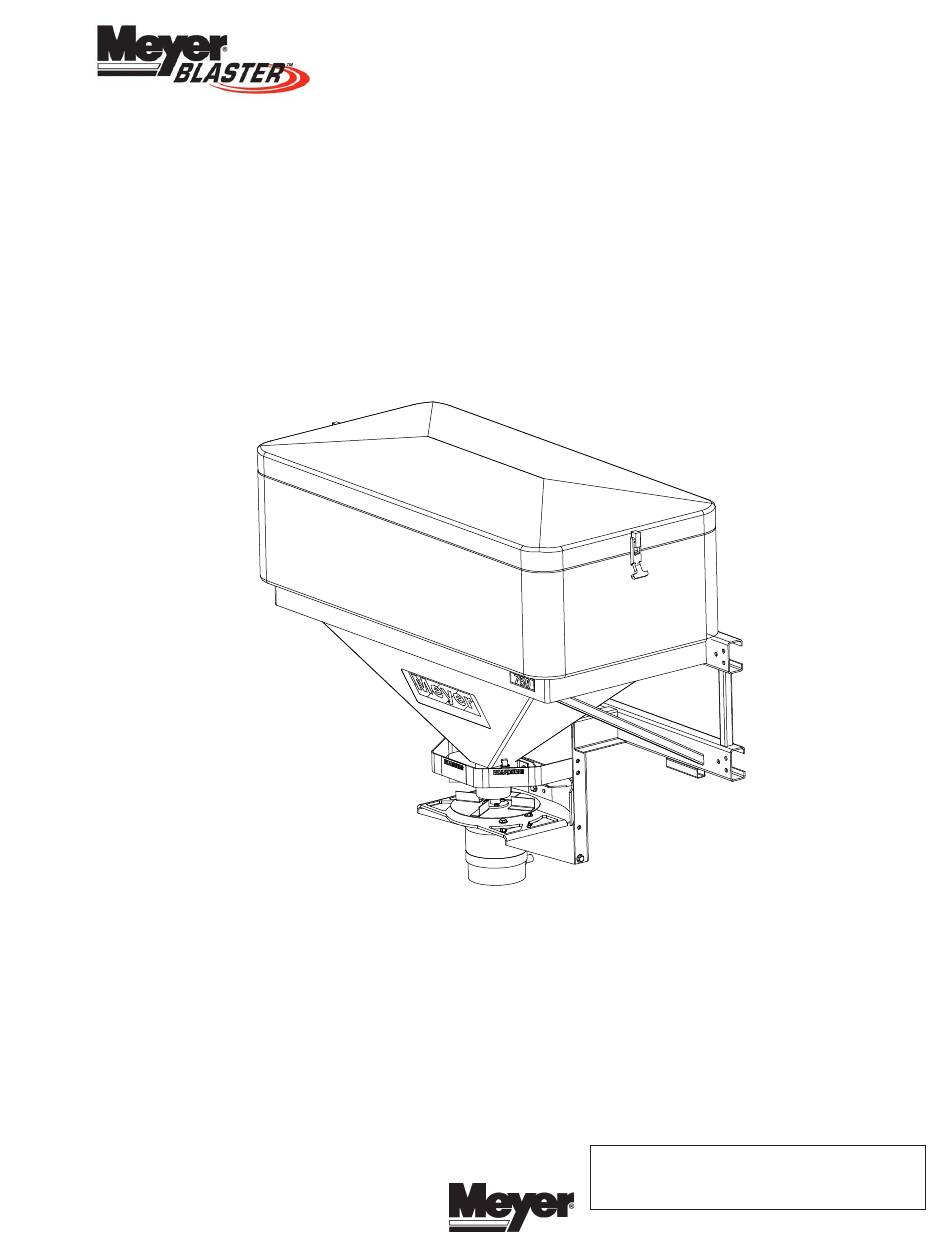

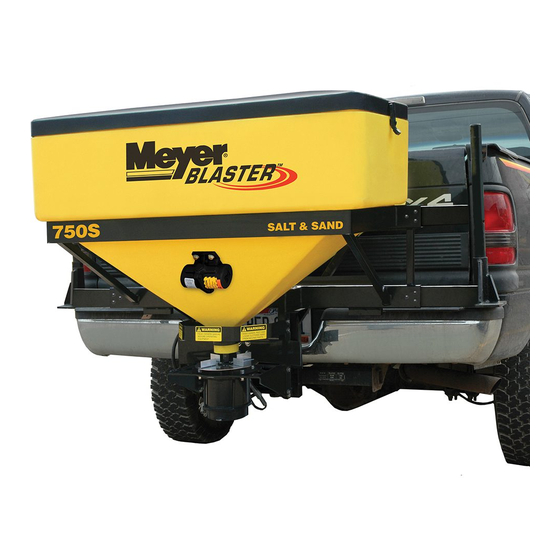

Installation Instruction and Owners Manual
BLASTER SALT/SAND SPREADERS
MOUNTING SYSTEMS
for Models: 750 & 750S
Meyer Products LLC reserves the right, under its continuing product improvement program, to change construction or design details,
specifications and prices without notice or without incurring any obligation.
Meyer Products LLC
18513 Euclid Ave. • Cleveland, Ohio 44112-1084
Phone (216) 486-1313
www.meyerproducts.com• email info@meyerproducts.com
© 2013 Printed in the U.S.A.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Meyer BLASTER 750
Summary of Contents for Meyer BLASTER 750
- Page 1 BLASTER SALT/SAND SPREADERS MOUNTING SYSTEMS for Models: 750 & 750S Meyer Products LLC reserves the right, under its continuing product improvement program, to change construction or design details, specifications and prices without notice or without incurring any obligation. Meyer Products LLC 18513 Euclid Ave.
- Page 2 INSTALLING HINGED MOUNT MODEL: (35500) This section covers the installation of a BLASTER 750 & 750S on a vehicle as hinged mount. CAUTION – This salt spreader is a heavy, bulky item that should be installed with assistance. As with any new equipment installation read and understand all instructions prior to starting the job, and do not hurry through it. A correct installation now can save time and money later.
- Page 3 HINGED MOUNT COMPONENTS (35500) Holes must be drilled by installer Parts List Item Part No. Qty. Description 35500 Magnum Hinge Mount 35505 • Bumper Plate DS 35506 • Bumper Plate PS 35502 • Bed Rail Bracket DS 35503 • Bed Rail Bracket PS 35504 •...
- Page 4 SWING WAY HITCH MOUNT (35100) Parts List Item Part No. Qty. Description 35100 Swing Away Hitch Mount 08670 • Pin w/Lynch Pin Kit 11101 •• Hinge Pin 22083 •• Lynch pin 34608 • Hardware Bag 350/750 22732 •• Locknut 1/2-13 SS 22733 ••...
- Page 5 SWING WAY HITCH MOUNT (35160) Parts List Item Part No. Qty. Description 35160 Swing Away Hitch Mount 08670 • Pin w/Lynch Pin Kit 11101 •• Hinge Pin 22083 •• Lynch pin 34608 • Hardware Bag 350/750 22732 •• Locknut 1/2-13 SS 22733 ••...
- Page 6 INSTALLING FIXED MOUNT MODEL: (35200) This section covers the installation of an BLASTER 750 & 750S as a fixed mount. CAUTION – because of its bulk and weight, this salt spreader should be installed with an assistant. As with any new equipment installation, please read and understand all instructions prior to starting the job, and do not hurry through it.
- Page 7 (35300) Note: This mounting is designed to support a BLASTER 750 & 750S spreader when mounted to a 2 or 3 yard dump truck with a tailgate. Start by placing the spreader on the ground face down, locate the PS & DS Upright Weldment (2 & 3) and eight 3/8"-16 x 1-1/4"...
- Page 8 (35400) Note: This mounting is designed for use with the BLASTER 750 & 750S spreaders, when used with a flat bed vehicle. Begin the assembly by attaching the four Hooks (6) DS & PS Upright Weldments (1 & 2). This is accomplished by using two 3/8"-16 x 1-1/4"...
