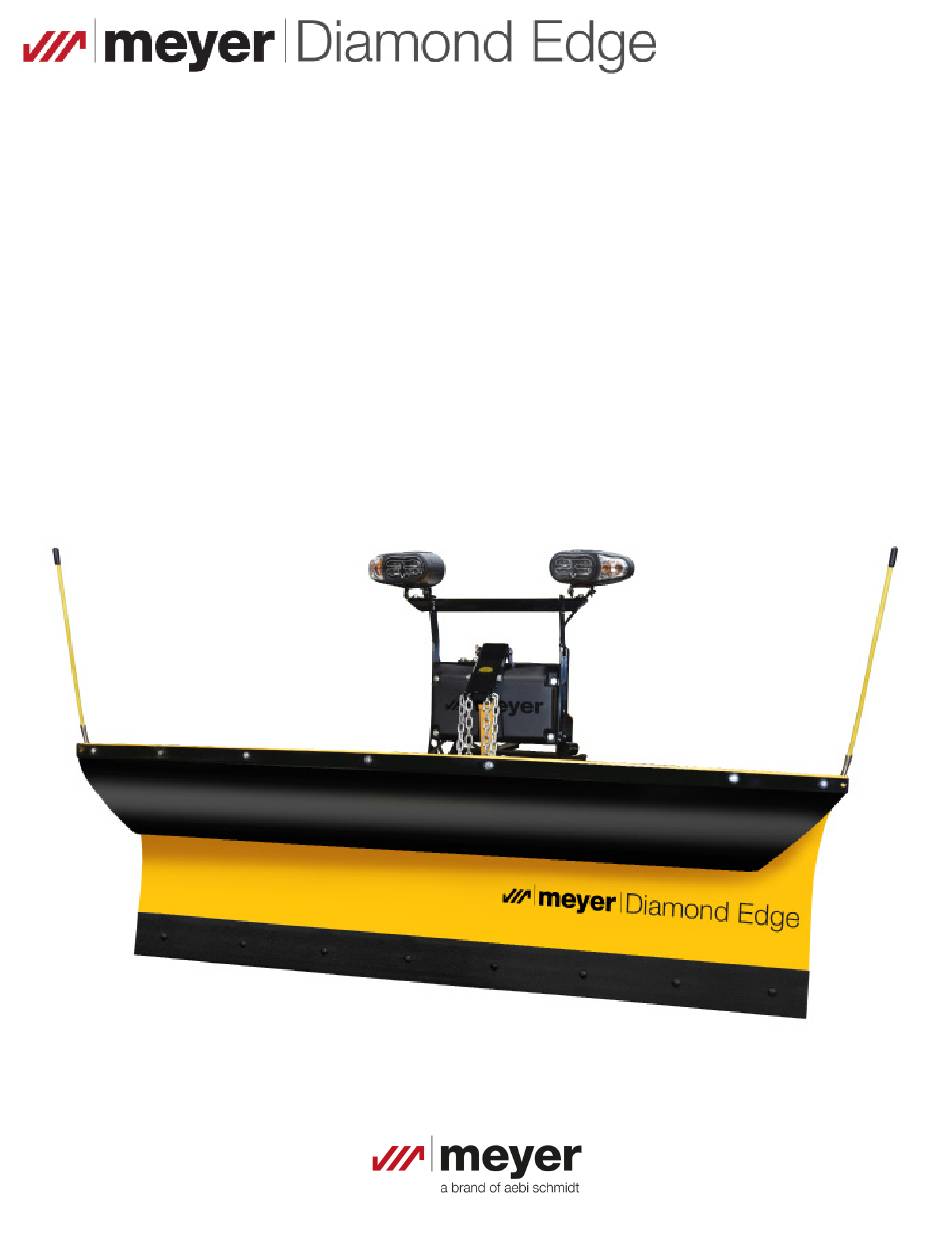

- Page 1 Form No. 1-1247 April 2022 Assembly Instructions Standard Operating System with Hands Free Plowing Includes: 41685 18513 Euclid Ave. • Cleveland, Ohio 44112-1084 © 2022 Printed in the U.S.A. www.meyerproducts.com Phone 216-486-1313...
-
Page 2: Table Of Contents
NOTICE: Meyer Products LLC reserves thje right, under its continuing product imporvement program, to change construction, design, details, specifications, and prices without notice or without incurring any obligation. Meyer Products LLC assumes no responsibility for installations not made in accordance with these instructions. -
Page 3: Black Iron Parts Lists
Black Iron Parts List... - Page 4 Black Iron Parts List Item Part Description Item Part Description 41620 DE SOS E73 7.5-9.0 41622 • Accessory Box 05818 Lift Ram 1.75 x 8” 23025 •• Power Cable 07772 • L.H. Ram with Hose & Fittings 07178 •• Trip Spring 05887 ••...
-
Page 5: Moldboard Parts List
Moldboard Parts List Part No. Part No. Part No. Part No. Item Description 7’ 6” 8’ 8’ 6” 9’ 84350 84351 84352 84353 Moldboard Assembly 84360 84361 84362 84363 • Moldboard Weld 84127 84128 84129 84130 • Cutting Edge 08223 08223 08223 08223... -
Page 6: E73 Hydraulics
E73 Hydraulics Hydraulic Solenoid Color Coil Wire Color Code: Raise Motor Solenoid + “B” Solenoid Motor White Note: Note: Ground wire for each coil is Lower “A” Solenoid Black Black with a White Stripe Left Angle Motor Solenoid Right Angle Motor Solenoid + “C”... -
Page 7: Standard Operating System Wiring
The following step is for 2015 & later GM vehicles with an alternator relay... 5) The WHITE wire will connect to 2015 & Later GM vehicles with alternator relay. See Meyer Products Service Bulletin SB252. 6) The PURPLE wire will connect to the black /violet wire of 2015 and later models of RAM 2500, 3500, 4500, and 5500 models. See mount instructions for further detail. -
Page 8: Plow Assembly & Adjustments
Plow Assembly & Adjustments Adjustable Clevis Adjustable Clevis Trip Spring Adjustment Trip Spring Adjustment The 14700 adjustable clevis The 14700 adjustable clevis is now standard with all Standard Operating Sys- Attach Eye Bolts to Moldboard and Trip Springs to Pivot Bar, making certain tem black iron packages. - Page 9 Attach the Lift Chain to the Lift Arm through the two hooks on the lift Top off the unit to the fill line on the reservoir with Meyer M-1 Hydraulic Fluid. arm. Adjust the lift chain at the lift arm so that there are 2-3 links of slack.
-
Page 10: Mounting Plow
Mounting Plow NOTE: NOTE: Pictures may vary based on model A. Pull vehicle into plow E. E. Remove crankstand assembly and push plow from a-frame. assembly forward an inch or two. B. B. Twist handles on both sides to engage spring loaded pins. -
Page 11: Dismounting Plow
Dismounting Plow A. Press down button until float light turns blue. E. E. Adjust crankstand until the crankstand comes in contact with the ground and then turn 1 to 2 revolutions. B. Push lift arm down until there is slack in the chain. F. -
Page 12: Pre-Delivery Inspection
PRE-DELIVERY INSPECTION Vehicle Make: Vehicle Model: Vehicle Year: Vehicle VIN#: Vehicle FGAWR: Installing Company: Hydraulic Serial Number: Moldboard Serial Number: All bolts torqued to specification Plow Operation Up Clevis height Suspension interference Plow Operation Left Clevis height in inches Plow Operation Right Trip springs adjusted Plow Operation Down Lift Chain Adjusted...
