Summary of Contents for Taylor C116

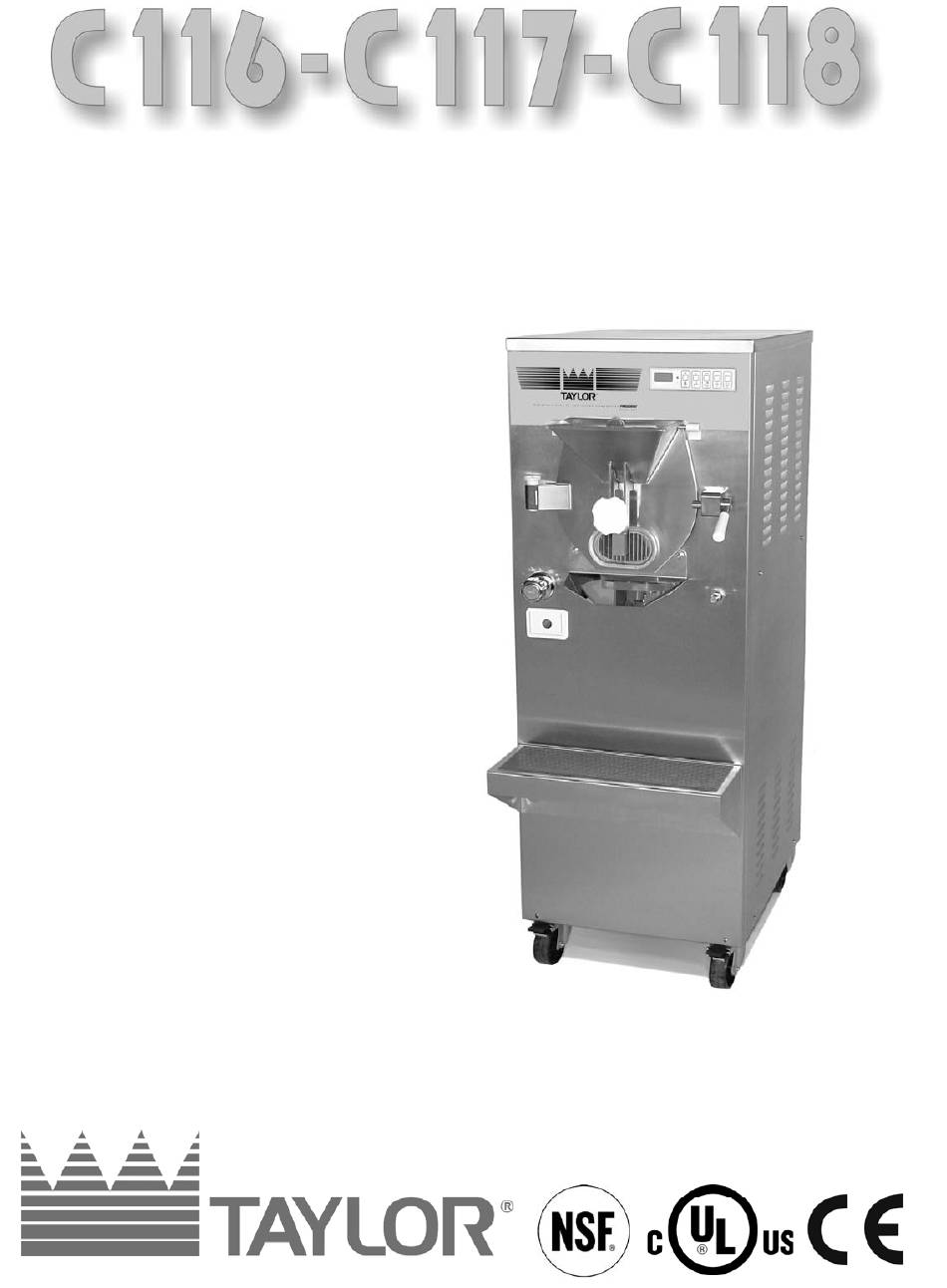

- Page 1 ELECTRONIC HORIZONTAL BATCH FREEZER TURBINES ÉLECTRONIQUES HORIZONTALES MANTECADORAS HORIZONTALES ELECTRÓNICAS MANTECATORI ORIZZONTALI ELETTRONICI MANUAL OF USE AND MAINTENANCE MANUEL D’UTILISATION ET D’ENTRETIEN MANUAL DE USO Y MANUTENCION MANUALE D’USO E MANUTENZIONE...
- Page 3 1 - ENGLISH...
- Page 4 IMPORTANT We recommend to carefully and fully read the present manual before using your TAYLOR COMPANY machine. In your own interest, pay particular attention to the following warnings: The non-observance of this warning can jeopardize the user’s health and the correct operation of the machine.
-
Page 5: Table Of Contents
TAYLOR COMPANY reserves the right to carry out all changes necessary to improve its product or manual without prior notice and to insert them in the subsequent issues. -
Page 6: Transport, Handling And Storage
Packing elements such as plastic bags, nails, expanded polystyrene, cartons, etc. must be left out of the children’s reach. 1.3 PACKING DIMENSIONS WATER CONDENSER AIR CONDENSER MODEL SIZES (mm) WEIGHT (KG) SIZES (mm) WEIGHT (KG) C116 600x1210x1595 600x1435x1595 C117 600x960x1595 600x1210x1595 C118 600x960x1595 600x1090x1595 ENGLISH - 4... -
Page 7: Marking And Graphics
STOP position, the master switch is off and/or the multipolar plug disconnected. TAYLOR COMPANY declines any liability for accidents deriving from an improper use of the machine due to the non-compliance with the above-mentioned recommendations. -
Page 8: Field Of Use
Warning! Do not touch with hands. The following plate placed on the back of air-cooled machines shows that cleaning operations on the heat exchanger shall be carried out only by means of a brush or an exhauster. Warning! High voltage inside, danger of fulguration. The following plate is placed on the electric box cover and warns the operator that in no case the cover must be removed avoiding this way the risk of... -
Page 9: Safety Devices
4. SAFETY DEVICES Shearing prevention system: realised by means of microswitches and safety circuit; it is activated when the door is opened and/or the grid on the hopper is lifted and it brings the machine to a temporary STOP: EME will appear on the display. Do not use this device to stop the machine during batch freezing cycles, but always use the STOP function instead. -
Page 10: Operations
5. OPERATION 5.1 CONTROLS 1. Door It hermetically seals the cylinder during the working cycles. It can be easily removed for cleaning purpose. 2. Safety grid - hopper cover It allows the operator to charge the product under safe conditions. The cover prevents the batch to get in contact with dust. -
Page 11: Control Panel
5.2 CONTROL PANEL Alphanumeric display After switching the machine on, an abbreviation made up by one letter and two numbers appears on the display: for example the abbreviation M 1.3 indicates the type of programme M = BATCH FREEZER (MANTECATORE) and 1.3 = SOFTWARE VERSION NUMBER. - Page 12 AUTOMATIC PRODUCTION pushbutton In the AUTOMATIC PRODUCTION function, the machine operates a batch freezing cycle until the consistency value of 240 is reached or until the ice-cream stops increasing its consistency within the sampling interval, which has been set in the electronic card (see Chapter 6.2.2.1).
-
Page 13: Ice-Cream Production
Lift the hopper cover and pour the mixture into the cylinder. Observe the suggested minimum and maximum quantities per cycle according to the following table: MODEL MINIMUM MAXIMUM C116 4.2 quart (4 liter) 15.8 quart (15 liter) C117 2.1 quart (2 liter) 10.5 quart (10 liter) C118 1.05 quart (1 liter) -
Page 14: Semi-Automatic Cycle
To obtain a thicker ice-cream, it is advisable to let the compressor run one or two cycles. To deliver the ice-cream, loosen the knob on the door and push it upward so as to open the delivery hole completely; then press DELIVERY pushbutton to bring the machine from low speed to high speed and to guarantee a fast... -
Page 15: Granita Production
5.4 GRANITA PRODUCTION 5.4.1 “COFFEÈ” GRANITA (crushed-ice drink) In this production cycle it is possible to set programme the processing time and not the consistency value as for the ice-cream automatic and semi-automatic production cycles. To switch to the GRANITA CAFFE’ function mode, press STOP... -
Page 16: Maintenance
To thoroughly clean your batch freezer, proceed as follows: 1. Pour approximately 15.8 quart (15 litres) of clean cold water into the cylinder for model C116, 10.5 quart (10 litres) for model C117, 6.3 quart (6 litres) for model C118. - Page 17 hand. door ready being disassembled. 6. Dismantle the door into pieces: • Unscrew the handle adjusting knob. • Remove the guide and the spring. • Remove the delivery door. • Remove the O-rings. 7. Pull the agitator and the stuffing box out: remove the scraping pads and wash them thoroughly.
-
Page 18: Maintenance Of Agitator And Gaskets
6.1.2 MAINTENANCE AGITATOR GASKETS The agitator blades are equipped with scraping pads made of atoxic plastic materials suitable for food industry. These components are subject to wear according to the characteristics of the employed mixture: with high sugar content and low fat percentage a remarkable wear of pads can be the detected. -
Page 19: Trouble-Shooting
7 TROUBLE-SHOOTING 7.1 ALARMS MANAGEMENT The “OMEGA” electronic card is a powerful control logic unit which signals possible machine troubles by means of alphanumeric messages visualised on the display; the technician shall understand them to quickly find the reason of this trouble. MESSAGE DESCRIPTION REMEDIES... -
Page 20: Trouble-Shooting
7.2 TROUBLE-SHOOTING TROUBLE POSSIBLE CAUSES REMEDIES The machine does not start (STOP Electric trouble. Send for a technician. pushbutton ON without active alarms) Incorrect power supply. Check phases. Master switch open. Turn the the switch off. The machine does not start (pushbuttonSTOP off) Burnt fuses. - Page 22 TAYLOR COMPANY, 750 North Blackhawk Boulevard, Rockton, IL 61072 Telephone: (815) 624-8333 Telex: 6871502 TAYLO Fax: (815) 624-8000 www.taylor-company.com December, 2002 Taylor All rights reserved cod. M04.37530...
