Erreka VIVO-M203 Quick Installation And Programming Manual

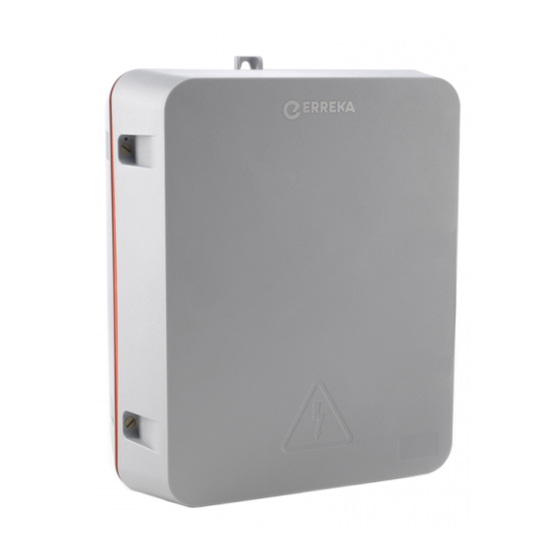

VIVO-M203(M)
Quick installation and programming guide
This quick guide is a summary of the complete installation manual. The manual contains safety warnings and
other explanations which must be taken into account. The installation manual can be downloaded by going
WARNING
to the "Downloads" section of Erreka website:
http://www.erreka.com/Automatismos/descargaDocumentos.aspx
NOTE: this control board is valid
for gate operators:
swing (C301),
sliding (C302),
up-and-over (C303).
Electrical wiring
A: Main power supply
B/F: Flashing light with antenna
C: Photocells (Rx / Tx)
D: Key switch
E: Operator
VERY IMPORTANT: The TC closing limit switch and
the TA opening limit switches must be installed.
Power supply and peripheral cabling (valid for all cases)
EPS1: traffic light card (with
parameter Ab00) or brake
card (with parameter Ab01,
see connection diagram on
page 12). See other options
on page 16.
ST1: open
ST2: close
DL6: LED FT1
DL9: LED FT2
DL10: LED ST2
DL11: LED ST1
DL12: LED radio running
DL13: LED garage light
DL14: LED 12Vdc
DL15: LED lock
Elements of the complete installation
Rx:
TA
TC
Tx:
TA
(resistive)
