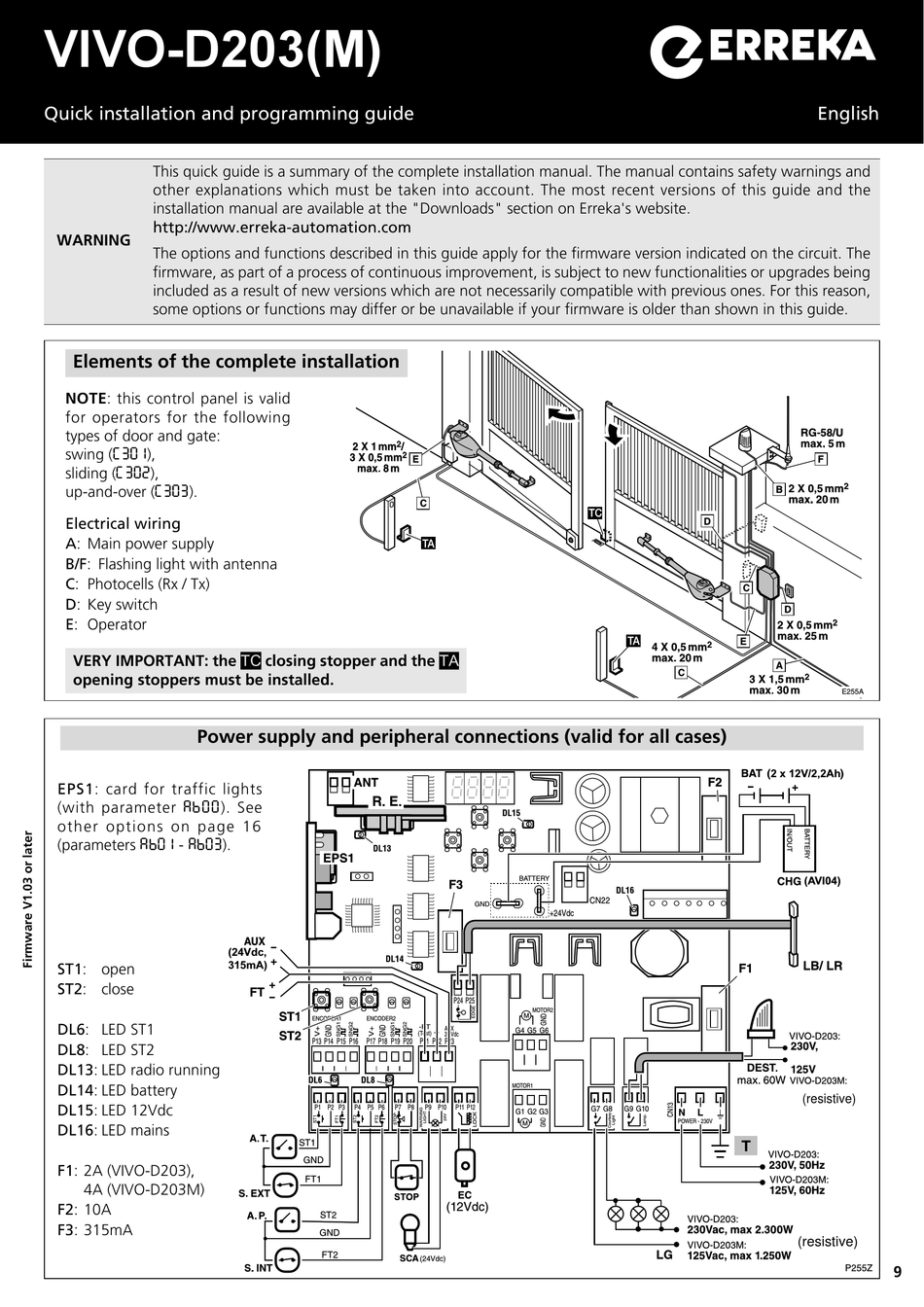

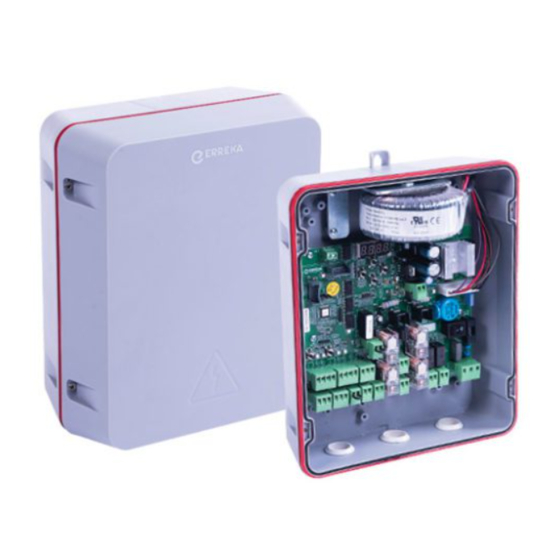

VIVO-D203(M)
Quick installation and programming guide
This quick guide is a summary of the complete installation manual. The manual contains safety warnings and
other explanations which must be taken into account. The most recent versions of this guide and the
installation manual are available at the "Downloads" section on Erreka's website.
http://www.erreka-automation.com
WARNING
The options and functions described in this guide apply for the firmware version indicated on the circuit. The
firmware, as part of a process of continuous improvement, is subject to new functionalities or upgrades being
included as a result of new versions which are not necessarily compatible with previous ones. For this reason,
some options or functions may differ or be unavailable if your firmware is older than shown in this guide.
Elements of the complete installation
NOTE: this control panel is valid
for operators for the following
types of door and gate:
swing (C301),
sliding (C302),
up-and-over (C303).

Electrical wiring

A: Main power supply
B/F: Flashing light with antenna
C: Photocells (Rx / Tx)
D: Key switch
E: Operator
VERY IMPORTANT: the TC closing stopper and the TA
opening stoppers must be installed.

Power supply and peripheral connections (valid for all cases)

EPS1: card for traffic lights
(with parameter Ab00). See
other options on page 16
(parameters Ab01 - Ab03).
ST1: open
ST2: close
DL6: LED ST1
DL8: LED ST2
DL13: LED radio running
DL14: LED battery
DL15: LED 12Vdc
DL16: LED mains
F1: 2A (VIVO-D203),
4A (VIVO-D203M)
F2: 10A
F3: 315mA
(24Vdc,
315mA)
English
2 x 12V/2,2Ah
(AVI04)
(resistive)
(resistive)
9
