- Page 1 BG-PSC11X2-HDBT 11X2 4K 18Gbps UHD HDMI/IP/YPbPr/VGA/CV/Audio/HDBaseT Input & Output Presentation Scaler/Switcher User Manual...
- Page 2 BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Menu Introduction Remote Control Description RS232 and Telnet Commands Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● Unpack the equipment carefully and save the original box and packing material for possible future shipment. -
Page 5: Introduction

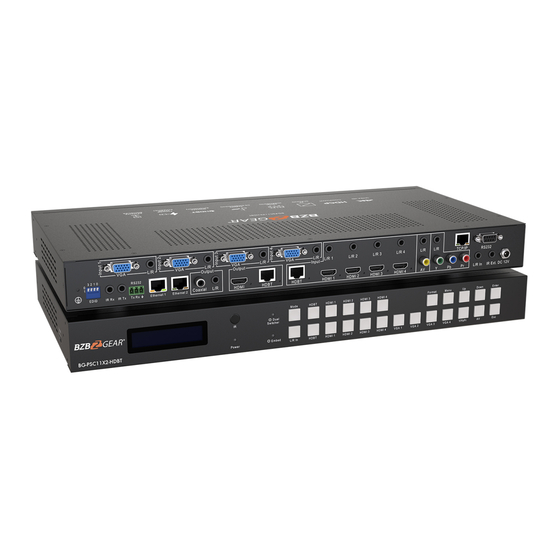

PRODUCT MANUAL Introduction The BG-PSC11X2-HDBT is a multi-format video presentation scaler switch with audio. It features 11 inputs of various video formats including HDMI, VGA, Component, Composite, and HDBaseT with HDMI and HDBaseT outputs. Video can be scaled to various aspect ratios and resolutions from 640x480 up to 1920x1080 @ 60Hz. -
Page 6: Technical Specifications
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL Technical Specifications General Bandwidth: 10.2Gbps Video Input Connectors: 4x HDMI Type A, 4x VGA, 1x RJ45, 1xYPbPr, 1x AV Video Output Connectors: 1x HDMI Type A, 1x RJ45 Audio Input Connectors: 11x 3.5mm stereo jack Audio Output Connectors: 1x 3.5mm stereo jack, 1x RCA (SPDIF) - Page 7 BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL 11. Enter button: Press to confirm the settings. 12. Power LED indicator: Indicates power status. 13. Embed LED indicator: When the LED is lit, embed mode is on. When the embed mode is on, the L/R In will be embedded into the HDMI outputs.
-
Page 8: Menu Introduction
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL 28. IR RX and IR TX: IR RX: Connect to the IR receiver cable. IR TX: Connect to IR emitter cable. 29. Phoenix terminal: Work with HDBT Transmitter / Receiver for RS232 pass through. 30. Ethernet ports: Connect to Ethernet. (Embedded Ethernet hub). -
Page 9: Remote Control Description
HDMI2/HDBT Out: Source selection for HDMI output 2 when in Matrix Switcher mode or when in Splitter mode Format: Video output resolution selection. The BG-PSC11X2-HDBT includes a built-in video scaler. Press the required resolution button on the remote control to change the HDMI output video resolution. -
Page 10: Rs232 And Telnet Commands
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL RS232 and Telnet Commands Command Action Print Help Information HELP Print Help Information STATUS Print System Status And Port Status Power On, System Run On Normal State POFF Power Off, System Run On Power Save State IR ON/OFF Set System IR Control On Or Off... -
Page 11: Application Example
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL Command Action xx=-: Volume Decrease Set Input:xx EDID Copy From Output:yy xx=00: Select All INPUT Port EDID xx CP yy xx=01: Select HDBT INPUT Port xx=[02...05]: Select HDMI INPUT:01~04 Port yy=[01...02]: Select One OUTPUT Port Set Input:xx EDID To Default EDID:zz (cmd: OUT RES rr Will Effect EDID Setting) -
Page 12: Tech Support
BZBGEAR BG-PSC11X2-HDBT PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.
