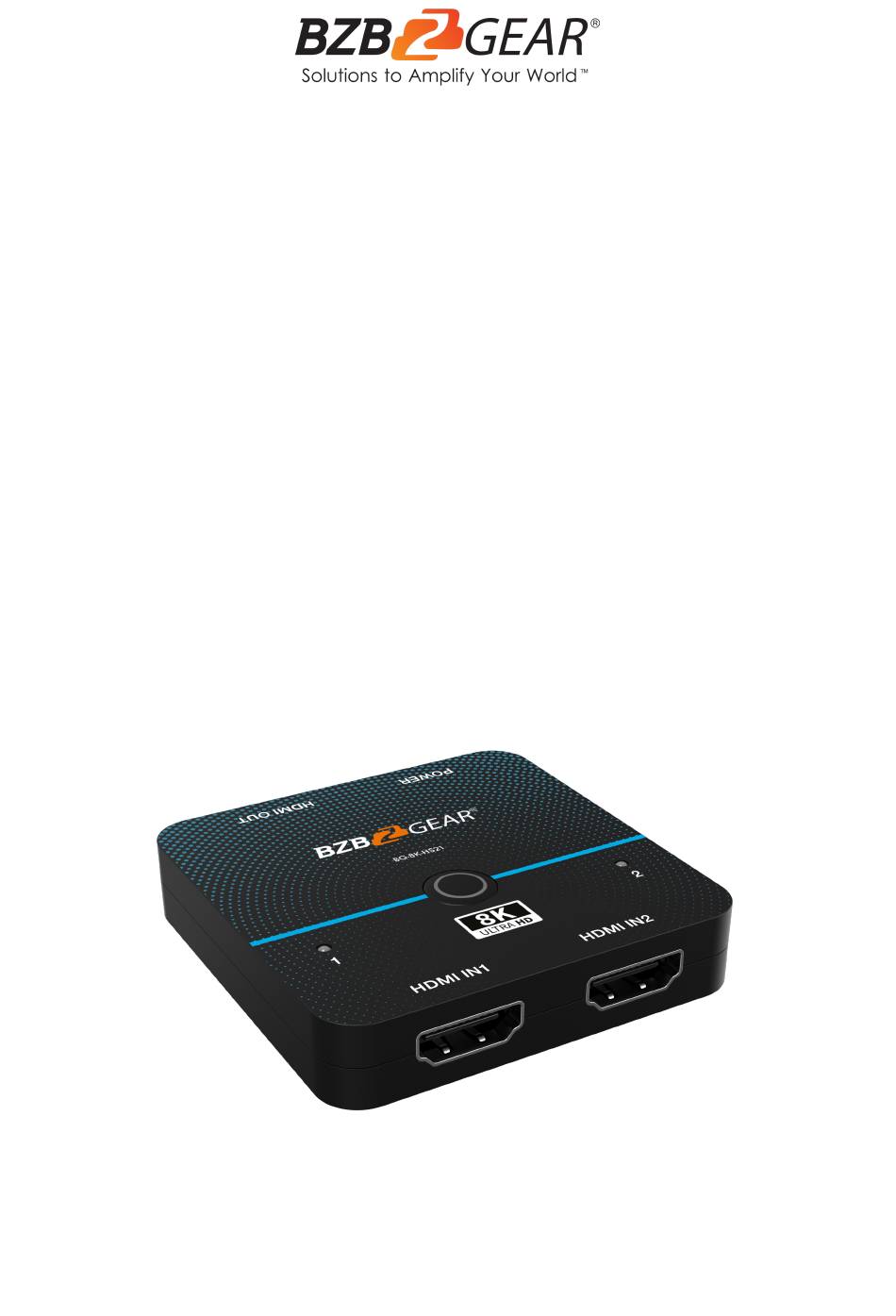

  • Page 1 BG-8K-HS21 8K 2x1 HDMI 2.1 Switcher User Manual...
  • Page 2 BZBGEAR BG-8K-HS21 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...

  • Page 3: Table Of Contents

    BZBGEAR BG-8K-HS21 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Application Diagram Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906...

  • Page 4: Statement

    BZBGEAR BG-8K-HS21 PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation.

  • Page 5: Introduction

    PRODUCT MANUAL Introduction The BG-8K-HS21 is an 8K 2x1 HDMI 2.1 switcher that can switch 2 connected HDMI sources to 1 HDMI display. It supports video resolutions up to 8K@60Hz 4:4:4 with up to 48Gbps of video bandwidth. It is suitable for outdoor displays, video conferencing, security monitoring, home theater, and other applications.

  • Page 6: Specifications

    BZBGEAR BG-8K-HS21 PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48 Gbps Up to 8K@60Hz 4:4:4 8/10/12-bit, 8K@60Hz 4:2:0 12-bit, Video Resolution 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit Color Depth 8-bit,10-bit,12-bit Color Space RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0...

  • Page 7: Operation Controls And Functions

    BZBGEAR BG-8K-HS21 PRODUCT MANUAL Operation Controls and Functions Name Function Description Short pressing the switch button will allow the device to switch between the two HDMI input signals to the HDMI display; long press this button Switch button /Power to enter the auto switching mode. When a new device is detected it will automatically switch.

  • Page 8: Application Diagram

    BZBGEAR BG-8K-HS21 PRODUCT MANUAL Notes: 1. While using the HDMI switcher, using the Micro USB cable power is not always necessary. However, some HDMI devices may have insufficient power via HDMI and will require the Micro USB to be connected to a power source.

  • Page 9: Tech Support

    BZBGEAR BG-8K-HS21 PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.

  • Page 10: Warranty

    BZBGEAR BG-8K-HS21 PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty.

  • Page 11: Mission Statement

    BZBGEAR BG-8K-HS21 PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog.

  • Page 12: Copyright

    BZBGEAR BG-8K-HS21 PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
