Advantech PCA-6004 Startup Manual

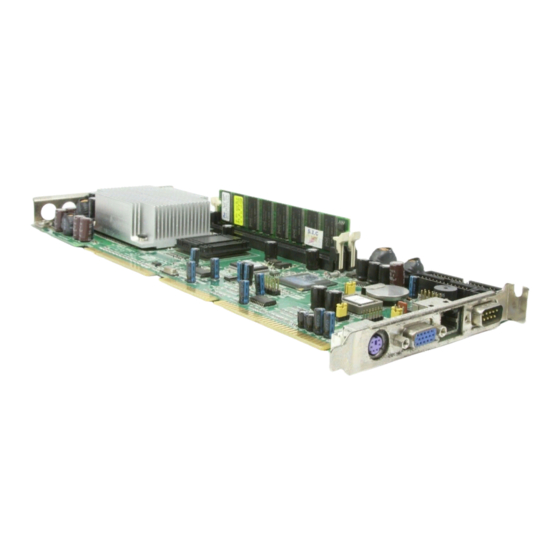

PCA-6004 Full-sized SBC with VIA C3 CPU,
VGA and Ethernet
Startup Manual

Packing List

Before you begin installing your card, please make sure
that the following materials have been shipped:
• 1 PCA-6004 single board computer
• 1 FDD cable
• 2 UDMA 66/100 HDD cables
• 1 printer (parallel port) and COM port cable kit
• 1 ivory cable for PS/2 keyboard and PS/2 mouse
• 1 USB cable (optional)
• This startup manual
• 1 driver CD-ROM with user's manual (in PDF format)
• Warranty certificate
If any of these items are missing or damaged, contact
your distributor or sales representative immediately.
Note 1: For detailed contents of this product, please
refer to the enclosed CD-ROM or disk (in
PDF format).
Note 2: Acrobat Reader is acquired to view any PDF
file. Acrobat Reader can be downloaded at:
www.adobe.com/Prodindex/acrobat/
readstep.html
(Acrobat is a trademark of Adobe.)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for the PCA-6003 series Rev. A1
Part No. 2002600410
Printed in Taiwan
p/n: 1701340703
p/n: 1701400452
p/n: 1701260305
p/n: 1700060202
p/n: 1700100170
1st. Edition
March 2002

Specifications

Standard SBC Functions
• CPU:VIA C3 800 MHz low power CPU with 128 KB L1
and 64 KB L2 cache
• BIOS: Award 2 Mb Flash memory BIOS
• System memory: Two 168-pin DIMM sockets
accepts up to 1 GB SDRAM
• Enhanced IDE interface: Supports up to four EIDE
devices. BIOS auto-detect, PIO Mode 3 or Mode 4,
UDMA 33/66/100 transfer
• FDD interface: Supports up to two FDDs
• Serial ports: Two serial RS-232 ports,
• Parallel port: One parallel port, supports
SPP/EPP/ECP mode
• Keyboard/mouse connector: Supports a standard
PS/2 keyboard and a PS/2 mouse
• Power management: Supports power saving modes
including Normal/Standby/Suspend modes.
• Watchdog timer: 63 level timer intervals
• USB: Two Universal Serial Bus ports
VGA/LCD Interface
• Controller: Chipset integrated high performance
VGA controller
• Display memory: Share system SDRAM up to 8 MB
Ethernet Interface
• Chipset: Realtek™ RTL8139 C
• Ethernet interface: PCI 10/100 Mbps Ethernet, IEEE
802.3U protocol compatible
• Connection: On-board RJ-45 connector
PCA-6004 Startup Manual 1
