Advantech PCA-6184 Startup Manual

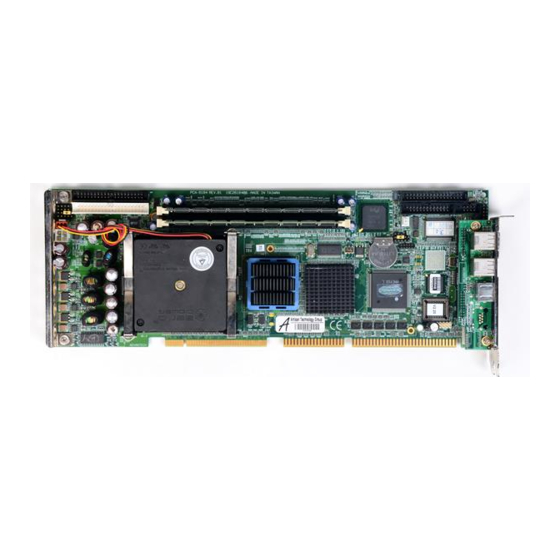

PCA-6184 Socket 478 Pentium 4 SBC with
VGA, Dual Ethernet and HISA
Startup Manual
Packing List
Before you begin installing your card, please make
sure that the following materials have been shipped:
• 1 PCA-6184 socket 478 Pentium 4 processor-based
single board computer
• 1 FDD cable
• 2 Ultra ATA 66/100 HDD cables
• 1 printer (parallel port) and
COM port cable kit
• 1 ivory cable for PS/2
keyboard and PS/2 (optional)
• 1 USB cable (optional)
• 1 single-slot bracket (optional)
• 1 PCA-6184 startup manual
• CD disc and manual (in PDF format)
• Warranty certificate
If any of these items are missing or damaged, contact
your distributor or sales representative immediately.
Note 1: For detailed contents of the PCM-6184,
please refer to the enclosed CD-ROM or disk
(in PDF format).
Note 2: Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at:
www.adobe.com/Prodindex/acrobat/read-
step.html (Acrobat is a trademark of Adobe.)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/nc
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for the PCA-6184 series Rev. A1.
Part No. 2002618411
Printed in Taiwan

Specifications

Standard SBC Functions
• CPU: Socket 478 for Intel® Pentium® 4, FSB 400MHz
• BIOS: Award 4 Mb Flash memory BIOS
• Chipset: Intel 845
p/n: 1701340703
• System Memory: Two 184-pin DIMM sockets accepts
p/n: 1701400452
• Enhanced IDE interface: Supports up to four EIDE
p/n: 1701260305
p/n: 1700060202
• FDD interface: Supports up to two FDDs
p/n: 1700100170
• Serial ports: Two serial RS-232 ports
p/n: 1962159010
• Parallel port: One parallel port, supports SPP/EPP/
• Keyboard/mouse connector: Supports one standard
• Watchdog timer: 255 level timer intervals
• USB: Four Universal Serial Bus ports
VGA/LCD Interface
• Chipset: ATI 3D Rage 128 Pro 4XL, 32 MB SDRAM
• Interface: AGP 4x

Ethernet Interface

• Chipset: Intel 82559
• Ethernet interface: Dual PCI 10/100 Mbps Ethernet,
• Connection: On-board RJ-45 connector x 2
Mechanical and Environmental
• Dimensions (L x W): 338 x 122 mm
• Power supply voltage: +5 V ± 12 V
• Power requirements: Typical, +5V: 7.40A,
• Operating temperature: 0 ~ 60°C (depending on CPU)
• Weight: 0.5 kg (weight of board)
2nd Edition
June 2002
up to 2 GB DDR
devices. BIOS auto-detect, PIO Mode 4, Ultra ATA 100/
66/33 transfer
ECP mode
PS/2 keyboard and a PS/2 mouse
IEEE 802.3U protocol compatible
+12V:320mA (Intel Pentium(R) 4 1.8GHz 256 MB
DDR266)
PCA-6184 Startup Manual 1
