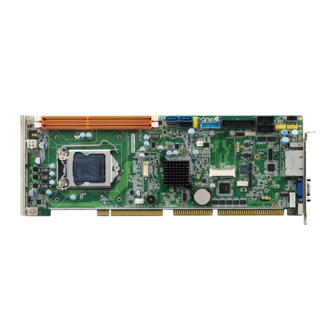

PCA-6028
LGA1150 Intel
Single Board Computer with DDR3/Dual GbE LAN
Startup Manual

Packing List

Before you begin installing your card, please make sure that
the following items have been shipped:
1. PCA-6028 PICMG 1.0 Single Board Computer
2. 1 x PCA-6028 Startup Manual
3. 1 x CD with utility
4. 2 x Serial ATA HDD data cables
5. 1 x Serial ATA HDD power cable
6. 1 x COM port cable kit
7. 1 x 4-port USB cable kit
8. 1 x keyboard and mouse Y cable
9. 1 x jumper package
10. 1 x warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note 1:
For detailed contents of PCA-6028, please refer
to the user manual in the enclosed CD-ROM (in
PDF format).
Note 2:
Acrobat Reader is required to view any PDF
file. Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/support/default.
aspx
This manual is for the PCA-6028 Series Rev. A3.
Part No. 2006602803
Printed in China
Core
i7/i5/i3/Pen tium
®
TM
4th Edition
October 2022
®

Specifications

General
• CPU: LGA1150 Intel
Core™ i7/i5/i3/Pentium
®
• BIOS: AMI 128 Mb SPI BIOS
• Chipset: Intel® H81
• System memory: Dual channel 2x 240-pin DDR3
1333/1600 8 GB per DIMM without ECC; max. capacity
up to 16 GB
• SATA ports: 1 x SATAII, 2 x SATAIII, 1 x mSATA
Note 1: SATA3.0: 600MB/sec; SATA2.0:300MB/sec
• Serial ports: Two RS-232 with pin headers
• Keyboard/mouse connector: Supports one standard
PS/2 keyboard and mouse connector and one external
6-pin header
• Watchdog timer: 255 level timer intervals
• USB 2.0: Up to 8 (6 x pin header, 1 x vertical type A, 1 x
rear in G2 SKU only)
• USB 3.0: 2x pin header
• GPIO: One programmable 8-bit GPIO pin-header
VGA Interface
• Chipset: Intel
HD graphics
®
• Shared system memory is subject to OS
Ethernet Interface
• Chipset Supports:
- LAN1: Intel
I217V
®
- LAN2: Intel
I210
®
• Connection: 2 on-board RJ-45 connectors with LED
indicators"
Mechanical and Environmental
• Dimensions: (L x W): 338 x 122 mm
• Power supply voltage: +12 V, +5 V, +5 VSB
• Power requirements:
Core™ i7-4790S@3.20GHz; 8GB DDR3 1600 2Rx8*2;
SATA HDD*1
Voltage: +12 V, +5 V, +3.3 V, +5 Vsb, -12 V, -5 V
Current: 4.94 A, 1.83 A, 0 A, 0.01 A, 0 A, 0 A
• Operating temperature: 0 ~ 60 °C (depending on CPU)
• Weight: 0.5 kg (weight of board)
PCA-6028 Startup Manual 1
