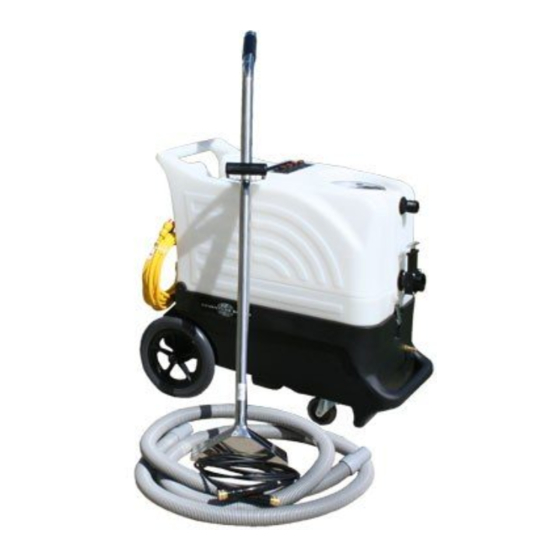

ADVANTAGE-400H
EXTRACTOR
240V
INFORMATION
&
OPERATING
INSTRUCTIONS
CAUTION: DO NOT OPERATE MACHINE UNTIL YOU HAVE READ
ALL SECTIONS OF THIS INSTRUCTION MANUAL
IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY
1. Always use a defoamer when foaming occurs to prevent vacuum motor damage.
2. Connect the machine to a properly grounded outlet, only.
3. Keep machine from rain and snow, extremes in temperatures, and store in a heated
location. Use the machine indoors. Do not use outdoors.
4. Use approved chemicals only. NO SOLVENTS.
5. Wear gloves or use rags when removing quick disconnects to prevent burns.
6. Never use water above 54º C /130º F in the solution tank.
1
5/10 revised 11/11 Form No. 56041942

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADVANTAGE-400H-240 and is the answer not in the manual?

Questions and answers

Related Manuals for U.S. Products ADVANTAGE-400H-240

Summary of Contents for U.S. Products ADVANTAGE-400H-240

  • Page 1 ADVANTAGE-400H EXTRACTOR 240V INFORMATION & OPERATING INSTRUCTIONS CAUTION: DO NOT OPERATE MACHINE UNTIL YOU HAVE READ ALL SECTIONS OF THIS INSTRUCTION MANUAL IMPROPER USE OF THE MACHINE WILL VOID THE WARRANTY 1. Always use a defoamer when foaming occurs to prevent vacuum motor damage. 2.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This machine is only suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offi ces other than normal residential housekeeping purposes. When using any electrical appliance, basic precautions should always be followed, including the following: NOTE: Read all instructions before using this machine.

  • Page 3: Parts And Service

    Call the distributor from whom you purchased this machine if you need parts and service. Be sure to specify the machine model. Have your serial number handy. Serial Number: __________________ Model: ADVANTAGE-400H-240 Purchase Date:_____________ Write the name and phone number of your distributor:...

  • Page 4: Recovery Tank

    SWITCH PLATE MODEL (1): This identifi es the model of your Advantage machine. MODEL VACUUM SWITCH (2): This push-button switch turns on the vacuum. The switch will illuminate when it is on. PUMP SWITCH (3): The pump switch will illuminate when it is activated, and it will turn on the pump. HEAT SWITCH (4): The heat switch will illuminate when it is activated and will turn on the heater.
  • Page 5 SET-UP & OPERATION: 1. Inspect the machine, hoses, and cleaning tools for cleanliness and completeness. 2. Screw the lid on the recovery tank. Close the drain gate. 3. Fill the holding tank with clear water. NOTE: although this machine is designed to supply instant hot water, the addition of warm water to the solution tank would increase heater effi...
  • Page 6 revised 11/11 FORM NO. 56041942 - ADVANTAGE 400H...
  • Page 7 ADVANTAGE 400H 240V Item Ref. No. Qty Description Item Ref. No. Qty Description 903USP Drain Gate TKC-6 Solution tank, white 187USP O-ring 17” Hose, pump inlet, 1/2” ID X 17” 187B Gasket 18” Hose, pump bypass, 3/8” ID X 18” 185USP Nut, 1-1/2”...

  • Page 8: Trouble Shooting

    ADVANTAGE 400 TROUBLE SHOOTING: IF THIS OCCURS CHECK THIS Solution tank is empty, or fi lter is plugged up. NO SPRAY Clogged spray tip. Pump not running. Valve on wand not operating. Solution hose not completely connected to hose or to machine. This pump motor runs on AC voltage, so it should start running as soon as you PUMP DOES NOT RUN turn on the switch.

This manual is also suitable for:

Advantage-400h series
