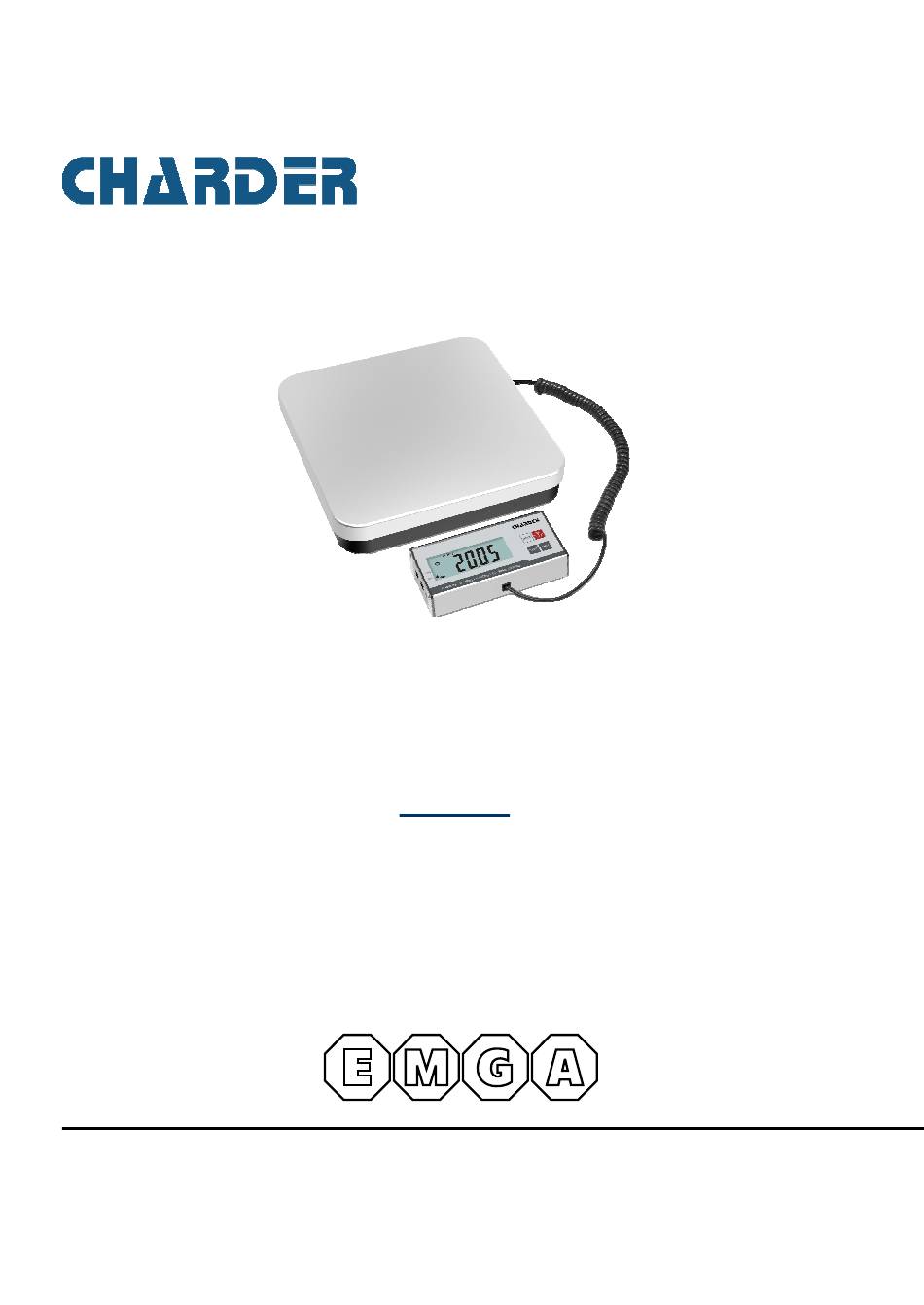

- Page 1 Platform Scale R260 User’s Manual Please read this manual carefully before operating your device and retain it for future reference. IN-00261 [REV001] 07/19...
-
Page 2: Table Of Contents
R260 Series CONTENTS INTRODUCTION ................2 Safety Precautions ................2 INSTALLATION ................3 Package Contents .................. 3 Parts Description................... 4 Selecting the Location ................4 Power Supply ..................4 Battery Power ..................5 OPERATION ................... 5 Keypad and Display Description ............5 Status Indicators ................... -
Page 3: Introduction
R260 Series INTRODUCTION This manual provides detailed instructions for the installation work, operation and maintenance instructions of the CHARDER R260 Scale, please read this manual thoroughly before installing and operating the scale. Safety Precautions Please follow these safety precautions: • Verify AC Adapter input voltage matches the local AC power supply. -
Page 4: Installation
R260 Series INSTALLATION Package Contents • R260 Scale • AC Power Adaptor • User’s Manual R260 Scale AC Power Adaptor User’s Manual IN-00261 [REV001] 07/19... -
Page 5: Parts Description
R260 Series Parts Description Stainless Steel Pan Key Pad LCD Display Selecting the Location Select a firm, vibration-free and horizontal location for the scale. Avoid locations with direct sunlight, excessive air current, heat sources, or rapid temperature fluctuations. Power Supply Connect the AC Adaptor to the AC mains supply. -
Page 6: Battery Power
R260 Series Battery Power The scale will automatically switch to battery operation if there is a power failure or the power cord is removed to provide uninterrupted scale operation. Note: When low battery is displayed, the scale will shut off after 30 seconds. -
Page 7: Status Indicators
R260 Series Status Indicators ICON Description Stability display → → → → 0← ← ← ← Zero setting activated Negative sign Display net weight Hold Display hold function kg / lb Currently chosen weight unit Keypad Description DESCRIPTION FUNCTION POWER ON / OFF... -
Page 8: Changing Units Of Measure
R260 Series Changing Units of Measure In weighing mode, use [UNIT] to display the next available measuring unit. Repeat process to scroll through all units. Performing TARE function Place an empty container on the scale and press [TARE]. The display will show a net value of “0”. -
Page 9: Troubleshooting
R260 Series Troubleshooting SYMPTOM POSSIBLE CAUSE REMEDY Battery discharged Replace the battery or use adapter Power cord not Check power cord plugged in properly connection and Scale does not turn plugged in properly into the power outlet. Other failure Have the scale... -
Page 10: Technical Data
R260 Series TECHNICAL DATA Specifications MODEL R260 Capacity 6 kg / 12 lb 15 kg / 30 lb 30 kg / 60 lb 60 kg / 120 lb 150 kg / 300 lb 5 g < 15 kg >10 g Graduation 2 g / 0.005 lb... -
Page 11: Disposal
R260 Series Disposal In conformance with the European Directive 2002/96 EC on Waste Electrical and Electronic Equipment (WEEE), this device may not be disposed of with domestic waste. This also applies to countries outside the EU, according to their specific requirements. -
Page 12: Warranty
R260 Series WARRANTY Charder scales are warranted against defects in material and workmanship for a period of one(1) year from the date of purchase. Please retain your receipt as proof of purchase. Warranty expiration on products returned without proof of purchase will be determined from the manufacturing date code or the date of shipment to the authorized dealer.
