INSTALLATION

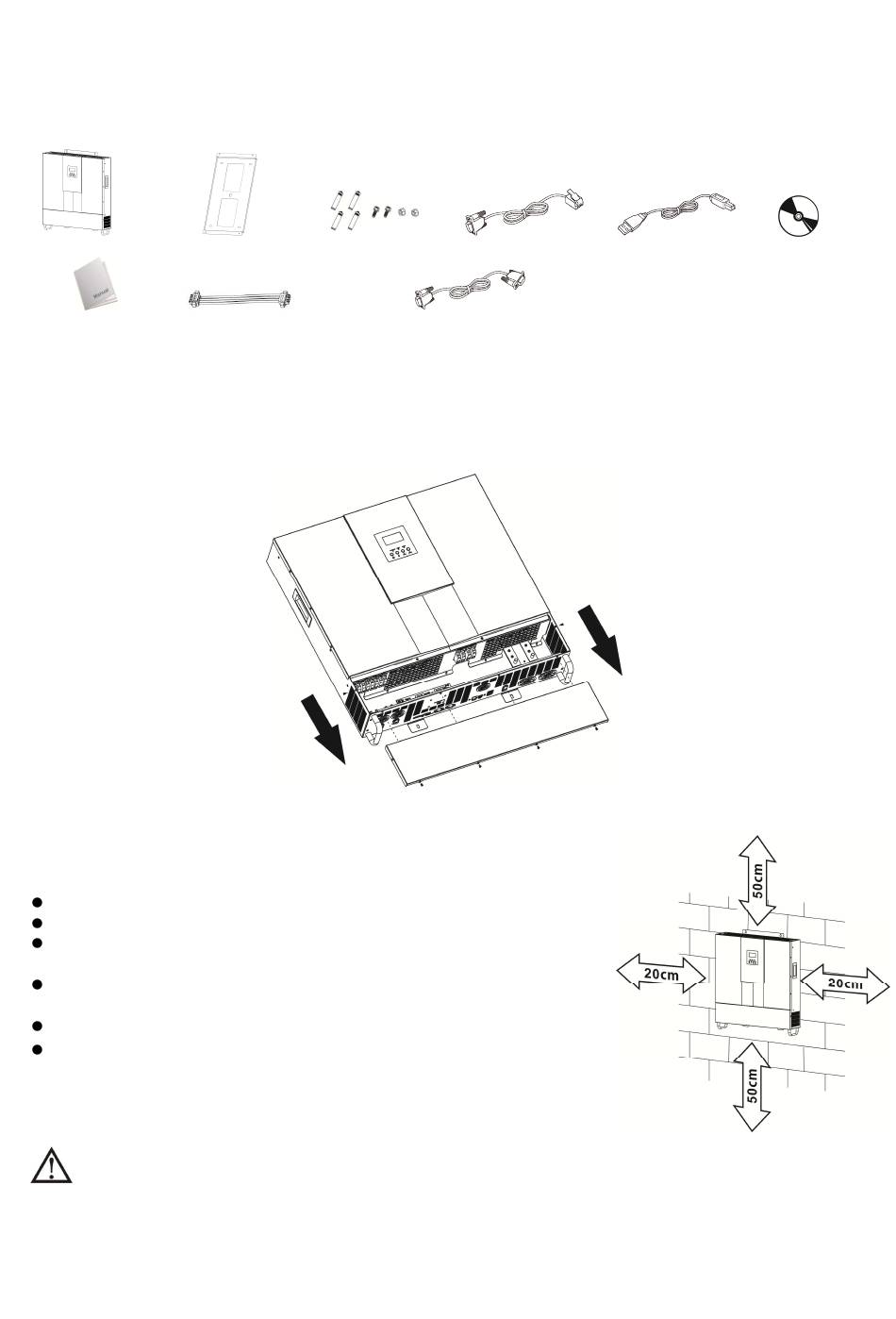

Unpacking and Inspection
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should
have received the following items inside the package:
The unit
Mounting plate
User manual
Current sharing cable
Preparation
Before connecting all wirings, please take off the cover of the bottom by removing the six screws as shown
below.
Mounting the Unit
Consider the following points before selecting where to install:
Do not mount the inverter on any flammable construction materials.
Mount this inverter on a solid surface
Install this inverter at eye level in order to read the LCD display at all
times.
The ambient temperature should be between 0°C and 55°C to ensure
optimal operation.
The inverter should be adhered to the wall vertically.
Be sure to keep other objects away and leave the space in a minimum
as shown in the right diagram to guarantee sufficient heat dissipation
and enough space for replacing wires.
SUITABLE FOR MOUNTING ON CONCRETE OR OTHER
NON-COMBUSTIBLE SURFACE ONLY.
Fixing screws
RS-232 cable
Parallel communication cable
4
USB cable
Software CD
