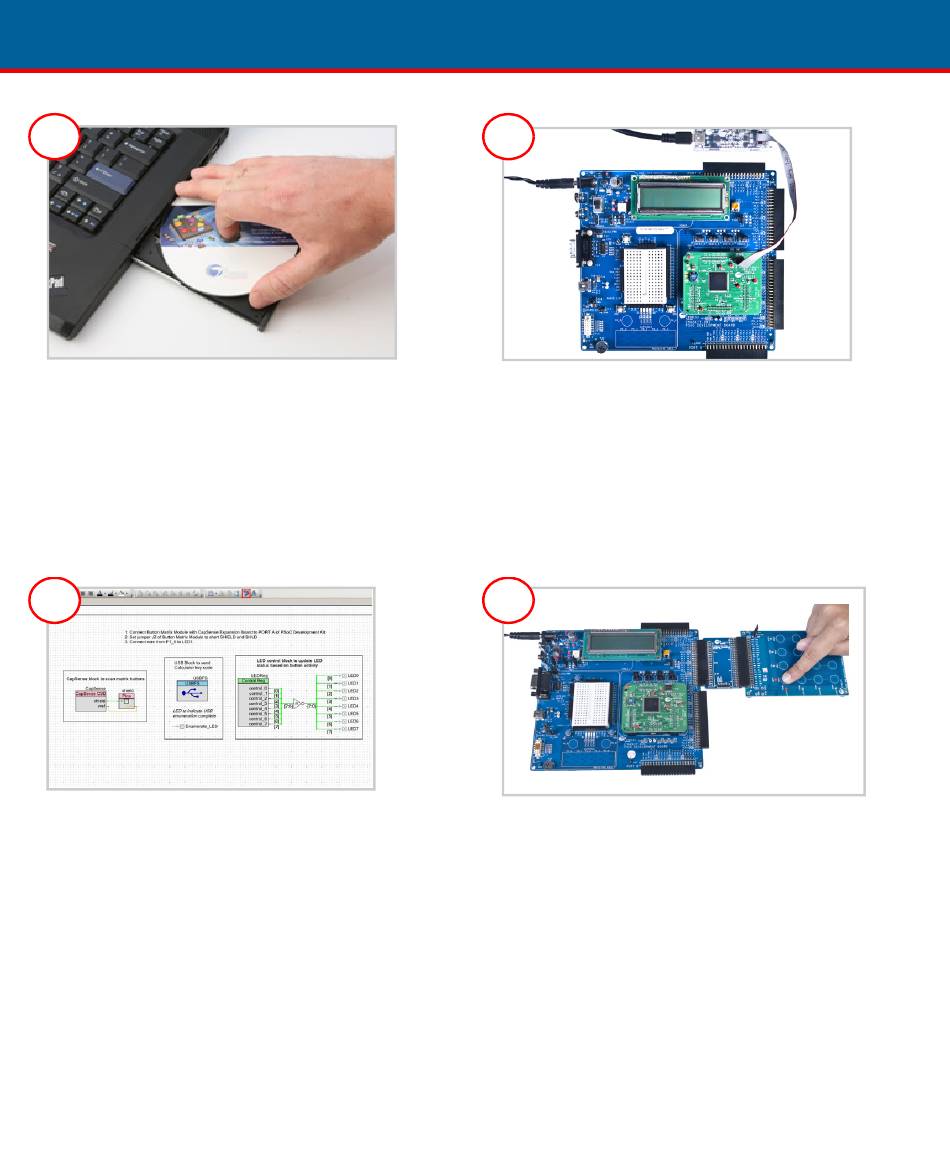

Cypress PSoC CapSense Quick Start Manual

1
Install Software
1. Insert the kit DVD.
2. Install PSoC Creator, PSoC Programmer,
and the kit project software.
3
Program the PSoC Device
1. Open BMM_USB_KIT-001 code example
from the PSoC Creator start page.
2. Click the Program icon in PSoC Creator to
program the board.
3. Unplug MiniProg3 and disconnect power
from the board.
4. Connect a jumper wire from P1[6] to LED1.
5. Connect a USB cable from the USB
connector J9 to your PC.
® ®
PS C C S
O AP ENSE
QUICK START GUIDE
EXPANSION BOARD KIT
2
Board Setup for PSoC Development Kit
1. Install the CY8C38 Family Processor
Module on the PSoC Development Kit.
2. Connect MiniProg3 to the CY8C38
Family Processor Module.
3. Ensure default settings are configured
and power the PSoC Development Kit.
4
Test PSoC CapSense Expansion Board Kit
1. Connect J1 of PSoC CapSense Expansion
Board kit to Port A of PSoC Development
Kit; connect J2 to Matrix Button Module
Kit.
2. Power the PSoC Development Kit and wait
for USB Enumeration LED, LED1 to turn
on. Refer to UG in install location
<Install_Directory>:\PSoC CapSense
EBK\<version>\Documentation for more
details
3. Touch a button; the corresponding row and
column LEDs turn on.
