accumulated DTC of the tested vehicle if any. If
the vehicle has no accumulated DTC, the
screen will display a message as shown in
Figure 15.
Click [OK] to return to the function menu.

Erase DTC

Click [ERASE DTC] in the function menu. X-431
will display a message as shown in Figure 16.
Click [YES] to perform erasing, click [NO] to
cancel erasing and return. After erasing, the
screen will display a message as shown in
Figure17.

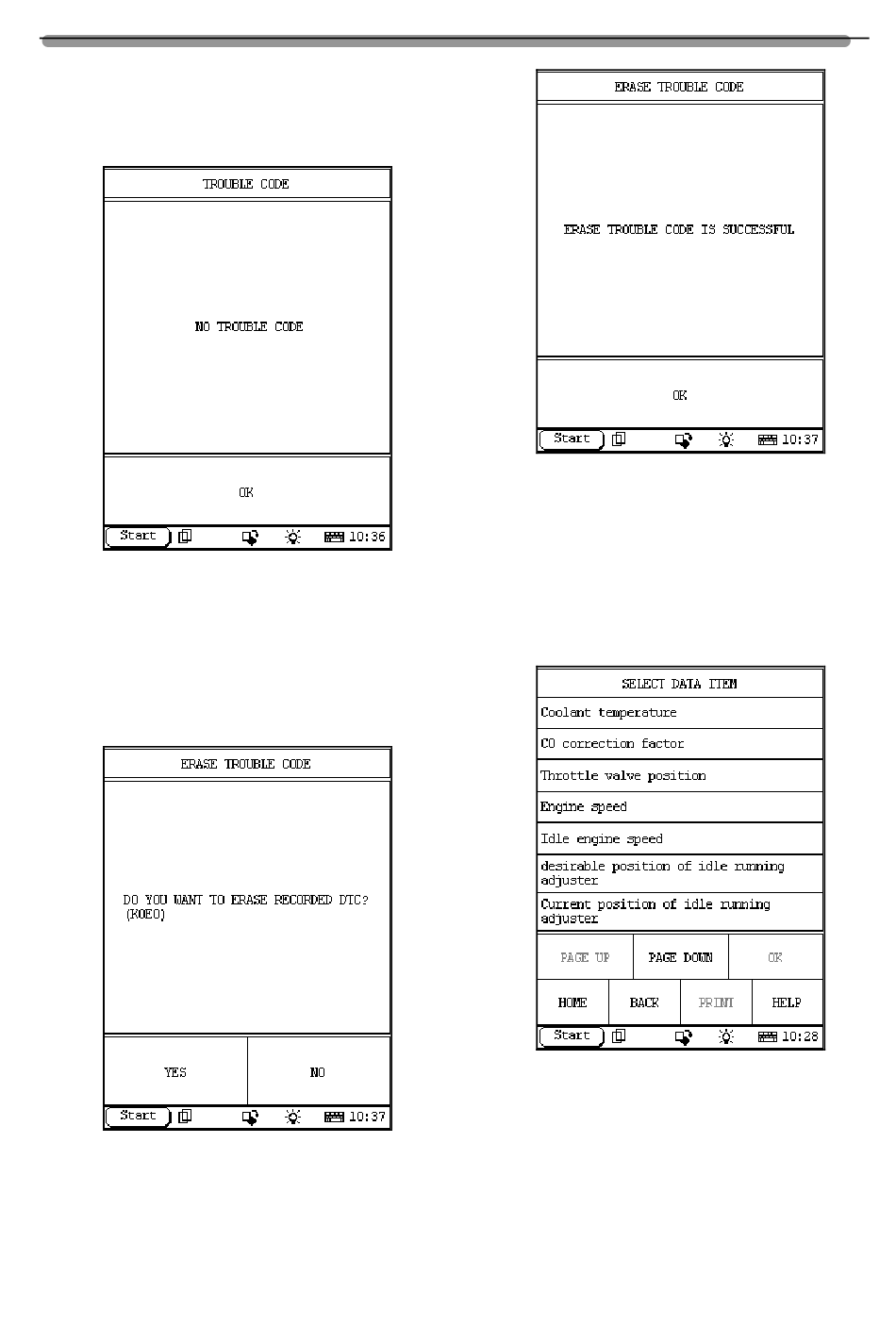

Figure 15
Figure 16
X-431 Russia VAZ Diagnosis
Click [OK] to return to the function menu.

Data Stream

Click [DATA STREAM] in the function menu.
X-431 will display the data stream items as
shown in Figure18.
Click [PAGE DOWN] button to display the data
stream items on the next page. To view the data
stream live values, click the corresponding
items to select as shown in Figure 19.
6
Figure 17
Figure 18
