The test procedures of the four systems are
similar, here we only gives the test procedures

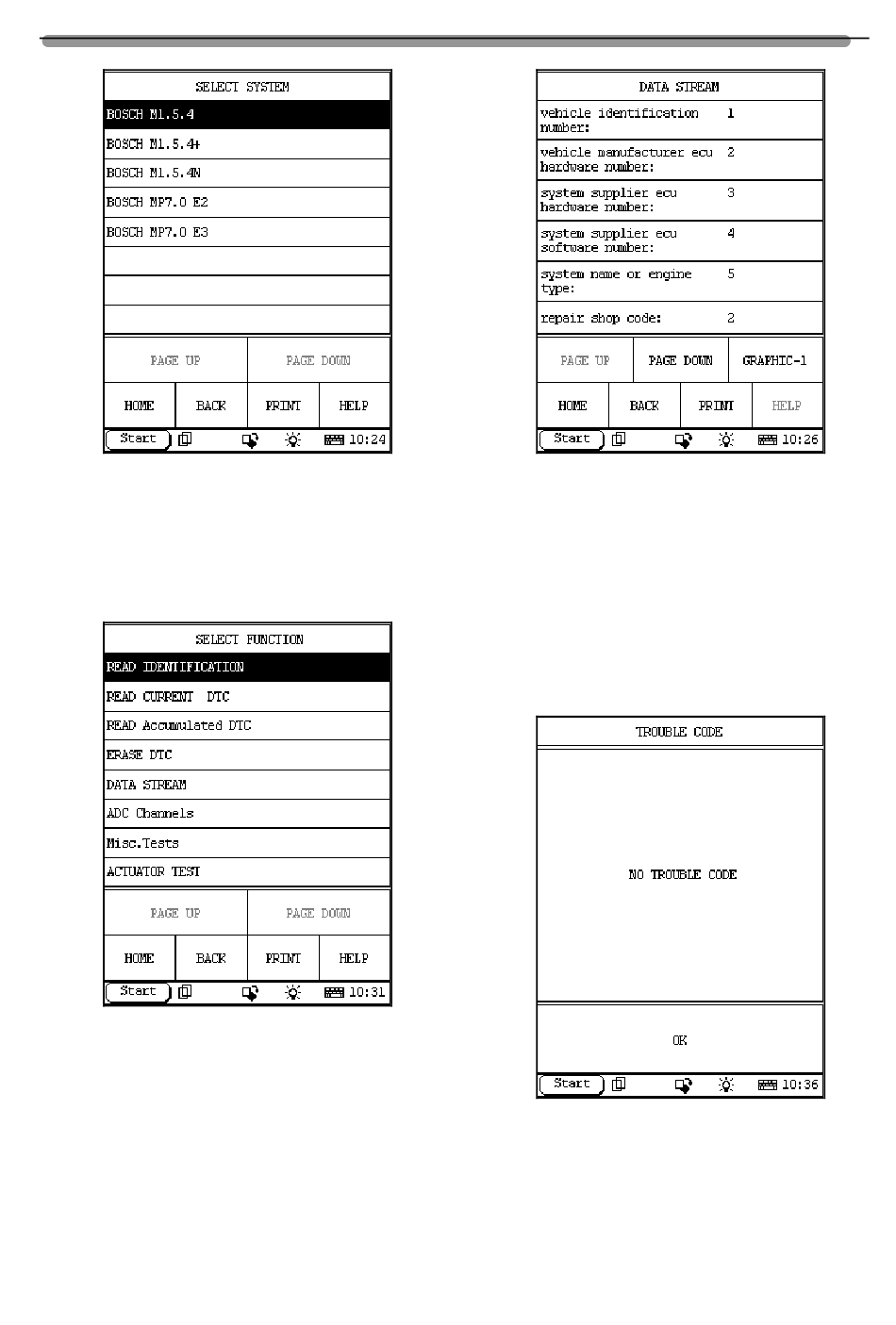

of [BOSCH M 1.5.4N]. Click [BOSCH M1.5.4N],
the screen will display the corresponding
function menu as shown in Figure 12.
User can perform the desired function by
clicking corresponding item on the function
menu.

Read Identification

Click [READ IDENTIFICATION] in the function
menu. X-431 will display the data stream
related to the vehicle identification as shown in
Figure 13.
Figure 11
Figure 12
X-431 Russia VAZ Diagnosis
Click [PAGE DOWN] to view the next page.

Read Current DTC

Click [READ CURRENT DTC] in the funct i on
menu. The screen will display the current DTC
of the tested vehicle if any. If the vehicle has no
current DTC, the screen will display a message
as shown in Figure 14.
Click [OK] to return to the function menu.

Read Accumulated DTC

Click [READ ACCUMULATED DTC] in the
function menu. The screen will display the
5
