Operation

Entering Function Menu

After connection, press [POWER] key to start
X-431.
After starting the main unit, press [HOTKEY] (or
click [ S tart] button on the main menu, and
select [GAG]→[GD Scan] on the pop-up menu).
The screen will display the home page of
vehicle diagnosis as shown in Figure 04.
Button descriptions:
? ? [QUIT]: to exit the diagnostic program.
? ? [BOX INFO.]: to display hardware and
software version of SMARTBOX.
? ? [HELP]: to display help information.
? ? [START]: to start diagnosis.
Click [ S TART] button, the screen will display
the vehicle make menu as shown in Figure
05.

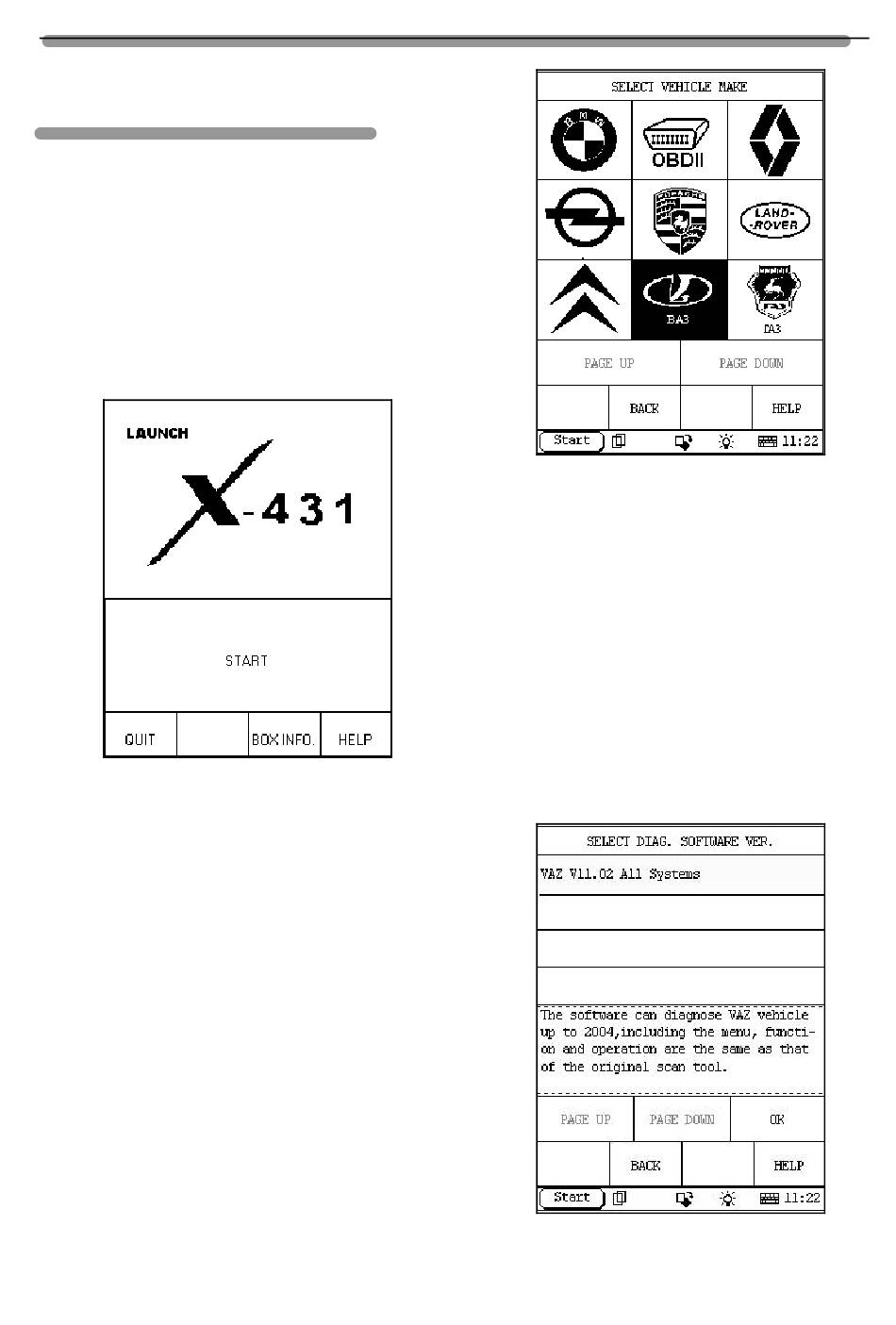

Figure 04
X-431 Russia VAZ Diagnosis
Button descriptions:
? ? [BACK]: to return to the previous
interface.
? ? [PAGE UP]: to display the previous page,
it is inactive if the current page is the
first page.
? ? [PAGE DOWN]: to display the next page,
it is inactive if the current page is the
last page.
? ? [HELP]: to display the help information.
Click the icon of VAZ on the vehicle make menu.
The screen as shown in Figure 06 will appear.
Click [VAZ V11.02 all system]. The screen will
3
Figure 05
Figure 06
