After selecting, click [OK] to display the live
data stream.

Misc. Test

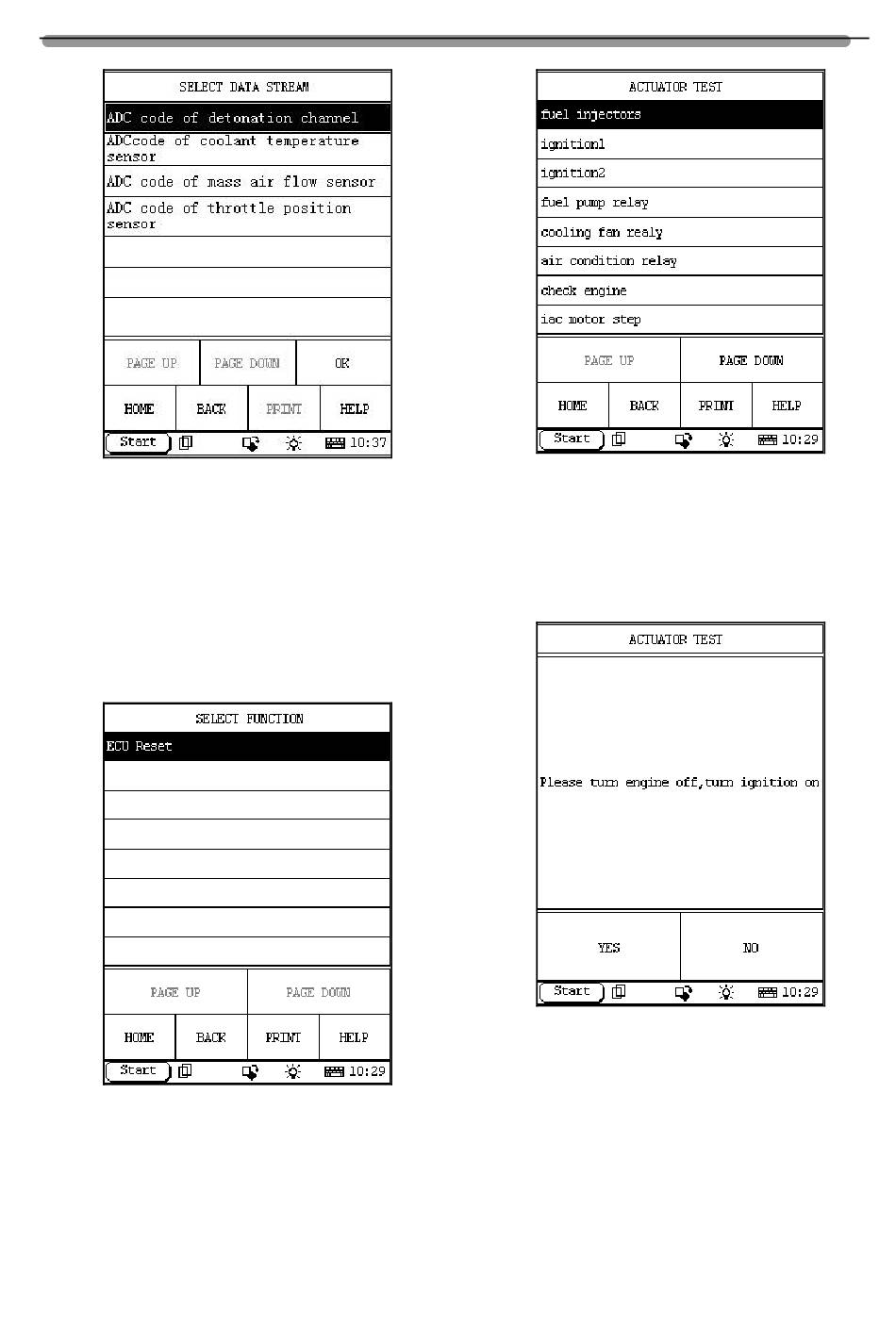

Click [MISC. TEST] in the function menu. X-431
will display the sub-function menu as shown in
Figure 23.
Click [ECU reset] to reset the ECU.

Actuator Test

Click [ACTUATOR TEST] in the func tion menu.
X-431 will display actuator menu as shown in
Figure 24.
Figure 22
Figure 23
X-431 Russia VAZ Diagnosis
Click [PAGE DOWN] button to display the
actuator items on the next page. To perform
actuator test, click the corresponding items. For
example, click [ F uel i n jector], the screen will
display an interface as shown in Figure 25.
Turn off the engine and turn on the ignition
switch follow the tips on the screen, and then
click [YES]. The screen will display an interface
as shown in Figure 26.
8
Figure 24
Figure 25
