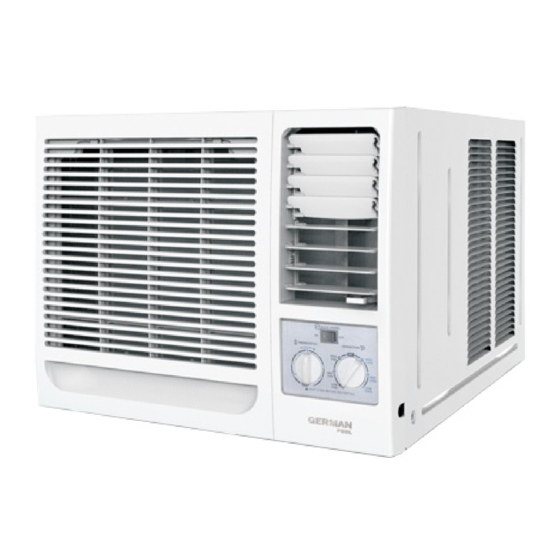

Introduction For mechanical control model Front Cover Air inlet grille(Indoor) Cabinet Air outlet grille(Indoor) Air inlet grille(Outdoor) Vent Lever Control Panel Air filter Note The fig ures in this manual are based on the external view of a standard model. Consequently, the shape may differ from that of the air conditioner you have selected.
Operating Introduction For mechanical control model Operation The mode knobs control fan speeds and cooling speeds. To set desired cooling temperature, simply rotate the mode knob dial to the appropriate setting. AUTO SWING Switch When the Swing switch is turned to the "ON " positio n, the vertical louvers automatically oscillate sweeping the cold air for comfortable cooling.
Electrical Specifications 1. All wiring must comply with local and national electrical codes and must be installed by a qualified electrician. If you have any questions regarding the following instructions, contact a qualified electrician. 2. Check available power supply and resolve any wiring problems BEFORE installing and operating this unit.
Installation Instructions Remove all the shipping parts before installation. LOCATION S elect a location that can support the weight of the air conditioner and one that will not cause increased operation noise and vibration. Direct sunlight is unfavorable for efficient cooling. S elect a place where there is no obstacles near the air inlet and outlet.
Page 7
Installation Instructions CAUTION T he installation parts must be strong against corrosion,especially in case the air conditioner will be installed near the sea or hot spring. Do not install air conditioner in the place where inflammable gas leaks are a possibility.
Page 8
Installation Instructions 1) Remove the front panel. (F ig.5) Remove the air filter. (F ig.6) Remove screw at the botton of the front panel. (F ig.7) Open the panel cover. F ig.5 2) Remove the screws fix the chassis-fixing board and cabinet. Some models have two more screws on the back of the cabinet.
Care and Maintenance AIR FILTER The air filter should be washed at least once a month. lf the air filter remains full of dust, the air flow will decrease and the cooling capacity will be reduced. The filter is behind the cover and to be pulled out from right hand side. Wash the air filter with water and detergent.
Troubleshooting Guide Never use hot water above 50 ,benzine,gasoline,acid,thinner or brush to wipe off dirt because they will damage the plastic surface and the coating. LONG OFF PERIOD MAINTENANCE Operate the fan alone ("LOW FAN"or"HIGH FAN") for half a day to dry out the inside of the unit.
WAC-418 Warranty Terms & Conditions 保用條款 Under normal operations, the product will receive a 1-year 此保用提供德國寶產品之機件在正常使用下一年 full warranty provided by German Pool (effective starting 保用(自購買日起計算)。 from the date of purchase). 任何塑膠附件及輔助裝置。 Plastic parts and accessories Customer Service & Repair Centre 客戶服務及維修中心...
