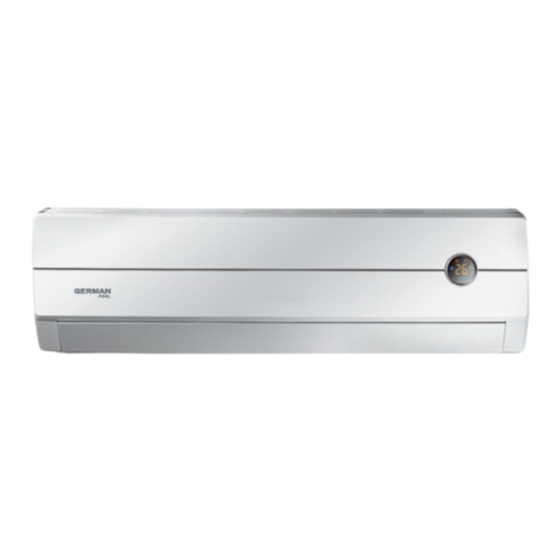

Wall-Mount Split Type Air Conditioner
在 使 用 之 前 請 詳 細 閱 讀 「 使 用 說 明 書 」及「 保 用 條 例 」 ， 並 妥 為 保 存 。
Please read these instructions and warranty information carefully
before use and keep them handy for future reference.
掛 牆 分 體 式 空 調
SC-09
SC-12
FAN
OPER
C
ON
ON / OFF
MODE
FAN
SWING
CLOCK
TIMER ON
BLOW
TEMP
TIMER OFF
TURBO
SLEEP
LIGHT
( 附 遙 控 器 With Remote Control )
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for German pool SC-09
Summary of Contents for German pool SC-09

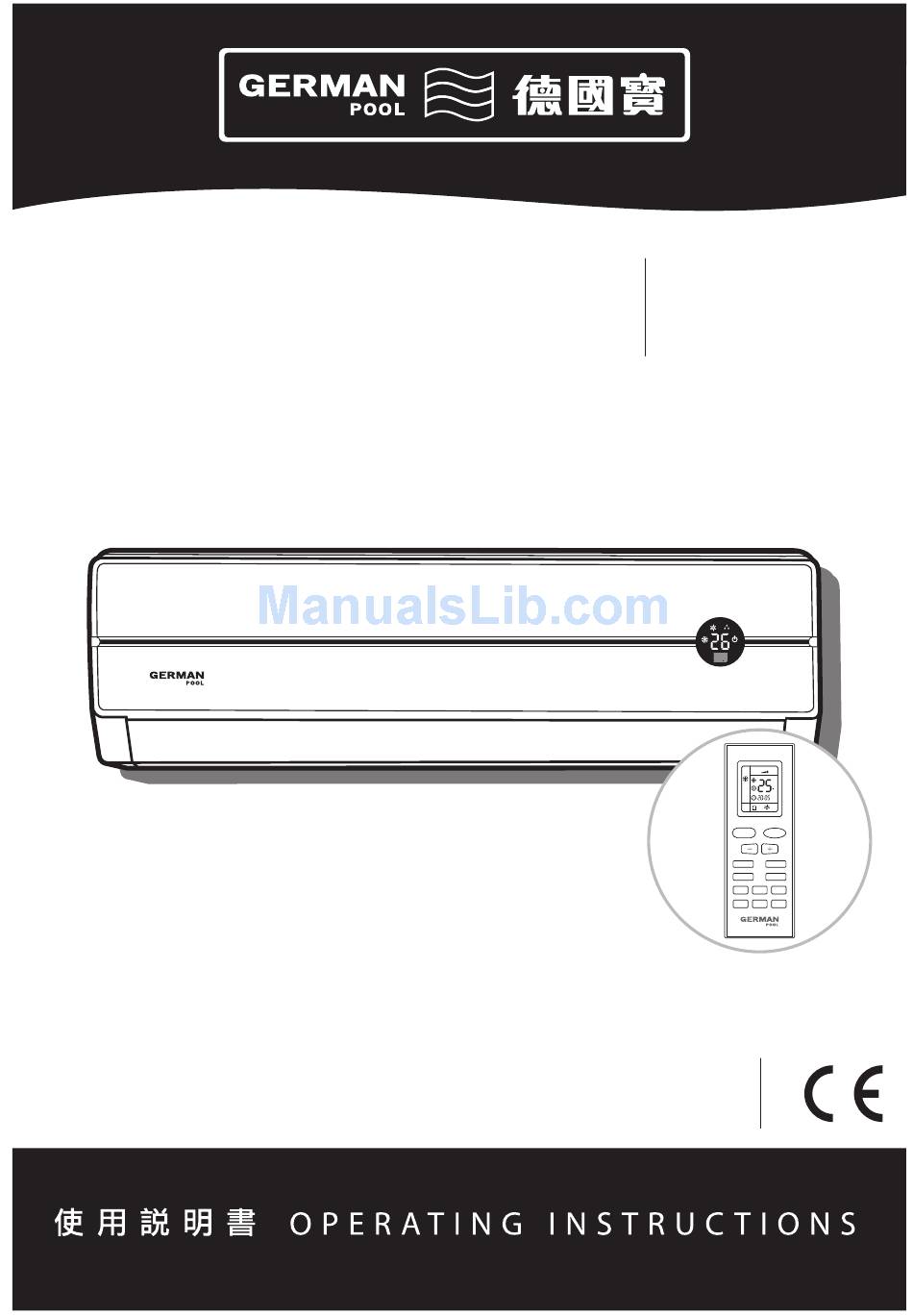

- Page 1 SC-09 掛 牆 分 體 式 空 調 Wall-Mount Split Type Air Conditioner SC-12 OPER ON / OFF MODE SWING CLOCK TIMER ON BLOW TEMP TIMER OFF TURBO SLEEP LIGHT ( 附 遙 控 器 With Remote Control ) 在 使 用 之 前 請 詳 細 閱 讀 「 使 用 說 明 書 」及「 保 用 條 例 」 ， 並 妥 為 保 存 。...
-
Page 3: Table Of Contents
CONTENTS Operation and maintenance ........1 ■ Notices for operation ........3 ■ Notices for use ■ ......Names and functions of each part ■ ......Operation of wireless remote control ■ ........11 Emergency operation ■ ........12 Clean and care ■ ........14 Troubleshooting Installation service ■... -
Page 5: Operation And Maintenance Notices For Operation
Operation and maintenance-notices for operation ★ ★ ★ Select the most appropriate temper- Be sure to pull out the power plug Earth: The ground be when not using the air conditioner connected! ature. for a long time. Keep room cool- er than outside about 5 degree. - Page 6 Notices for operation ★ The airflow direction can be adjusted appro- ★ If the supply cord is damaged, it must be replaced priately. At operating, adjust the vertical airflow by the manufacturer or its service agent or a direction by adjusting the louvers of upward/do- similarly qualified person in order to avoid a wnward direction.
-
Page 7: Notices For Use
Notices for use Working principle and special functions for cooling Principle: Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that indoor ambient temperature decreased, its cooling capacity will increase or decrease by outdoor ambient temperature. Anti-freezing function: If the unit is running in COOL mode and in low temperature, there will be frost formed on the heat exchanger, when indoor heat exchanger temperature decreased below 0... - Page 8 Notices for use Working temperature range Indoor sideDB/WB( Outdoor sideDB/WB( Maximum cooling 32/23 43/26 21/15 Minimum cooling 21/- Maximum heating 27/--- 24/18 Minimum heating 20/--- -5/-6 The operating temperature range (outdoor temperature) for cooling unit is 21℃ ~ 43℃； for cooling and heating unit is -5℃ ~ 43℃. Working temperature range Indoor sideDB/WB( Outdoor sideDB/WB(...
-
Page 9: Names And Functions Of Each Part
Names and functions of each part Indoor unit Air in ⑴ ⑶ ⑺ ⑹ ⑷ Air out ⑸ The pattern in displayer： ⑵ ：Cool ：Dry Wireless Power cable ⑴ remote control ：Fan ：Heat Remote control ⑵ ： Front panel ⑶ ：Set temp. -
Page 10: Operation Of Wireless Remote Control
Operation of wireless remote control Names and functions of wireless remote control Note: Be sure that there are no obstructions between receiver and remote controller; Don't drop or throw the remote control; Don't let any liquid in the remote control and put the remote control directly under the sunlight or any place where is very hot. -
Page 11: Names And Functions Of Wireless Remote Control
Operation of wireless remote control Names and functions of wireless remote control Notice: This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the corresponding button on the remote controller that the unit will keep the original running status. - Page 12 Operation of wireless remote control Names and functions of wireless remote control Notice: This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model dosen't have, if press the corresponding button on the remote controller that the unit will keep the original running status.
- Page 13 Operation of wireless remote control Guide for operation- General operation 1. After powered on, press ON/OFF button, the unit will start to run.(Note: When it is powered on, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode. 3.
- Page 14 Operation of wireless remote control ★ About lock Press +and - buttons simultaneously to lock or unlock the keyboard. If the remote controller is locked, the icon will be displayed on it, in which case, press any button, the mark will flicker for three times.
-
Page 15: Emergency Operation
Emergency operation Displayer indicator light control of indoor unit It's a special selective button for the users ,who are not accustomed to the light at sleeping. Get the displayer indicator light on: When setting the light function,the mark will ● display on the remote controller screen by pressing this button. -
Page 16: Clean And Care
Clean and care Caution Turn power off and pull out the power plug before cleaning air conditioner, or it may cause electric ● ● shock. Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause an ●... - Page 17 Clean and care Check before use ① Be sure that nothing obstructs the air outlet and intake vents. ② Check that whether ground wire is properly connected or not. ③ Check that whether the batteries of air conditioner are changed or not. ④...
-
Page 18: Troubleshooting
Troubleshooting CAUTION Don't attempt to repair the air conditioner by yourself, it can cause an electric shock or fire. Please check the following items before asking for repair, it can save your time and money. Phenomenon Troubleshooting Not operate immediately when the air Once the air conditioner is stopped, it will ●... - Page 19 Troubleshooting Phenomenon Troubleshooting Has the power been shut down? ● The unit can not run. Is power plug loosed? ● Is the circuit protection device tripped off or not? ● Is voltage higher or lower? ● (Tested by professionals) Breaking off Is the TIMER correctly used? ●...
- Page 20 Troubleshooting Phenomenon Troubleshooting Indoor unit cannot deliver air. In HEAT mode, when the temperature of indoor ● heat exchanger is very low, that will stop deliver air in order to prevent cool air. (Within 2min) In HEAT mode, when the outdoor temperature ●...
-
Page 21: Notices For Installation
Notices for installation Important Notices The unit installation work must be done by qualified personnel according to the local rules and this manual. Before installation, please contact with local authorized maintenance center, if unit is not installed by the authorized maintenance center, the malfunction may not solved, due to discommodious contacts. - Page 22 Notices for installation Outdoor Unit Installation Position Selection Select a location from which noise and outflow air emitted by unit will not inconvenience neighbors, animals, plants. Select a location where there should be sufficient ventilation. Select a location where there should be no obstructions cover the inlet and outlet vent. The location should be able to withstand the full weight and vibration of the outdoor unit and permit safe installation.
- Page 23 Notices for installation Earthing requirements 1. Air conditioner is type I electric appliance, thus please do conduct reliable earthing measure. 2. The yellow-green two-color wire in air conditioner is earthing wire and cannot be used for other propose. It cannot be cut off and be fix it by screw, otherwise it would cause electric shock.
-
Page 24: Installation Dimension Diagram
Installation dimension diagram Installation dimension diagram Space to the ceiling Above Space to the wall Above Above Space to the wall Above Above Air outlet side Space to the floor The dimensions of the space necessary for correct ● installation of the appliance including the minimum permissible distances to adjacent structures Space to the obstruction Air inlet side... -
Page 25: Install Indoor Unit
Install indoor unit Install the rear panel 1.Always mount the rear panel horizontally. Due to the water tray of indoor unit has been adopted the both-way drainage design, the outlet of water tray should be adjusted slightly down when installing, that is taking the outlet of the water tray as the center of a circle, the included angle between the evaporator and level should be 0 or more, that is good for condensing water drainage. -
Page 26: Install The Indoor Unit
Install indoor unit NOTE: When connecting the electric wire if the wire length is not enough, please contact with the authorized service shop to buy a exclusive electric wire that is long enough and the joint on the wire are not allowed. The electric wiring must be correctly connected, wrong connection may cause spare parts ●... -
Page 27: Install Outdoor Unit
Install outdoor unit Electric wiring Disassemble the handle on the outdoor unit right side plate. Handle Take off cord anchorage. Connect and fix power connect 、 、 05、 09 12K、 、 、 05、 Cool only type Heat pump type: cord (for cooling and heating unit,connect and fix power N(1) 2 N(1) connect cord and signal control wire)to terminal block. -
Page 28: Check After Installation And Test Operation
Check after installation and test operation Check after installation Items to be checked Possible malfunction Has it been fixed firmly? The unit may drop, shake or emit noise. It may cause insufficient cooling(heating) Have you done the refrigerant leakage test? capacity It may cause condensation and dripping. -
Page 29: Installation And Maintenance Of Healthy Filter
Installation and Maintenance of Healthy Filter Installation Instructions 1. Forcibly pull the panel for a specific angle from the two ends of the front panel according to the arrow direction. Then pull the air filter downwards to remove it. (See Fig.a) Fig. - Page 31 SC- 09 SC-12...
- Page 32 66129908344 SC-SERIES-M-11(1)
