INSTALLATION INSTRUCTIONS
for 1655 Locker Lock
FOR ASSISTANCE, CONTACT SARGENT AT 800-727-5477 or www.sargentlock.com
Tools
#2 Phillips Head Screwdriver
Door Preparation
1. Prepare reinforced door and frame to template 4696.

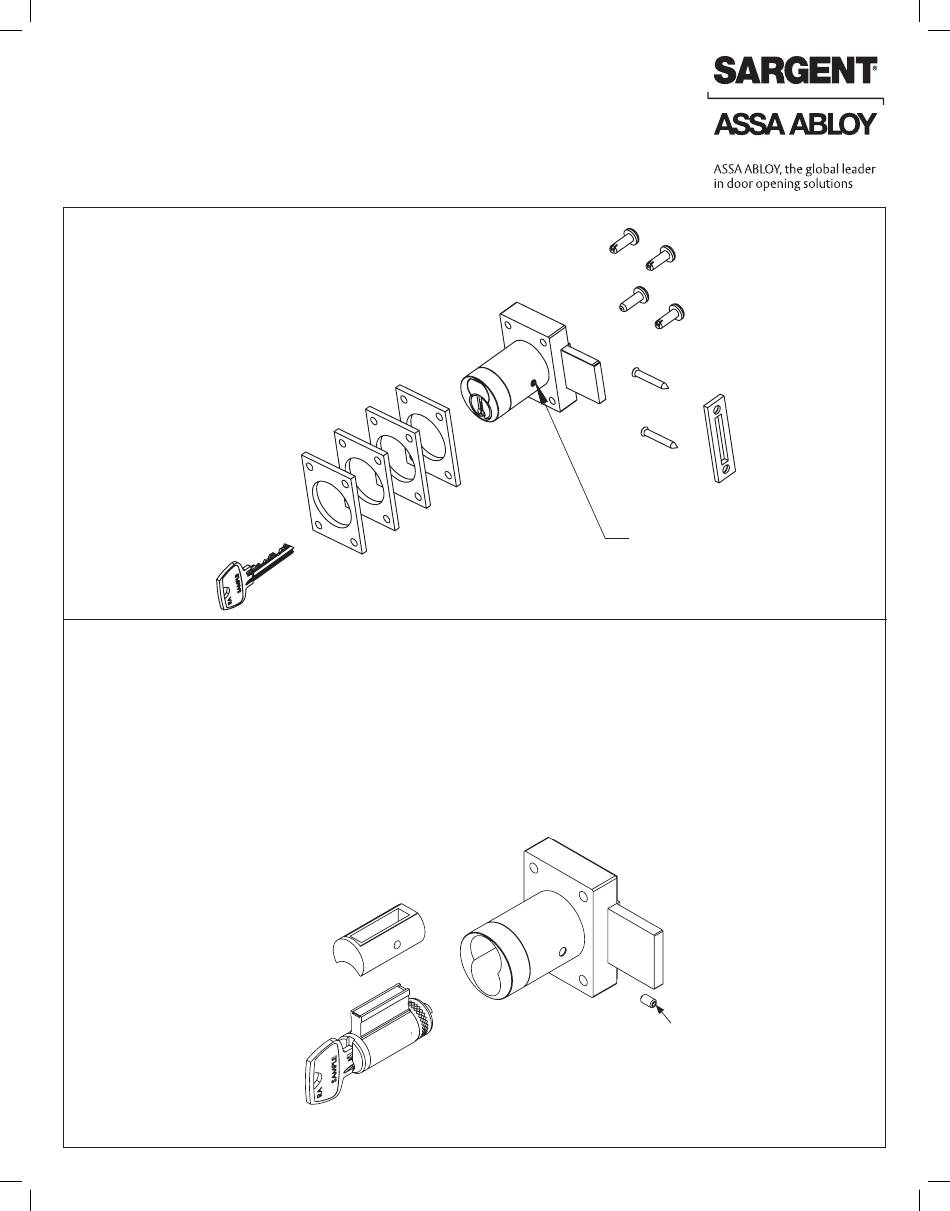

Installation
Insert locker lock into prepared door and secure with 4 screws provided.
For doors less than 1-1/2" thick use 1/8" spacers provided on doors down to 1" thick to conceal cylinder
retaining set screw. Secure strike with screws provided.
Re-pinning instructions
2. To re-pin cylinder remove lock from door.
Using 2 mm Allen wrench remove cylinder retaining set screw as shown.
Insert key and turn 90º CW and remove key to extract cylinder and retainer from lock.
Remove retainer from cylinder and re-pin as typical dead bolt cylinder.
Reverse steps to reassemble.
A8101A.indd 1
Be sure set screw is not
exposed after assembly
to door
2 mm
