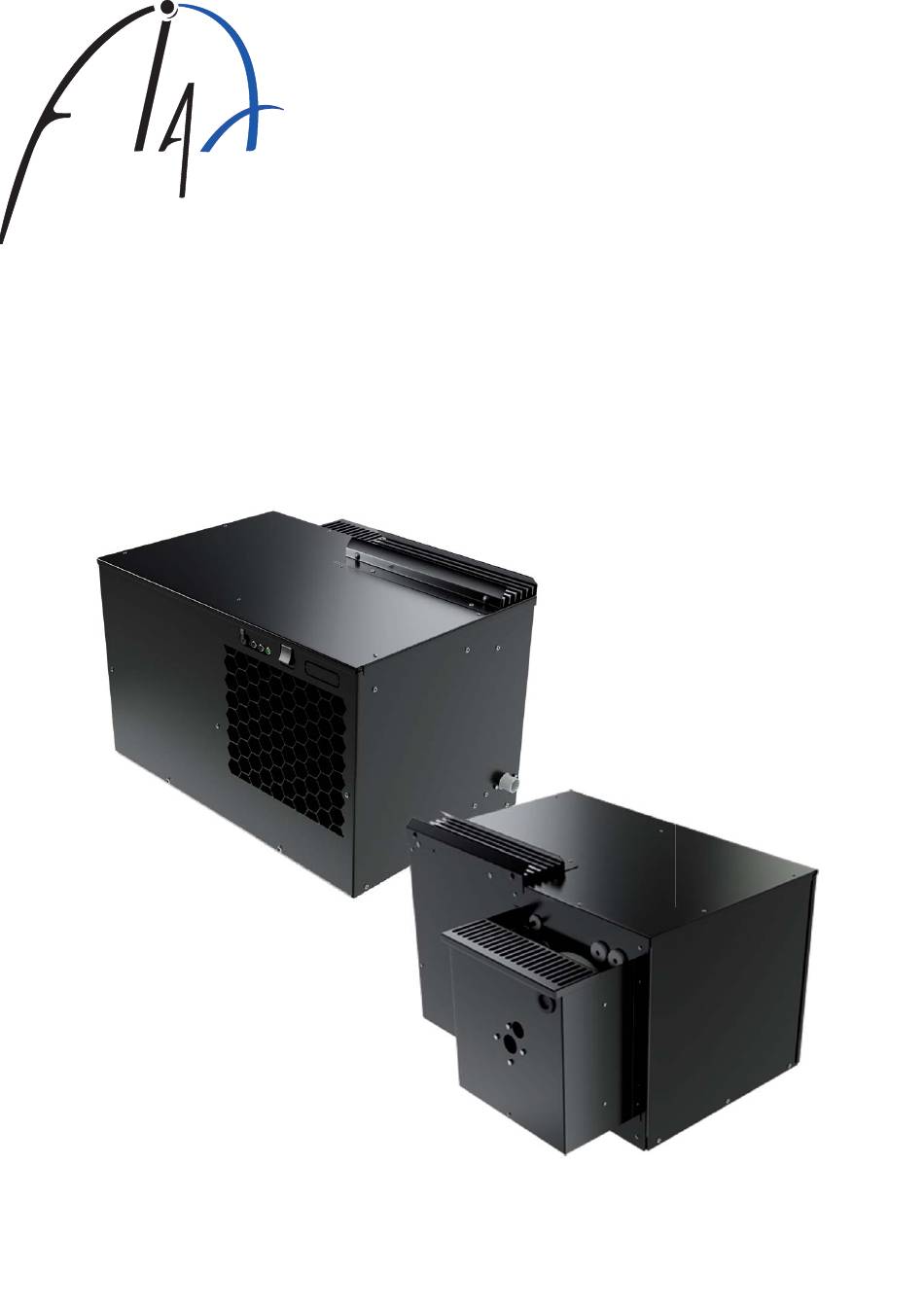

- Page 1 ® INDUSTRIE France Installation Manual MPC Genesis - Vintage Les caractéristiques données dans cette fiche technique peuvent évoluer sans avis préalable, avec les améliorations que "FRIAX Industrie" entend toujours apporter à GB-NT-MPCA-0218 sa production.
-
Page 2: Contents Of The Package
Contents of the package Genesis - Vintage Thank you for choosing a FRIAX's Monobloc system to control the aging of your wine. Take the me to read this manual. It will help you understand the steps to install and adjust the MPC series. -
Page 3: Données Techniques
MPCA Accessories Genesis - Vintage Monobloc FRIAX comes with - A box with wireless remote, table stand for remote control and two ba eries - A flexible drain tube Ø 16 2m length - A bag containing screws fixing brackets on the air condi oner, this leaflet and a fi ng... - Page 4 MPCA Dimensions Genesis - Vintage Power Supply Regulation LED + synchronization button Evaporator air inlet Condenseur air outlet Evaporator air outlet Condensor air inlet Opera ng principal Cellar 12°C Evaporator Outside 28°C Condenser...
-
Page 5: Installation
MPCA Installation Genesis - Vintage Position of the opening in the bottom of the cabinet... - Page 6 MPCA Installation Genesis - Vintage 480 mini 570 between cleat...
- Page 7 MPCA Installation Genesis - Vintage Connec on of the drain Only units not equipped with the KBEC op on (condensate evapora on pan kit) must be connected to a drain. Connect the drain • Connect the drain tube (Ø 16) to the end of the elbow with the supplied collar.
- Page 8 MPCA Wirless remote control Genesis - Vintage Power supply: 2 x 1.5V (AAA) provided The remote control could be installed in any room. Its maximum range is 100m in a completely open area. This distance could be extremly reduced by thickness of walls and the loca on of the cellar.
-
Page 9: Wireless Remote
MPCA Wireless remote Genesis - Vintage 7 8 9 Navigation key Navigation key Validation key Start key -Red : heating mode Menu key Stand by -Green : cooling mode Return Stop -Flashing red : Alarm Radio frequency signal Configuration type Key lock indicator Temperature or humidity indicator (option) Battery charge level indicator... -
Page 10: First Start
MPCA First start Genesis - Vintage Step I - Set the cellar fan speed Remarks Access to Parameters Display Handling menu Even if the screen is blank Press Login with Se ng the See below the value Change the value with for 6 seconds speed evapora- set according to the... - Page 11 MPCA Settings: temperature and humidity * Genesis - Vintage Step III - Set the cellar temperature and humidity Se ng Handling Display Remarks Displays the current value Press of the setpoint tempera- ture For 2 seconds Flashing Change the value with Displays the value of the desired setpoint tempera- ture...
- Page 12 MPCA User menu Genesis - Vintage func ons Handling Views Remarks The display alternately Display the tempera- shows the value of the Press ture or humidity of the temperature and humidity cellar (Only available on Vintage model) The fan switches to low Put the fan in the cellar Press speed for 10 minutes...
- Page 13 MPCA User menu Genesis - Vintage Remarks Access to Parameters Display Handling menu Login with Change the value with Switches from 12 h Se ng the me AM / PM display on display. 12 or 24 hours confirm with Login with Even if the screen Change the value with is blank Press...
- Page 14 MPCA User menu Genesis - Vintage Remarks Access to Parameters Screens Manipulations menu This parameter is set to 0 at the Login with factory. It may be modified only in the case where Change the value with there would be a Calibra ng the difference temperature...
- Page 15 MPCA Alarms codes Genesis - Vintage Two types of errors may appear on the wireless remote control. Type 1 alarm : The Green and red LED on the front panel flashes. A warning message appears on the wireless control and bu on flashes when a bu on is pressed.
-
Page 16: Maintenance
Genesis & Vintage Reset How to reset to factory configura on with te remote controller Press simultaneously 10 Seconds Push The reset will change the parameters to their factory value Set the fan speed, temperature and humidity Unit starts Press Restart the unit Press . -
Page 17: Wiring Diagram
MPCA Wiring diagram Genesis - Vintage (Example) 16 A max Blue White Yellow AUX (light) Yellow TAC2 PWM1 blue White PWM2 On Vintage model POWER Sonde T° T°+HGR cond 5 x 20 10A GT Solenoid valve on vintage Compressor Heater series Temperature &... - Page 18 Detached pieces Designation Ref. Compressor 30050077 PR20050067 Remote Control board PR20050070 Light switch PR20070008 20050002-20070035 Probe °C + HRG% PR20080082 Drip tray 40010274 PR60010039 Bent hose Condensate pipe 60010291...
