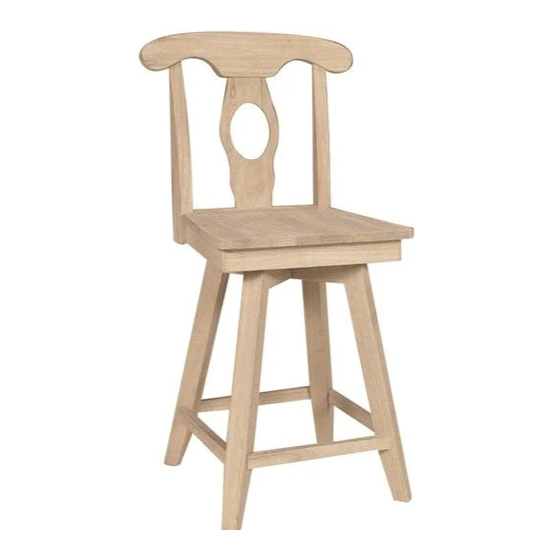

- Page 1 ASSEMBLY INSTRUCTIONS : 30 IN EMPIRE SWIVEL STOOL RTA Description : S-123SW Item No. ITEM NO. : S-123SW Printed in Vietnam REVISED OCT 31, 2015 - 1 -...
-
Page 2: Before Assembly
Remove all wrapping material, including staples & packing straps before you start to assemble. DO NOT tighten all screws, bolts until completely assembled. Keep all hardware parts out of reach of children. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO. : S-123SW Printed in Vietnam REVISED OCT 31, 2015 - 2 -... -
Page 3: Part List
( M6x30mm) (M6x40mm) Long bolt Wood Screw (M6 x 80mm) (M4 x 35mm) Lock Washer Flat Washer (6.5 x11mm) (6.5 x19mm) Allen Key (M4 x 80mm) ITEM NO. : S-123SW Printed in Vietnam REVISED OCT 31, 2015 - 3 -... - Page 4 Attach the leg (C) to the leg (D) with bolts (2), and washers (5) and (6) as shown below. Tighten with Allen key (7). Place stretchers (E) between legs (C) and (D), attach with screws (4) as shown below. Tighten with a screwdriver. ITEM NO. : S-123SW Printed in Vietnam REVISED OCT 31, 2015 - 4 -...
- Page 5 (5) and (6), as shown below. Tighten with Allen key (7). STEP 4 Attach the seat (F) to top of the seat frame (B) with screws (4). Tighten with a screwdriver. ITEM NO. : S-123SW Printed in Vietnam REVISED OCT 31, 2015...
