VHX-61C-IMP
Dakota Digital VHX Instrument Installation
For 1961-'62 Chevy Impala

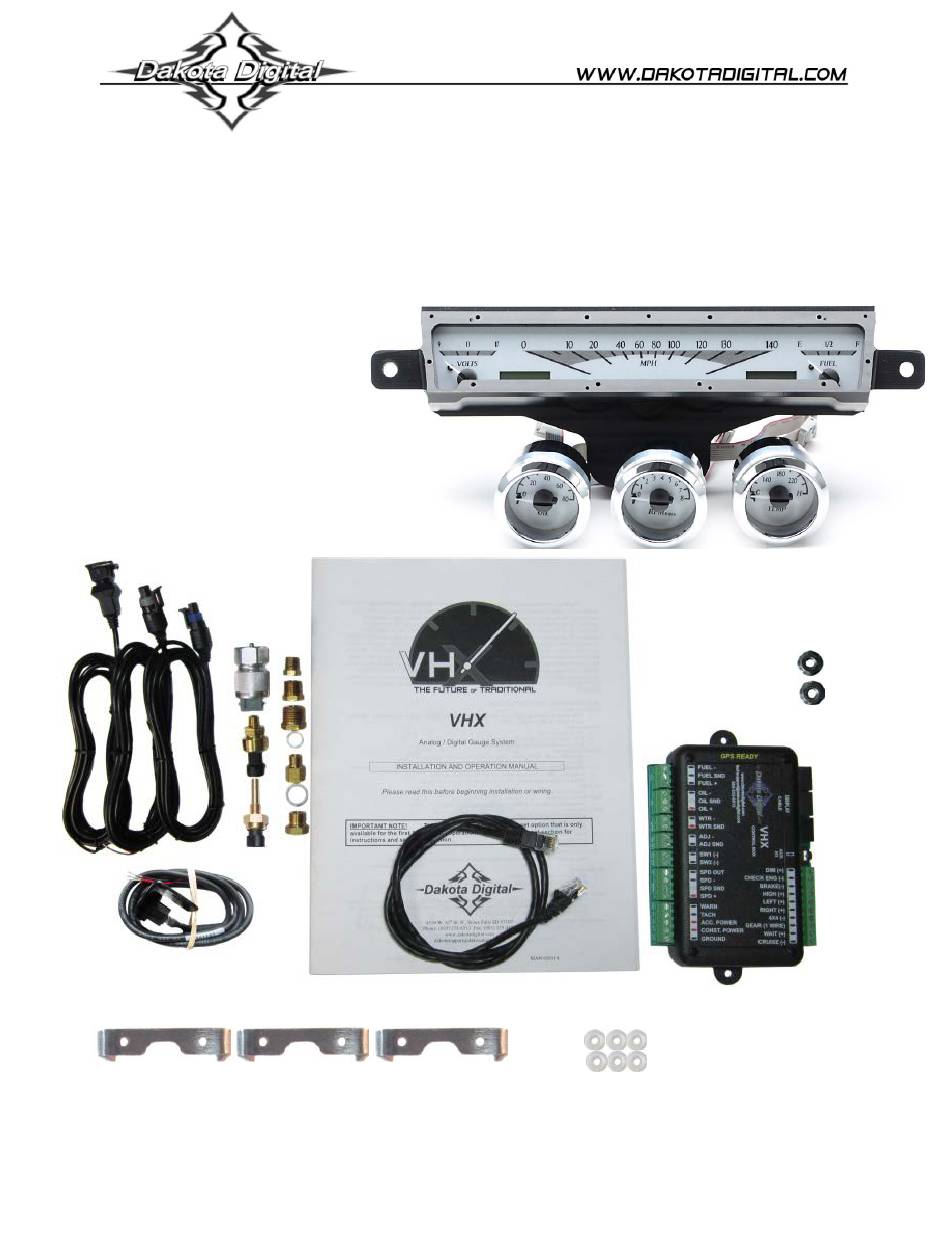

Your new VHX-61C-IMP kit includes:
VHX Display
Universal Sender
Pack
Installation Manuals
(2) Mounting nuts
CAT5 Cable
Control Box
U-brackets (3X)
Plastic Thumb
nuts (6x)
Manual # 650399B
