A Installing the Receiver
A2 Electrical Connection
Connection external antenna
ACC-ANT50-03-21P
230 V AC
50 Hz
L
N

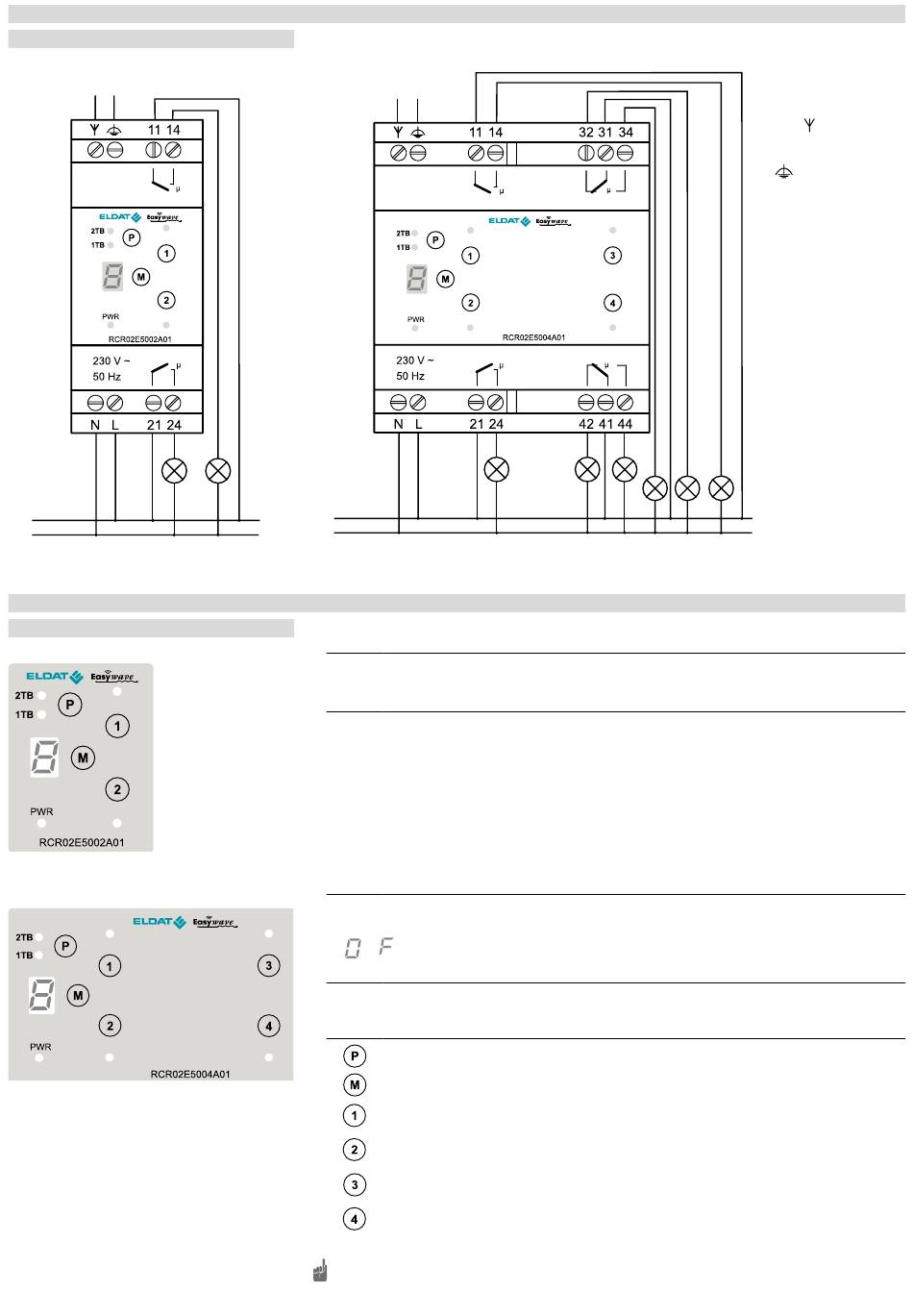

Connection Diagram RCR02 2TE
B Operation
B1 Operating and Display Elements
RCR02 2TE
RCR02 4TE
2
Connection external antenna
ACC-ANT50-03-21P
230 V AC
50 Hz
L
N
DISPLAY
LED GREEN
PWR Power
LED RED
2TB 2-button operation
1TB 1-button operation
1 LED output 1 flashes
2 LED output 2 flashes
3 LED output 3 flashes
4
LED output 4 flashes
Digital Display
....
OPERATING
Programming button
Mode button
Channel 1 button
Channel 2 button
Channel 3 button
Channel 4 button
When changing the programming mode, all outputs are switched off and no switching operations
are possible.
When returned to operating mode, the outputs remain switched off.
Connection Diagram RCR02 4TE
Operating Status
Supply voltage is on, LED
is lit.
LED 2TB flashes when a
wireless signal is detected.
Relay 1 switched
Relay 2 switched
Relay 3 switched
Relay 4 switched
Upon receiving a program-
med transmission code, the
corresponding operating mode
is displayed for 2 s.
Operating Status
Manually switch output
ON/OFF
Manually switch output
ON/OFF
Manually switch output
ON/OFF
Manually switch output
ON/OFF
Connection external
antenna:
Connect the black anten-
na cable to the antenna
terminal
and the white cable to
the functional earth termi-
nal on.
Note: Mount the an-
tenna away from metal
housing.
Cable cross-sections
rigid cables:
0.5 – 2.5 mm²
flexible cables with wire
end ferrules:
0.5 – 1.5 mm²
Programming Mode
Displays the selected
operation.
Signals the programming or
delete mode.
Displays the output selected
for programming.
Displays the selected opera-
ting mode.
Displays the seconds during
Timer II programming.
Programming Mode
Start programming mode,
select operation
Select operating mode
Select output 1
Select output 2
Select output 3
Select output 4
