Danfoss APP 21-43 Disassembling And Assembling Instructions page 4

Instruction
4
Disassembling and assembling APP 21-43

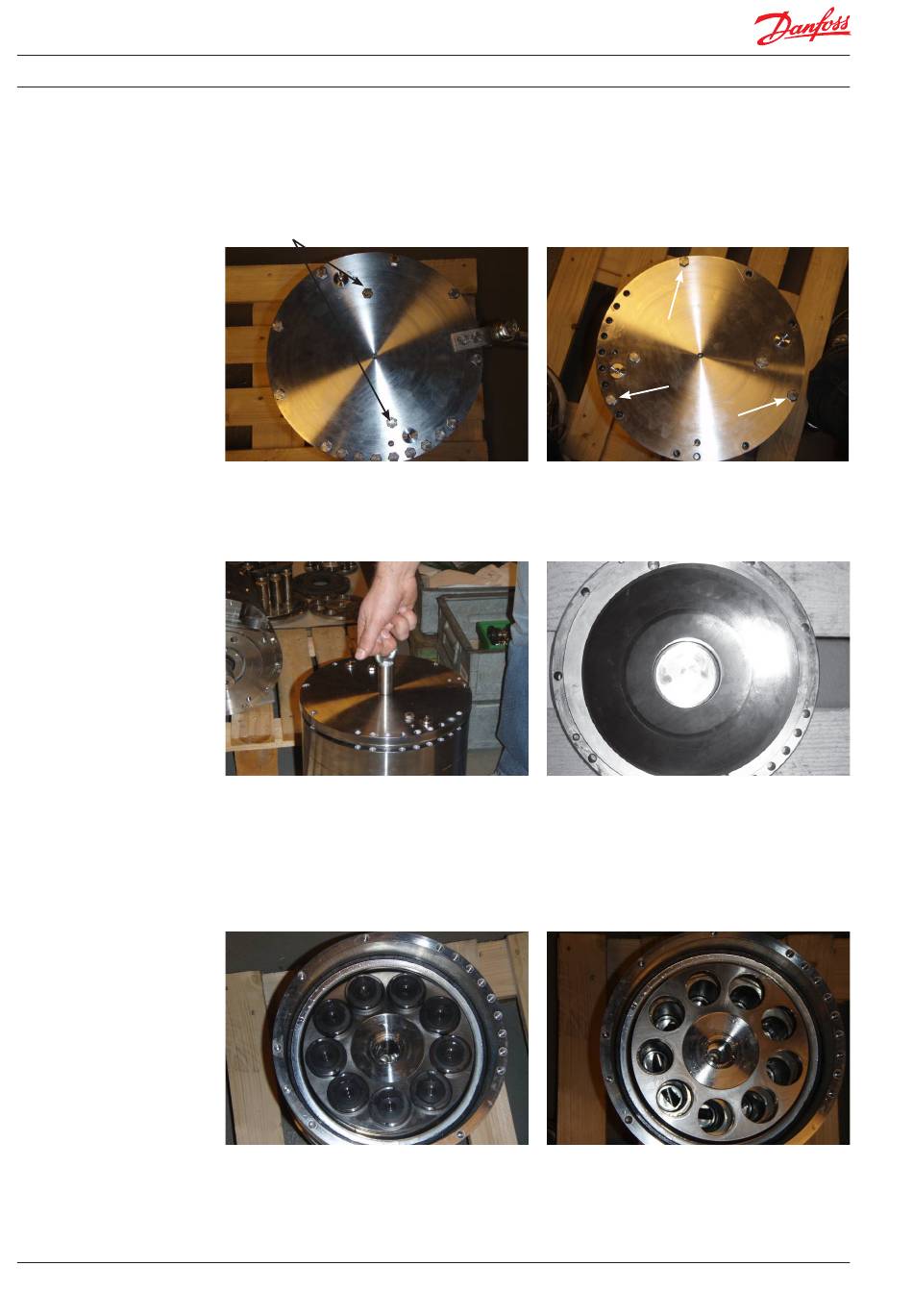

8. Using a 13 mm combination wrench, remove
all the bolts on the mounting flange except
the three shown in picture 9.
WARNING:
Do not loosen the two screws keeping
swash plate in place.
10. Screw the eye bolt in the M8 hole in the
middle of the flange. Pull it straight upwards.
12. Remove by hand the pistons one by one.
Be careful not to scratch the pistons. Tilt the
retainer plate to horizontal position for easy
removal of pistons, if required.
WARNING:
Do not use any tools.
180R9121 / 521B1018 / DKCFN.PI.013.A4.02 / 10.2013
9. Unscrew the remaining three bolts. Turn each
bolt one round at the time to make sure that
the flange is removed as straight forward as
possible.
11. Swash plate must be placed so that its surface
is not scratched. For further disassembling of
swash plate, see page 10.
13. Remove the retainer plate and the retainer
ball.
Note: As the retainer ball is not attached to
the retainer plate, it might fall out.
