Introduction

1.1.

Features

• QTouch
• LEDs
• Xplained Pro hardware identification system
1.2.

Kit Overview

Atmel QT5 Xplained Pro extension is designed specifically for Xplained Pro MCU boards featuring an
MCU with a built-in peripheral touch controller.
The extension board can be used to explore the touch functions on the PTC module in mutual-
capacitance mode.

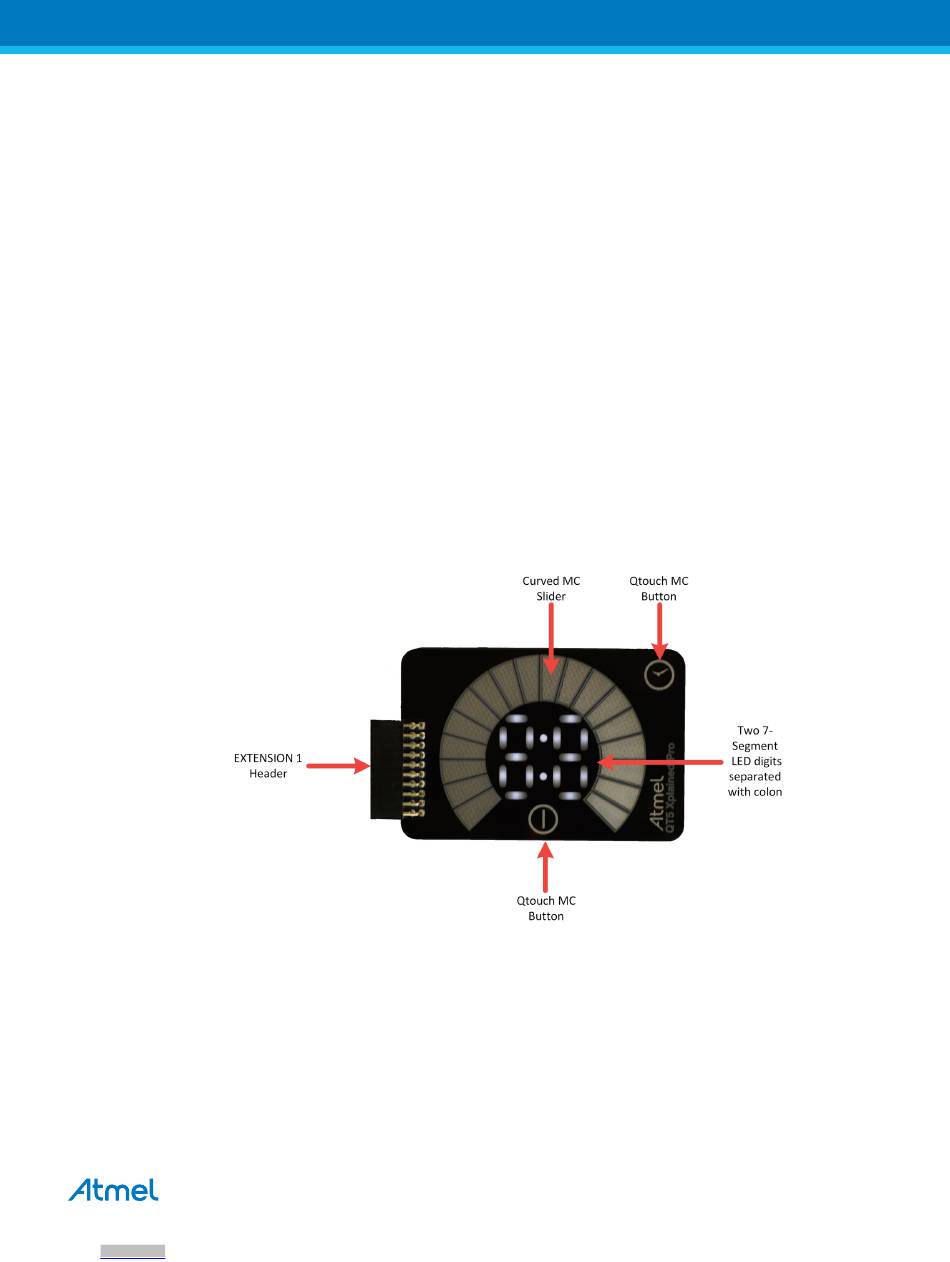

Figure 1-1 QT5 Xplained Pro Extension Board
1.3.

Kit Compatibility

This kit is only supported by Xplained Pro MCU boards that have an MCU with a built-in PTC and a
matching pinout that connects all sensors of the extension. There is no guarantee that every Xplained Pro
MCU board with a device that has PTC will manage to match the touch signal pinout to the extension
headers.
Currently supported MCU boards are:
• SAM D11 Xplained Pro
Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from
• One 4-channel (4X x 1Y) mutual-capacitance curved slider
• Two mutual-capacitance buttons
• 16 LEDs arranged as two 7-segment digits separated with a colon
2
• IS31FL3728 I C LED matrix controller from ISSI
Atmel QT5 Xplained Pro User Guide [USER GUIDE]
