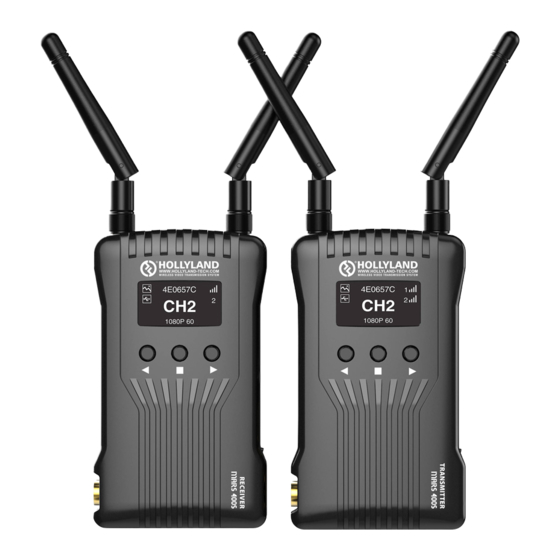

- Page 1 MARS 400S USER NOTE V2.0, 07/28/2020...
-
Page 2: Product Features
PRODUCT FEATURES 1. iOS & Android APP Monitoring 2. Both SDI & HDMI Interfaces for MARS 400S 3. Channel Scan (on RX) 4. Three Application Scene Modes (on TX) 5. Low-Battery Warning Indicator 6. OLED Display Screen 7. 400ft Transmission Range 8. - Page 3 PRODUCT FEATURES Transimitter Receiver HDMI Input HDMI Output SDI Input SDI Output Interface 2 Antenna Interfaces (RP-SMA Male) 2 Antenna Interfaces (RP-SMA Male) DC Input, Type-C USB; DC Input, Type-C USB; Power Supply Range 6-16V DC 6-16V DC Power Consumption <10W <6W Net Weight...
- Page 4 TRANSMITTER INTERFACE Device ID Mode Signal Strength Channel Video Format Down...
- Page 5 TRANSMITTER INTERFACE Type-C Upgrade Interface HDMI IN Power Switch SDI IN DC Input...
- Page 6 TRANSMITTER INTERFACE Battery Lock...
-
Page 7: Receiver Interface
RECEIVER INTERFACE Device ID Mode Signal Strength Channel Video Format Down... - Page 8 RECEIVER INTERFACE Type-C Upgrade Interface HDMI OUT 1 Power Switch SDI OUT 2 DC Input...
- Page 9 RECEIVER INTERFACE Battery Lock...
-
Page 10: Transmitter Menu
TRANSMITTER MENU IMAGE MODE: prioritize the video monitoring over image quality when there is interference. BALANCE MODE: balance the image quality and latency of the video monitoring when there is interference. SPEED MODE: prioritize the video monitoring over low latency when there is interference LANGUAGE: support languages switch PAIR: pair the transmitter and the receiver... -
Page 11: Receiver Menu
RECEIVER MENU Avoid channels with “X” because it indicates the channels are with interference LANGUAGE: support languages switch PAIR: pair the transmitter and the receiver RESET DEFAULTS: reset the device to default settings Long-press the “OK” button to enter the root menu on RX. -
Page 12: App Connection
APP CONNECTION The Wi-Fi Input the Wi-Fi SSID Password Check the Wi- Fi Password... - Page 13 FAQ 1. How to switch to another Channel? Press the “ Up” or “ Down” button TX and press the “ OK” button to confirm the switch. 2. How to pair a new receiver with the system? • Go to the menu on TX and new RX by long-pressing the “ OK” button. •...
- Page 14 THANK YOU...
