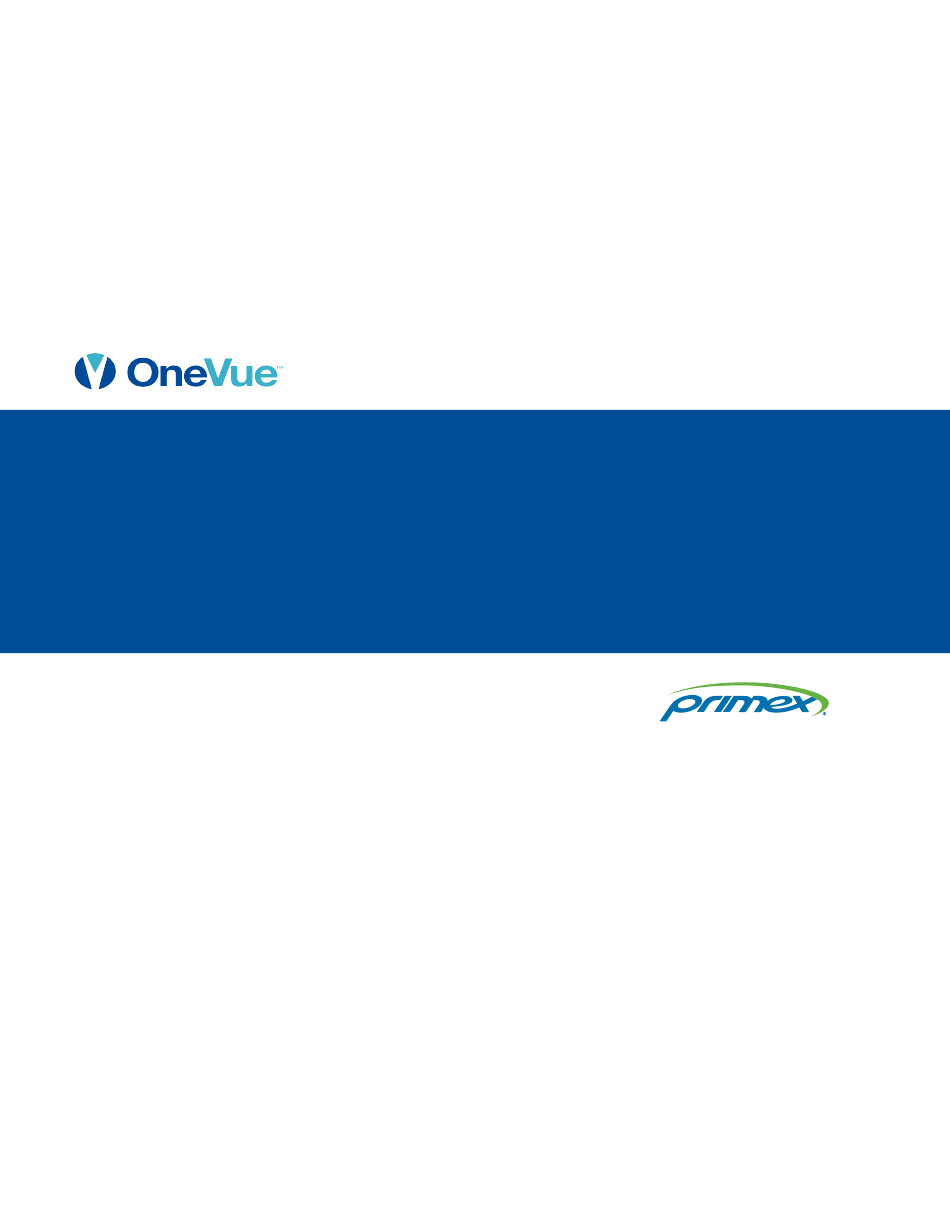

PoE Digital Clock/Timer Install Guide - Levo
Series
OneVue PoE Managed Time
OneVue is a trademark of Primex. OneVue is an intelligent environmental monitoring and managed time solution. All other trademarks are the property of their respective owners.
Copyright ©2018 Primex. The Primex logo is a registered trademark of Primex. All Rights Reserved. 10/17/2018
Primex, Inc. | 965 Wells Street |Lake Geneva, WI 53147 | Phone:1-262-729-4853 | www.primexinc.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Primex OneVue Levo Series
Summary of Contents for Primex OneVue Levo Series
- Page 1 OneVue PoE Managed Time OneVue is a trademark of Primex. OneVue is an intelligent environmental monitoring and managed time solution. All other trademarks are the property of their respective owners. Copyright ©2018 Primex. The Primex logo is a registered trademark of Primex. All Rights Reserved. 10/17/2018...
- Page 2 Primex. Ab o ut Pri m ex Primex is a leading provider of solutions that automate and maintain facility compliance, increase efficiencies, enhance safety and reduce risk for enterprise organizations in the healthcare, retail pharmacy, education, manufacturing and business vertical markets.
- Page 3 Ab o ut thi s Gui d e Audience This guide is intended for users tasked with installing Levo Series Digital Clocks/Timers for use with the Primex OneVue Managed Time solution. Content messaging This guide includes notes, cautions, and warnings content that highlights important messages.
-
Page 4: Table Of Contents
Specifications - Levo Series Component Specifications Digital code blue and elapsed timer operation Manual Check-In Install Levo Series Digital Clock/Timer Installation Requirements - Levo Series Power & Dimension Specifications Tilt Bracket Dimensions Tilt Bracket Mount Wall Mount Install Dual Clock Bracket Kit Assembly & Mounting Flush Mount Install Timer Control Switch Install Remove from Tilt Bracket... - Page 5 Im p o rtant Saf ety Instructi o ns READ ALL INSTRUCTIONS BEFORE INSTALLATION, OPERATION, OR MAINTENANCE OF PRODUCT. Some of the following information may not apply to your particular product model; however, as with any electronic product, precautions should be observed during installation, operation, and maintenance. Installation must conform to state or local building codes and ordinances.
- Page 6 Reg ul ato ry Ap p ro val s FCC Compliance Pursuant to FCC 15.21 of the FCC rules, changes not expressly approved by Primex might cause harmful interference and void the FCC authorization to operate this product. FCC Radio Frequency Interference This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
- Page 7 Exposure to Radio Frequency Radiation To comply with RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all person. The technical documentation relevant to the above equipment will be held at: Primex | 965 Wells Street | Lake Geneva, WI 53147 | Phone: 1-262-729-4853..
-
Page 8: Specifications - Levo Series
SPECIFICATIONS - LEVO SERIES Operation 12- or 24-hour time display PM indicator light Alternating time and date display option LED dimmer option (100%, 75%, 50%, 25%) Power outage memory backup for up to 1 hour Power Over Ethernet (PoE) Models PoE.IEEE 802.3af Compliant Certifications: FCC/IC/CE marked Maximum power consumption: 12.9 Watts (Class 3) -
Page 9: Component Specifications
Co m p o nent Sp eci f i cati o ns Backside of the clock/timer The backside of the clock/timer houses the mounting, power and connection inputs and setting panel. Key-Hole Mount (2) RJ45 Port - Power over Ethernet (PoE) RJ11 Port - Code Blue Timer models only. -
Page 10: Digital Code Blue And Elapsed Timer Operation
Di g i tal co d e b l ue and el ap sed ti m er o p erati o n Capability of functioning as a normal clock and timer with both count-up and count-down options. When power is applied it begins operating as a digital clock. -
Page 11: Manual Check-In
Manual Check-In During each check-in, a digital clock/timer synchronizes its time with a NTP Server and transmits its status to your OneVue account. Also, any pending setting changes are downloaded to the clock and events of a code blue or elapsed timer are transmitted to your OneVue account. -
Page 12: Install Levo Series Digital Clock/Timer
INSTALL LEVO SERIES DIGITAL CLOCK /TIMER Learn how to install a Digital Clock/Timer. -
Page 13: Installation Requirements - Levo Series
Your OneVue account ID and the settings provided during device preconfiguration are configured into your clocks and each clock is labeled before they are shipped from Primex. Power-over-Ethernet (PoE) digital clocks/timers Requires a connection to a PoE enabled LAN. PoE power is usually injected into the LAN using either PoE enabled Ethernet switches or Mid Span power injectors. -
Page 14: Power & Dimension Specifications
Po w er & Di m ensi o n Sp eci f i cati o ns Power Requirements PoE.IEEE 802.3af Compliant. Maximum power consumption: 12.9 Watts (Class 3) Clock Type Weight Max. Current Draw Height (A) Width (B) Depth (C) 2.5"... - Page 15 Flush mount dimensions Clock Type Weight Max. Current Draw Width (A) Height (B) Depth (C) 2.5" (6.4 cm) 2.0 lb (0.9 kg) 230 mA 16.8" (42.7 cm) 6.5" (16.5 cm) 3.4" (8.6 cm) 6-digit PoE Digital Clock/Timer Install Guide - Levo Series...
- Page 16 Dual-sided dimensions (use of dual clock bracket kit) Mounted Dimensions Clock Type Width from Wall (A) Height from Ceiling (B) Depth of 2 Clocks (C) Dual 2.5” (6.4 cm) 13.8” (35.1 cm) 8.0” (20.3 cm) 5.9” (15.0 cm) 4-digit Dual 2.5” (6.4 cm) 16.8”...
-
Page 17: Tilt Bracket Dimensions
Ti l t Bracket Di m ensi o ns Dimension D - clock screw hole spacing. Dimension E - distance to wall surface for 4° mounting bracket Dimension F - distance to wall surface for 18° mounting bracket Dimension G/H - mounting bracket screw hole spacing. -
Page 18: Tilt Bracket Mount
Ti l t Bracket Mo unt A Levo Series Digital Clock/Timer can be tilt-mounted to a wall surface with use of the supplied tilt bracket. How to mount a clock/timer to a wall surface with use of the supplied tilt bracket NOTE: AC-powered clocks are supplied with a power cord with a two-prong plug. -
Page 19: Wall Mount Install
Wal l Mo unt Instal l A Levo Series Digital Clock/Timer can be mounted directly to the surface of a wall by use of the clock key-hole mounts and the supplied screws and anchors. NOTE: Most building codes prohibit the use of hardwired power connections for devices that can be removed without tools. A clock/timer mounted directly to a wall is required to have a standard power plug. -
Page 20: Dual Clock Bracket Kit Assembly & Mounting
Dual Cl o ck Bracket K i t Assem b l y & Mo unti ng A Levo Series Dual-Sided Digital Clock/Timer consists of two single-sided clocks and a Dual Clock Bracket Kit. The kit includes a dual housing bracket, a flange that mounts to ceiling or wall, and the hardware necessary to complete the installation. Using the kit, you combine the two single-sided clocks to create a dual-sided clock. - Page 21 How to assemble and mount a dual-sided digital clock/timer On the wall or ceiling, measure and drill holes with the correct spacing to mount the flange over the junction box. Attach the flange to the wall or ceiling using the toggle anchors and the longer machine screws provided. NOTE: Wall-mount: if the mounting location is outside of the junction box, break off or cut openings in flange to route power cords.
-
Page 23: Flush Mount Install
Fl ush Mo unt Instal l A Levo Series Digital Clock/Timer Flush Mount model can be installed to either a new or existing wall surface. Supplied parts (1) Flush mount junction box (Material: ABS plastic, color black, and UL Rated 94-V0) (1) Bezel (material: ABS plastic, color black, and UL Rated 94-V0) (4) #10 Phillips Flat Head Screw (4) Drywall Anchors... - Page 24 New Wall Surface - Flush Mount Assembly Illustration...
- Page 25 Existing Wall Surface - Flush Mount Assembly Illustration PoE Digital Clock/Timer Install Guide - Levo Series...
-
Page 26: Timer Control Switch Install
Ti m er Co ntro l Sw i tch Instal l Digital Elapsed and Code Blue timers include a Timer Control Switch that is required to be mounted to a single-gang junction box (not supplied). The junction box dimension is typically 2.25 in. x 2.75 in. x 4 in. (5.72 cm x 6.99 cm x 10.16 cm). Attach timer to timer control switch The timer control switch is not connected to the timer during shipment. - Page 27 Installation and wiring illustration PoE Digital Clock/Timer Install Guide - Levo Series...
- Page 28 How to clean a timer control switch The switch buttons and wall plate cover may be cleaned with water or a common disinfectant cleaning solution. Be sure to test any cleaning solutions on a small area of the switch before using it on the entire switch.
-
Page 29: Remove From Tilt Bracket
Rem o ve f ro m Ti l t Bracket How to remove a Levo Series Digital Clock/Timer from a tilt bracket 2.5" model - from the top of the bracket using a screwdriver press each hook down to release the clock and pull out to unsnap bottom hinges. -
Page 30: One-Year Limited Warranty
Primex retains the exclusive right to repair or replace the unit at its sole discretion. All merchandise returned must be shipped to Primex, Attn: Returns Dept., N3211 County Road H, Lake Geneva, WI 53147. Primex retains the exclusive right to repair or replace the unit at its sole... -
Page 31: Technical Support
Ensuring our customers experience excellent service is of utmost importance to Primex. Our network of Certified Sales and Service Partners offer technical support services for Primex products. If you have purchased Primex products or have a service agreement with a Primex Partner, they are your primary contact for all Technical Support inquires.
