Yale MC182010B Quick Start Manual

Sliding Door Lock
External Key Locking and Non-Locking
Models: MC182010B (Locking) and MC182000B (Non-Locking).
Operation: Key operated cylinder locks and unlocks from outside (locking version only). Snib locks and unlocks from inside.
Application: For use with aluminium, uPVC and timber sliding doors.
Fitting instructions: Suitable for new and ideal for replacement installations.

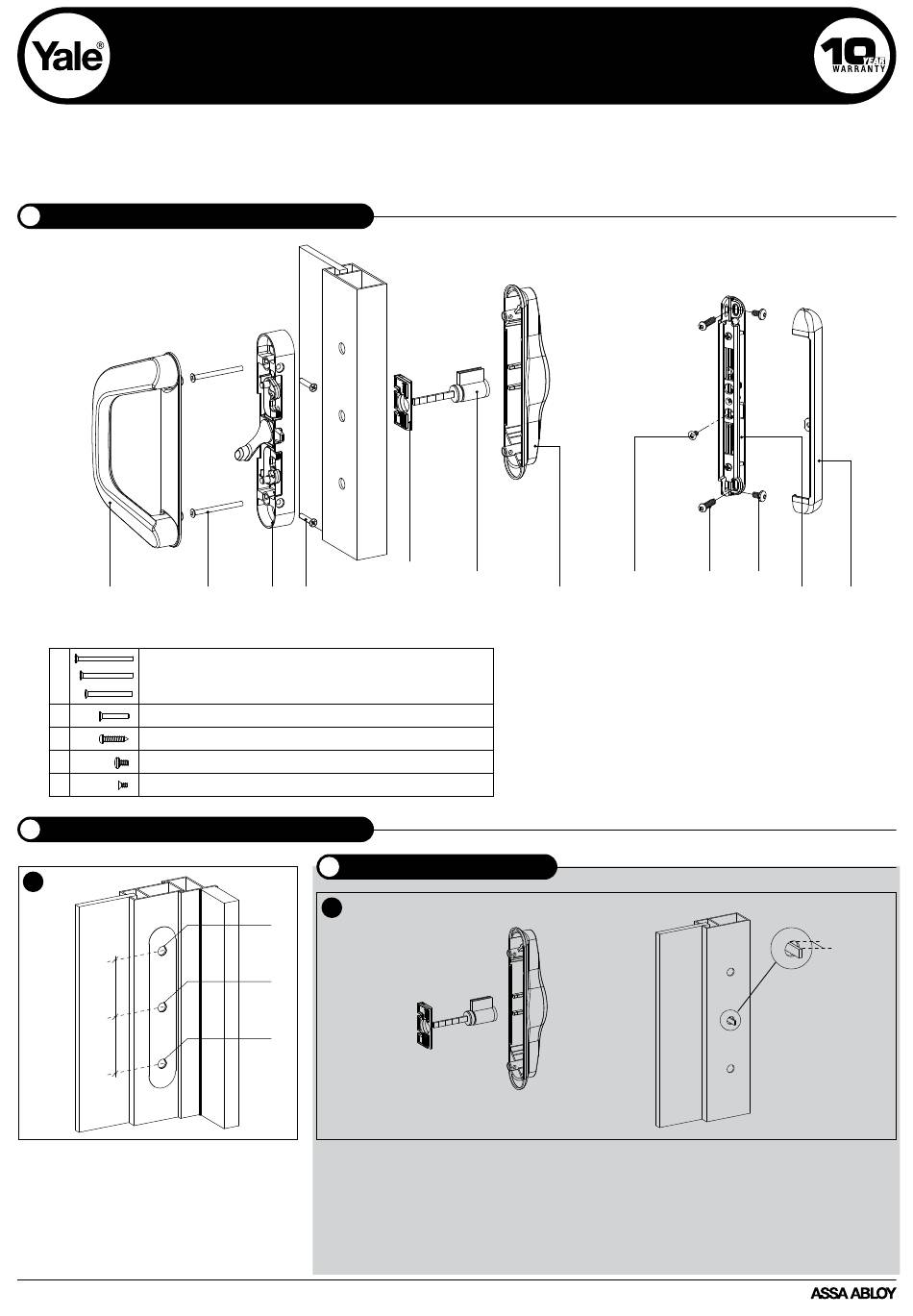

Components
Internal Mounting
Handle Screw (a)
2 x M4x49 Mounting screw – Door stile thickness 40mm-44mm
(a) 2 x M4x45 Mounting screw – Door stile thickness 35mm-40mm
2 x M4x40 Mounting screw – Door stile thickness 28mm-34mm
(b) 2 x M4x25 Internal handle mounting screws
(c) 2 x 10Gx8 Strike mounting screws – end fixing
(d) 2 x 8Gx25 Strike mounting screws – side fixing
(e) 1 x 8Gx7.5 Strike cover screw
Fitting Instructions
1
62.5mm
62.5mm
Mark and drill holes
Align template (cut out from clam card) on the
inside of the door and drill holes as shown.
If replacing an existing lock utilise any existing
holes if possible.
Note: Drill centre hole for locking model only.
An ASSA ABLOY Group brand
Cylinder
Retainer
Lock Mounting (locking
Body Screw (b) model only)
Locking Model Only
2
Ø 10mm
Ø 10mm
Ø 10mm
Fit exterior handle
Exterior handle should be oriented so finger recesses are
next to the door jamb.
Place cylinder in exterior handle with cylinder tailbar aligned
vertically. Assemble cylinder retainer with '5 PIN DOWN' side
showing.
Place exterior handle on outside of door and hold in place.
Cylinder Strike
(locking Exterior Cover
model only) Handle Screw (e)
Cut cylinder tailbar so it protrudes 10mm inside door.
Strike Strike
Mounting Mounting Strike Strike
Screw (c) Screw (d) Body Cover
10mm
