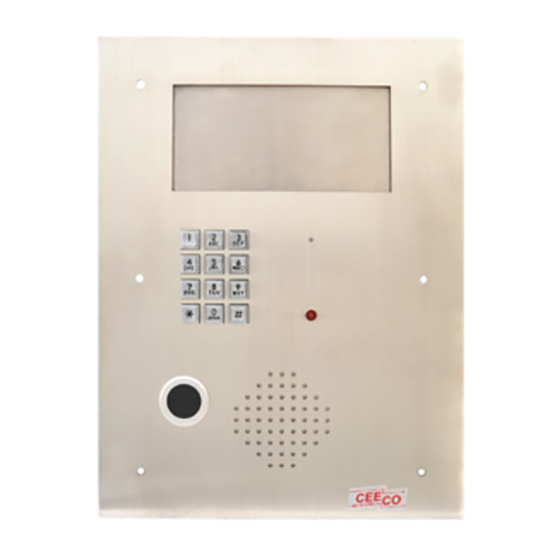

Hands free stainless steel telephone equipped with low power spk p.c.b.

Advertisement

Quick Links

SERVICE MANUAL
HANDS FREE STAINLESS STEEL TELEPHONE
EQUIPPED WITH LOW POWER SPK P.C.B.
Communication Equipment
& Engineering Company
FOR
MODEL SSP-560-F
SSP-560-F-LPSPKPCB-ISSUE4.0
Serving the Telephone Industry Since 1930
519 W South Park Street
Okeechobee, FL 34972
Voice: 863-357-0798
Fax: 863-357-0006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSP-560-F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CEECO SSP-560-F

  • Page 1 SSP-560-F-LPSPKPCB-ISSUE4.0 SERVICE MANUAL MODEL SSP-560-F HANDS FREE STAINLESS STEEL TELEPHONE EQUIPPED WITH LOW POWER SPK P.C.B. Serving the Telephone Industry Since 1930 Communication Equipment 519 W South Park Street & Engineering Company Okeechobee, FL 34972 Voice: 863-357-0798 Fax: 863-357-0006...
  • Page 2 ISSUE 4.0 IMPORTANT INFORMATION CUSTOMER Please fill in before you continue. The following information is necessary when calling CEECO for assistance. MODEL NUMBER MODEL SSP-560-F EQUIPPED WITH LOW POWER SPK P.C.B. SERIAL NUMBER DATE MANUFACTURED LOCATION INSTALLED For us to better serve you, please have this information available when calling for technical support.
  • Page 3: Table Of Contents

    RECOMMENDED TOOLS AND TEST EQUIPMENT ........6 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ..... 7 TESTING......................... 8 SPECIFICATIONS....................9 PARTS LIST ......................10 10.0 REPAIR AND RETURN INFORMATION............11 11.0 WARRANTY POLICY ..................12 CEECO Communication Equipment & Engineering Company PROPRIETARY...
  • Page 4: Introduction

    INTRODUCTION The practices in this manual provide installation and maintenance information for the CEECO Model SSP 560-F Telephone. The information in this manual is subject to change without notification. For information not included in this manual, please call or write:...
  • Page 5: General

    ISSUE 4.0 GENERAL The CEECO Hands free telephone is a sturdy, vandal resistant, Stainless Steel Panel Speakerphone. Instead of a hookswitch and handset, the telephone has a Press to start/Press to stop button for initiation and termination of phone calls.
  • Page 6: Operation

    RECOMMENDED TOOLS AND TEST EQUIPMENT Volt/Ohm Meter 5/16" Nut driver 3/8" Nut Driver Security Tool, CEECO Part Number 301-037 Flat Blade Screw Driver DTMF Test Set CEECO Communication Equipment & Engineering Company...
  • Page 7: Installation Notes And Assembly Instructions

    Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. Use caution when installing or modifying telephone lines. CEECO Communication Equipment & Engineering Company PROPRIETARY...
  • Page 8: Testing

    The called party answers. A normal speakerphone conversation is allowed. Action: Finish the conversation. Press the "CALL" button, or wait until time out occurs. Reaction: Red LED goes out (if provided). The call is terminated. CEECO Communication Equipment & Engineering Company PROPRIETARY...
  • Page 9: Specifications

    Temperature 0°c to 50°c Humidity 20%-90% PROGRAMMING: Via DTMF keypad. DIMENSIONS: 10.25" Wide X 13.125" High X 2.625 Depth WEIGHT: 16 Pounds RINGER EQUIVALENCY: 0.4A TYPE JACK: RJ11C UL LISTED NO.: 6OF5 FCC NO.: BWBUSA-73021-MT-E CEECO Communication Equipment & Engineering Company PROPRIETARY...
  • Page 10: Parts List

    QUANTITY PART NUMBER DESCRIPTION 406-019 Outer Cover Security Screw 301-018 Modular Line Cord 301-054 Modular Connector (RJ11C) 700-008 Keypad Cable 660-000 CEECO SPK Board 705-110 Connectorized Keypad 6020 Momentary Panel Switch 14024 Speaker 14067 Microphone 391-002 Stainless Steel Panel 361-01...
  • Page 11: Repair And Return Information

    10.3 NON-WARRANTY REPAIR CEECO will repair equipment out of warranty for a set charge plus parts. The customer must pay the shipping costs for both directions. 10.4 RETURN FOR CREDIT Material may be returned for credit only with prior approval. Material authorized for return is subject to a 20% restocking charge based on the manufacturer’s list price.
  • Page 12: Warranty Policy

    PRINTED CIRCUIT BOARDS Printed circuit boards should not be field repaired. If a unit is found to be faulty, replace it with another unit and return the faulty unit to CEECO for repair. Modifications by anyone other than CEECO will void the warranty.
