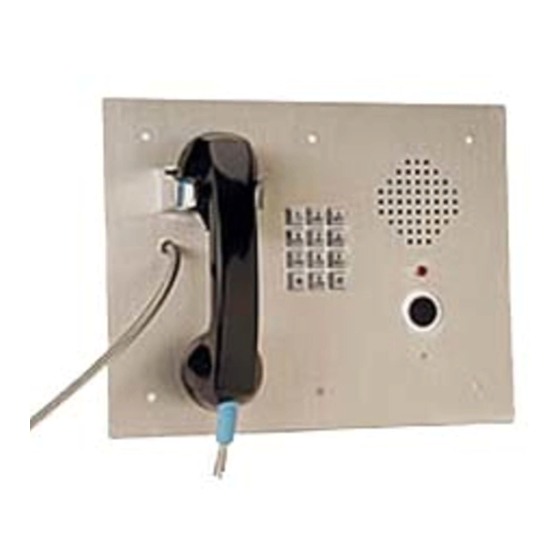

- Page 1 SSP-599-F-ISSUE4.0 SERVICE MANUAL MODEL SSP-599-F SPEAKERPHONE / HANDSET COMBINATION TELEPHONE Serving the Telephone Industry Since 1930 Communication Equipment 519 W South Park Street & Engineering Company Okeechobee, FL 34972 Voice: 863-357-0798 Fax: 863-357-0006...
-
Page 2: Important Information
Issue 4.0 IMPORTANT INFORMATION CUSTOMER Please fill in before you continue. The following information is necessary when calling CEECO for assistance. MODEL NUMBER MODEL SSP-599-F SERIAL NUMBER DATE MANUFACTURED LOCATION INSTALLED For us to better serve you, please have this information available when calling for technical support. -
Page 3: Table Of Contents
5.0 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ....... 6 6.0 TESTING........................7 7.0 SPECIFICATIONS....................8 8.0 PARTS LIST ......................9 9.0 FCC NOTICE......................10 10.0 REPAIR AND RETURN INFORMATION............11 11.0 WARRANTY POLICY ..................12 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 4: Introduction
The SSP-599-F is equipped with an audible ringer and can receive incoming calls. The telephone is also equipped with a red LED light to indicate when the telephone is off-hook. -
Page 5: Recommended Tools
When the telephone has actually been hung up, the red light will turn off. RECOMMENDED TOOLS Security Tool (CEECO P/N 301-064) sold separately. Screw Drivers – Flat Blade and Phillips Head. Wire Cutters/Strippers. -
Page 6: Testing
End the call by pressing the speakerphone button to hang up the phone. The red LED light should go out. Place a call to the telephone using another telephone or a test set. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 7: Specifications
10.25 High x 13.125 Wide x 5.50 Deep (SSP) (handset on hook). Mounting: Mounting Box/Vertical surface mount. (Mounting Box Dims)– 8.54 H x 11.52 L x 2.65 Weight: Approximately 6lb. - Telephone Assembly CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 8: Parts List
Type jack: RJ11C PARTS LIST QUANTITY PART NUMBER DESCRIPTION 301-018 Modular line cord. 301-054-UL Modular Connector (RJ11C). 660-100 CEECO SPK PC board. 6020 Momentary Panel Switch. 14024 Speaker. 14067 Microphone. 301-004 Handset with Armored Cord 735-100 Model 730 Metal Button Tone Dial... - Page 9 Issue 4.0 301-588 Hookswitch Cradle 301-570 Microswitch Assembly 401-009 Ringer 301-009 Network 6023 308-016 Handset Swivel 301-052 Grommet 13074-C PC Board OPTIONS 301-064 Security Tool. CEECO Communication Equipment & Engineering Company PROPRIETARY...
-
Page 10: Fcc Notice
FCC registration number and ringer equivalence number. These numbers are listed in section 9.0. The FCC further requires that you notify your local telephone company when permanently disconnecting this telephone. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 11: Repair And Return Information
10.3 NON-WARRANTY REPAIR CEECO will repair equipment out of warranty for a set charge plus parts. The customer must pay the shipping costs both directions. 10.4 RETURN FOR CREDIT Material may be returned for credit only with prior approval. Material authorized for return is subject to a 20% restocking charge based on the manufacturer’s list price. -
Page 12: Warranty Policy
This warranty is limited to the value of material only. CEECO will repair or replace any unit during this period if found to be defective for reasons other than abuse and improper use or improper installation.
