Option 2 - Mounting to right or left side of laptop head unit (cont.)
3

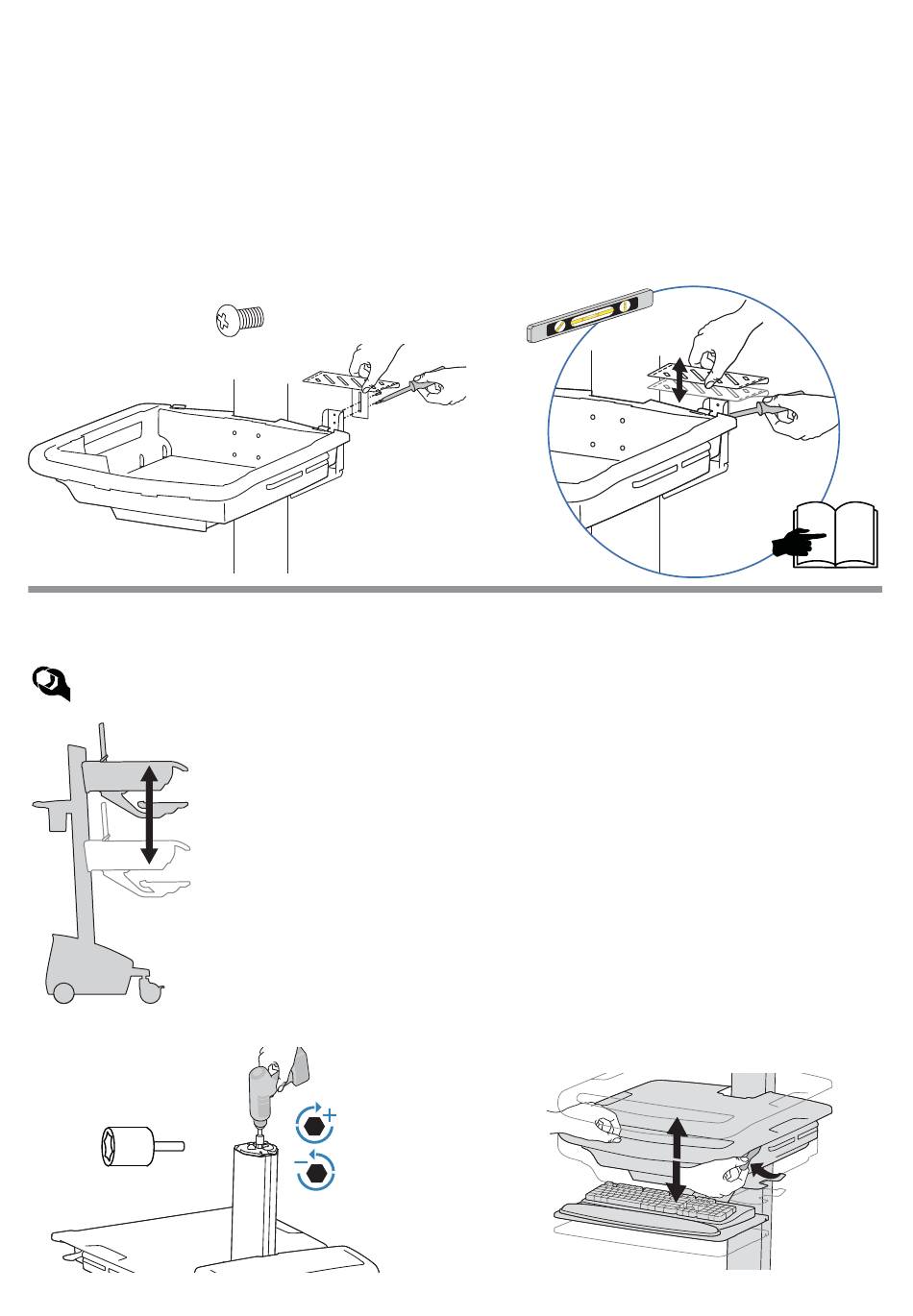

a. Loosely attach the scanner shelf to the bracket using two M5x12mm Phillips screws.
b. Adjust the shelf to the desired height; ensure that the shelf is level, then tighten the
screws. Close and lock worksurface.
c Go to page 8 for options on how to secure scanner to shelf.
d. After the scanner has been secured to shelf, follow Step 4 Adjustment, below.
a
2x
4
Adjustment Step
Lift – Up and down
b
14mm (9/16")
888-97-319-W-02 rev. F • 04/19
M5 x 12mm
Once the scanner has been mounted to the shelf, it is important that
you adjust the lift tension for the additional weight. Test the lift tension
by moving the head unit up and down. If it travels smoothly and easily
through the full range of motion, and does not drift up or sag down from
the place you set it, the tension is good. If not, adjust as directed below:
To change lift tension:
a. Remove cap and turn adjustment nut with a 14mm (9/16") socket
head.
b. Test lift tension by lifting head unit up and down. When desired lift
tension has been achieved, replace cap.
NOTE: Adjustment
may require 40 - 60
revolutions.
b
c
8
