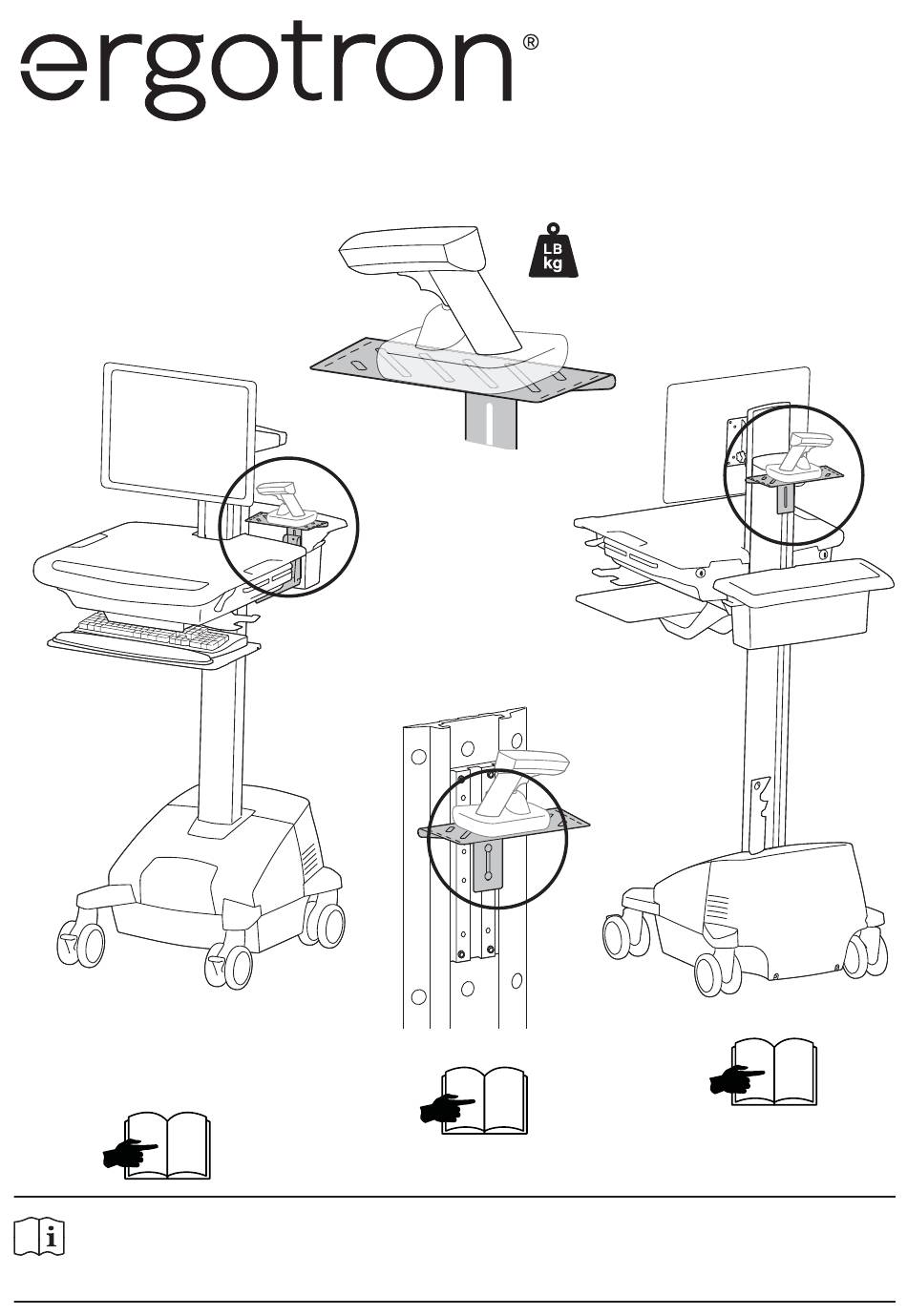

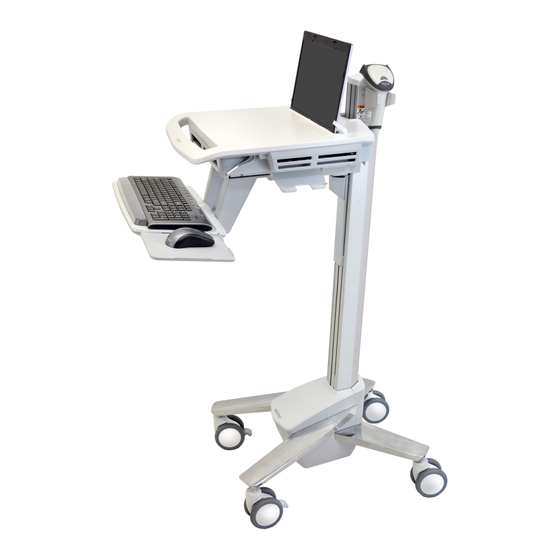

StyleView
SV Cart & Head Unit
• Option 1 - LCD Carts
• Option 2 - Laptop Carts
3
For the latest User Installation Guide please visit: www.ergotron.com
English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语
www.ergotron.com |
USA: 1-800-888-8458
888-97-319-W-02 rev. F • 04/19
Scanner Shelf
®
• Option 3 - Wall Track
|
Europe: +31 (0)33-45 45 600
Max weight: 2 lbs (1 kg)
• Option 4 - Back of SV Cart
6
|
|
China: 400-120-3051
User's Guide
7
English
Japan: japansupport@ergotron.com
1 of 8
Advertisement
Related Manuals for Ergotron StyleView
Summary of Contents for Ergotron StyleView
- Page 1 • Option 1 - LCD Carts • Option 3 - Wall Track • Option 2 - Laptop Carts English For the latest User Installation Guide please visit: www.ergotron.com English, Español, Français, Deutsch, Nederlands, Italiano, Svenska, 日本語, 汉语 www.ergotron.com | USA: 1-800-888-8458...
-
Page 2: Hazard Symbols Review
Hazard Symbols Review Symbol Signal Word Level of Hazard A NOTE indicates important information that helps you NOTE make better use of this product. These symbols alert users of a safety condition that demands attention. All users should be able to A CAUTION indicates either potential damage to recognize and understand the signifi cance of the fol- CAUTION... - Page 3 Option 1 - Mounting to right or left side of LCD head unit CAUTION: Do Not Exceed Maximum SV LCD Cart Weight Capacity 35 lbs. (16 kg). This is the sum of LCD monitor, CPU, key- board/mouse, scanner and any worksurface load, including drawers, if present. Failure to heed this caution may cause serious Injury or property damage to occur.
- Page 4 Option 2 - Mounting to right or left side of laptop head unit CAUTION: Do Not Exceed Maximum SV Laptop Cart Weight Capacity 22 lbs. (10 kg). This is the sum of laptop, keyboard/mouse, scanner and any worksurface load, including drawers, if present. Failure to heed this caution may result in personal Injury or property damage. a.
- Page 5 Option 2 - Mounting to right or left side of laptop head unit (cont.) a. Loosely attach the scanner shelf to the bracket using two M5x12mm Phillips screws. b. Adjust the shelf to the desired height; ensure that the shelf is level, then tighten the screws.
- Page 6 Option 3 - Mounting to wall track a. Attach the scanner shelf to the walltrack bracket using two 8/32x5/16” Phillips screws. Adjust the shelf to the desired height; ensure that the shelf is level, then tighten the screws. b. Go to page 8 for options on how to secure scanner to shelf. Note: several pair of mounting holes are available.
- Page 7 Option 4 - Mounting to rear of cart a. Remove cap. b. If present, remove existing accessory by sliding it up off the slot in the riser. NOTE: loosen screws only, do not remove them. c. Attach t-nut to scanner shelf with M5x12 screws as illustrated. d.
-
Page 8: Mounting Options
3 Mounting Options For Warranty visit: www.ergotron.com/warranty For Service visit: www.ergotron.com For local customer care phone numbers visit: http://contact.ergotron.com www.ergotron.com | USA: 1-800-888-8458 Europe: +31 (0)33-45 45 600 China: 400-120-3051 Japan: japansupport@ergotron.com © 2015 Ergotron, Inc. All rights reserved. 8 of 8...
