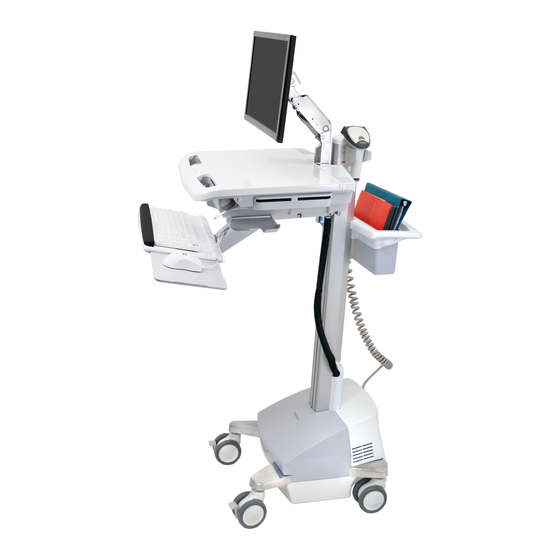

Ergotron STYLEVIEW Quick Reference

RANGE OF MOTION
20"
(508 mm)
ERGONOMICS
Working
customize - to your size
1 Set top of monitor screen about one inch below eye level - Release brake
and lift or lower riser as needed.
2 Tilt screen for comfortable viewing and to reduce eye and neck strain.
3 Pull keyboard tray forward and position mouse tray and mouse pouch on
right or left, as needed.
4 Work with elbows bent at about 90° to minimize muscle strain.
5 If the riser moves up and down with diffi culty, or if it drifts out of set
position, consult the product
manual for adjustment
information.
6 Stay in charge!
Powered carts should be
plugged into outlet as often as
possible to keep battery charged
and computer running.
STYLEVIEW®
QUICK REFERENCE
For more information on this or other Ergotron products, visit our website: www.ergotron.com
Release Brake to move riser.
5"
(127 mm)
1
2
4
3
5
6
25˚
+ 12˚
Moving
stow - before you go
1 During normal movement, release brake and lower worksurface to
lowest position for optimal stability and unobstructed view.
2 Tuck away open trays and return mouse, scanner and other
accessories to their places.
3 Unlock both front casters.
4 Push cart from rear with elbows bent at about 90° to maximize
control and minimize muscle strain.
5 Don't run out!
Before moving, make
sure cord is unplugged
from outlet and hooked
to basket for safe travel.
Remember, charge
battery fully 100%
every day!
EN
Loosen knob, tilt
Display to desired
position then
retighten knob.
12˚
1
4
5
3
777-24-005-G-00 rev.A • 08/10
