Option 2 - Mounting to right or left side of laptop head unit
CAUTION: Do Not Exceed Maximum SV Laptop Cart Weight Capacity 22 lbs. (10 kg). This is the sum of laptop, keyboard/mouse,
scanner and any worksurface load, including drawers, if present. Failure to heed this caution may result in personal Injury or property damage.

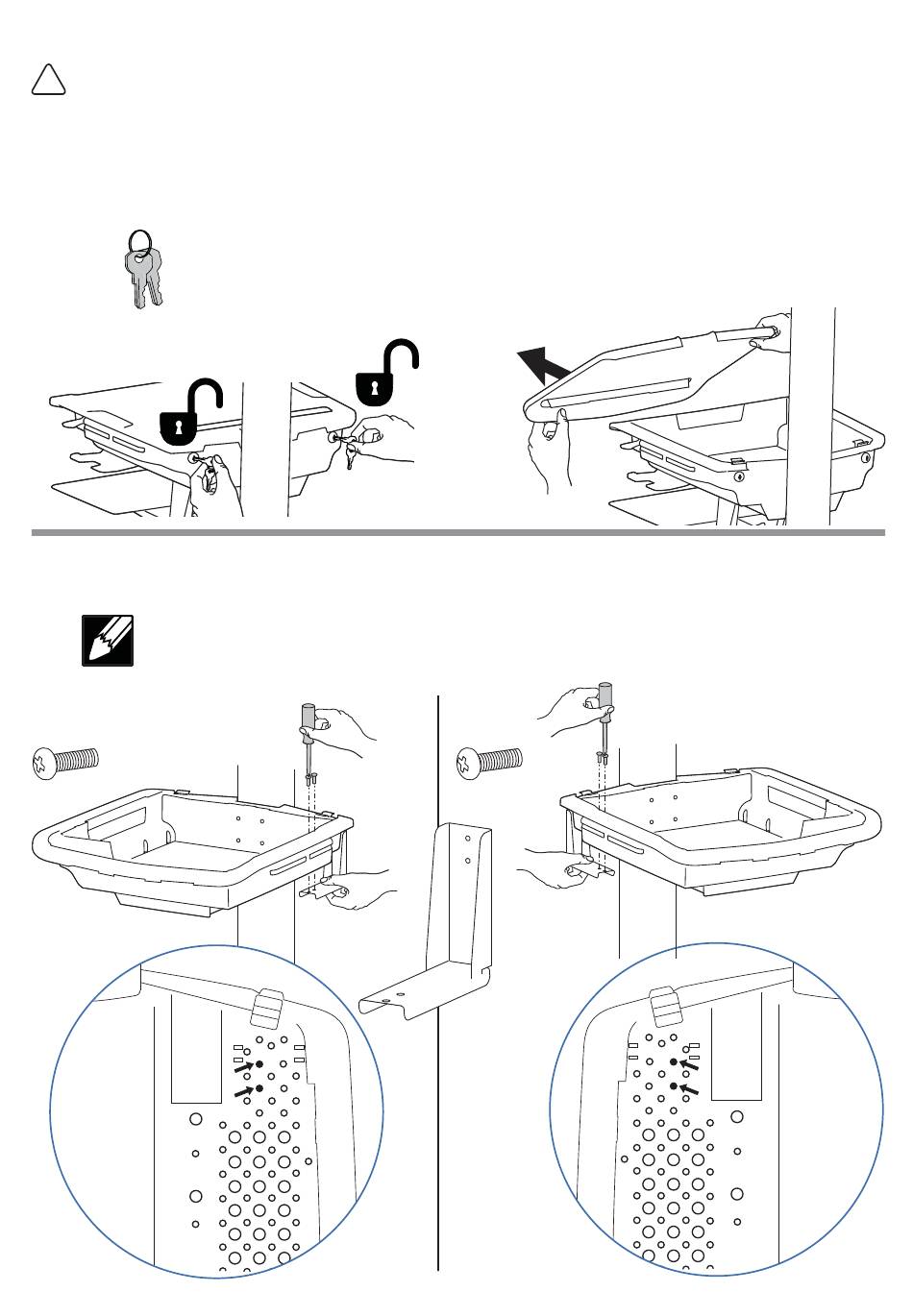

1
a. Unlock both sides of worksurface.
b. Remove worksurface.
a
2
a. Attach the shelf bracket to the right or left side of the head unit using two M4x16mm
Phillips screws.
Note: the screws pass into the head unit fl oor from above, as illustrated. Laptop
support bar may need to be removed temporarily to allow installation of scanner
bracket.
2x
M4 x 16mm
fl oor view
4 of 8
2x
M4 x 16mm
right
exterior
view
b
left
exterior
view
