Ergotron StyleView User Manual

Envelope drawer
Hide thumbs Also See for StyleView:

Advertisement

Quick Links

Download this manual See also: User Manual

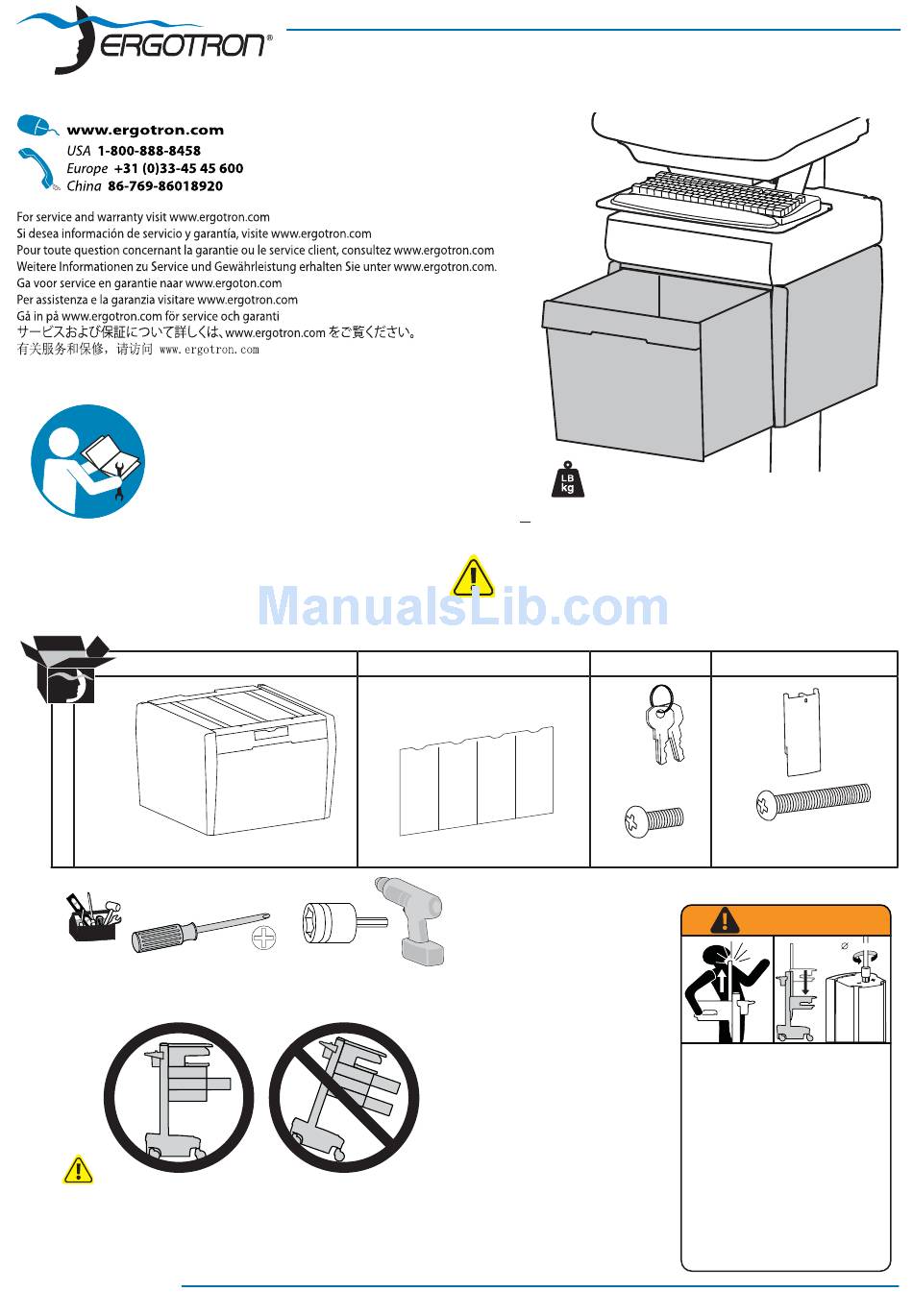

www.ergotron.com
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Nederlands
Benutzerhandbuch - Deutsch
Guida per l'utente - Italiano
Användarhandbok - svenska
1x
1
CAUTION: Close worksurface before opening drawers. Open only one drawer at a time. Do Not
push cart when drawers or worksurface are open. Failure to follow these instructions may cause
the cart to be unstable.
888-97-285-G-00 rev. D • 12/12
:
A
1x
14mm (9/16")

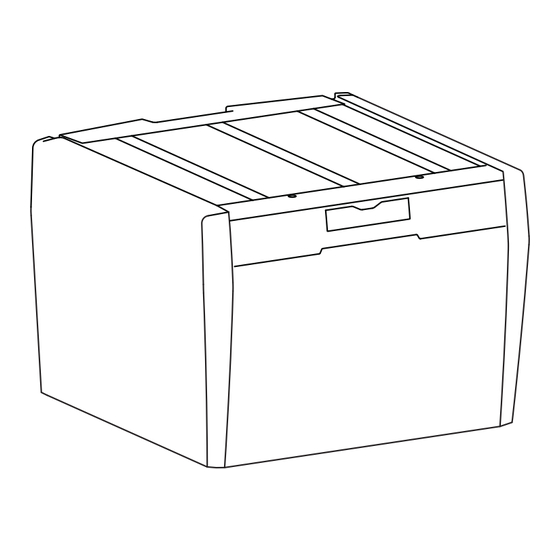

StyleView® Envelope Drawer
< 2 lbs (1 kg)
Total weight capacity per drawer.
For Medication Only.
B
1x
User Guide
C
1x
2x
1x
M3 x 22mm
M4 x 12mm
WARNING
IMPACT HAZARD!
MOVING PARTS CAN CRUSH AND CUT.
Minimize Lift Tension BEFORE:
· Removing Mounted Equipment.
· Shipping Cart
· Storing Cart
To Minimize Lift Tension
1. Lower worksurface to lowest position.
2. Turn adjustment nut at top of riser
counterclockwise until it stops
(Adjustment may require 40-60 revolutions).
Failure to heed this warning may result in
serious personal injury or property damage!
For More information and instructions refer to product
guide at http://4support.ergotron.com or contact
Ergotron Customer Care at 1-800-888-8458.
D
14mm (9/16")
822-052
1/10

Advertisement

loading
Need help?

Need help?

Do you have a question about the StyleView and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ergotron StyleView

Summary of Contents for Ergotron StyleView

  • Page 1 For More information and instructions refer to product push cart when drawers or worksurface are open. Failure to follow these instructions may cause guide at http://4support.ergotron.com or contact Ergotron Customer Care at 1-800-888-8458. the cart to be unstable.
  • Page 2 Attach the Travel Stop bracket to the lift engine to keep the drawer from hitting the base. M3 x 22mm Slide the drawer only half way onto the bottom tracks of the top drawer. 888-97-285-G-00 rev. D • 12/12 2/10...
  • Page 3 Remove the top cover on the top drawer and route the cable attached to the bottom drawer up into the control panel on the top drawer. Powered Carts Non-Powered Carts Slide the drawer completely onto the bottom tracks of the top drawer.
  • Page 4 Replace the top cover on the top drawer. Remove the top drawer(s). Secure the bottom drawer by attaching the two screws. M4 x 12mm Replace the top drawer(s). 888-97-285-G-00 rev. D • 12/12 4/10...
  • Page 5 LiFe Powered Carts SLA Powered Carts On Powered Carts only, reset drawer power so keypad will recognize added drawer. NOTE: This step is not needed on Non-Powered Carts. Turn power system off by Disconnect Power System from power source. Turn off all mounted equipment. holding down the AC Outlet Power button for 1 - 3 seconds.
  • Page 6 SLA Powered Carts On Powered Carts only, reset drawer power so keypad will recognize added drawer. NOTE: This step is not needed on Non-Powered Carts. Turn power system off by Disconnect Power System from power source. Turn off all mounted equipment. holding down the AC Outlet Power button for 1 - 3 seconds.
  • Page 7 Adjustment It is important that you adjust this product according to the weight of the mounted equipment as described in the following steps. Any time equipment is added or removed from this product, resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation.
  • Page 8 - Check to make sure DC cable is connected. • Drawer won’t open when User PIN is entered: - Test system by entering Master PIN. If drawer doesn’t unlock, contact Ergotron customer care for "Lost Master PIN" instructions. Lights: Meaning 1,2,3,4,5 or 6 and Red mute button Flashing and alarm sounding: Drawer is open longer than 20 seconds.
  • Page 9 -Make sure drawer is fully closed before entering PIN. • Drawer won’t open when User PIN is entered -Test system by entering Master PIN. If drawer doesn’t unlock, contact Ergotron customer care for "Lost Master PIN" instructions. 888-97-285-G-00 rev. D • 12/12 9/10...
  • Page 10 Insert divider. 888-97-285-G-00 rev. D • 12/12 10/10...
