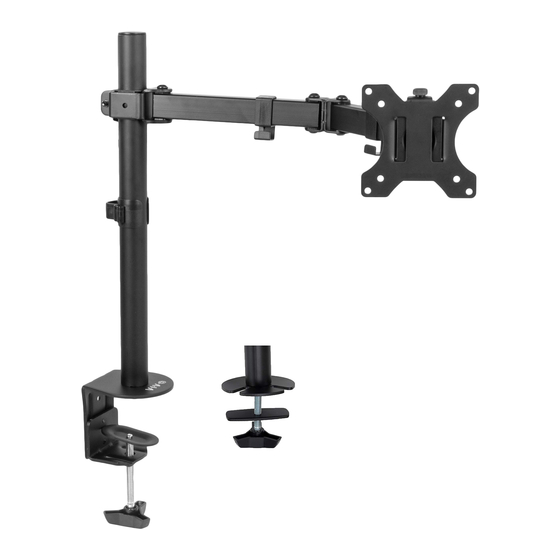

Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V101
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v101
help@vivo-us.com
www.vivo-us.com
1-800-371-5654
Advertisement
Related Manuals for Vivo STAND-V101
Summary of Contents for Vivo STAND-V101
- Page 1 Single Monitor Desk Mount Instruction Manual SKU: STAND-V101 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v101 help@vivo-us.com www.vivo-us.com 1-800-371-5654...
- Page 2 TOOLS NEEDED WARNING! DO NOT EXCEED WEIGHT CAPACITY. 17.6lbs Failure to do so may result in serious injury. (8 kg) If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or Phillips defective parts.
- Page 3 STEP 2 (Continued) STEP 4 OPTION B: Grommet Base Installation OPTION A: Flat Back Monitor For grommet hole mounting, remove Attach VESA plate (A) to monitor using bolts (M-A) screw in top of bolt on clamp (C). Stick or (M-C) and washers (M-E). soft pads (G) to bottom of grommet base (F).
- Page 4 STEP 6 STEP 8 Adjust tension in monitor bracket with 6mm allen key (L). Store allen key (L, K) in cable management clip (E) for future adjustments. STEP 7 Adjust as Desired Route cables through cable management clips. 180° 180° 360°...
- Page 5 Love your new VIVO setup and want to share? Tag us in your photo! @vivo_us If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product.
