Transmitter Supply Unit with
Limit Values
Series 9162
Additional languages r-stahl.com
EN
Manual
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9162 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stahl 9162 Series

Summary of Contents for Stahl 9162 Series

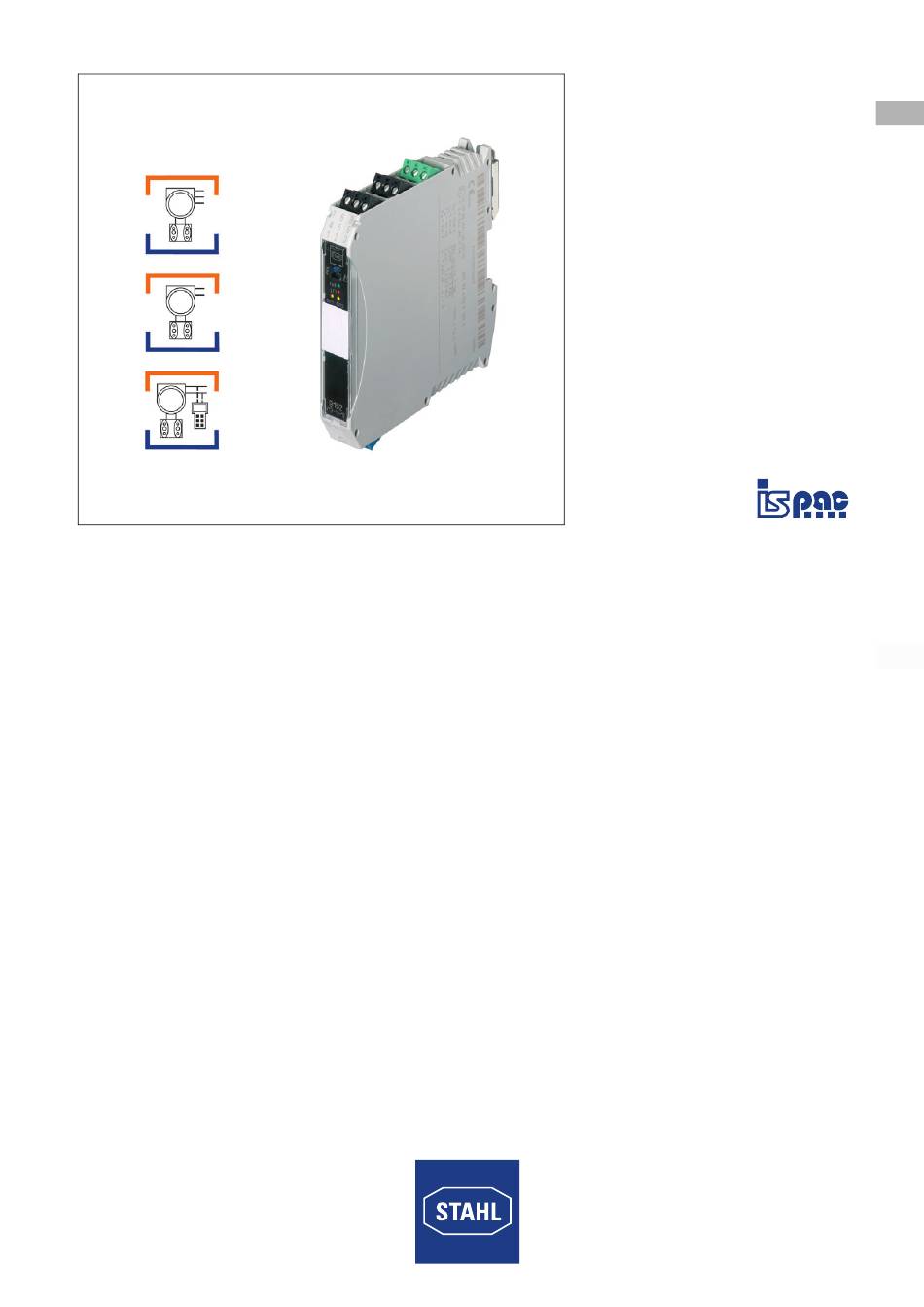

  • Page 1 Manual Additional languages r-stahl.com Transmitter Supply Unit with Limit Values Series 9162...

  • Page 2: Table Of Contents

    Contents General Information ....................3 Manufacturer .......................3 Information about the Manual ................3 Further Documents .....................3 Conformity with Standards and Regulations ............3 Explanation of the Symbols ................4 Symbols used in this Manual ................4 Warning Notes ....................4 Symbols on the Device ..................5 Safety Notes .......................5 Storage of the Manual ..................5 Personnel Qualification ..................5 Safe Use ......................6...

  • Page 3: En En

    • Operating instructions 9162 For documents in additional languages, see r-stahl.com.. Conformity with Standards and Regulations See certificates and EU Declaration of Conformity: r-stahl.com. The device has IECEx approval. For certificate please refer to the IECEx homepage: http://iecex.iec.ch/ Further national certificates can be downloaded via the following link: https://r-stahl.com/en/global/support/downloads/.

  • Page 4: Explanation Of The Symbols

    Explanation of the Symbols Explanation of the Symbols Symbols used in this Manual Symbol Meaning Tips and recommendations on the use of the device General danger Danger due to explosive atmosphere Danger due to energised parts Warning Notes Warnings must be observed under all circumstances, in order to minimize the risk due to construction and operation.

  • Page 5: Symbols On The Device

    Specialists who perform these tasks must have a level of knowledge that meets applicable national standards and regulations. Additional knowledge is required for tasks in hazardous areas! R. STAHL recommends having a level of knowledge equal to that described in the following standards: •...

  • Page 6: 3.3 Safe Use

    • Use the device in accordance with its intended and approved purpose only. • Always consult with R. STAHL Schaltgeräte GmbH if using the device under operating conditions not covered by the technical data. • Make sure that the device is not damaged.

  • Page 7: Modifications And Alterations

    Function and Device Design Commissioning, maintenance, repair • Only have commissioning and repairs performed by qualified and authorised persons (see chapter "Personnel qualification"). • Before commissioning, make sure that the device is not damaged. • Perform only maintenance work described in this manual. •...

  • Page 8: Device Design

    Technical Data Device Design Device Description component Black/green Connection terminals for the safe area terminals Parameteriza- Configuration of the device by means of tion interface ISpac Wizard software Type "9199" "PWR" LED, Auxiliary power indication green "LF" LED, red Indication of line fault detection "A"...
  • Page 9 Technical Data Explosion Protection Safety data When connecting 2-wire transmitter 3-wire transmitter transmitters max. voltage U 27 V 27 V max. current I 87.9 mA 88.3 mA max. power P 574 mW 574 mW max. connectable capacitance C 90 nF 90 nF max.
  • Page 10 Technical Data Type 9162/13-11-14 + Type 9162/13-11-64 Technical Data Electrical data Auxiliary power Nominal voltage 24 V DC Voltage range 18 to 31.2 V Residual ripple ( 3.6 V Nominal current 85 mA at U , 20 mA Power consumption at U , 20 mA Power dissipation...
  • Page 11 Technical Data Technical Data Residual ripple ( 40 μA Communication bidirectional HART transmission, 0.5 to 10 kHz signal Signal delay < 30 ms Signal rise, < 45 ms signal drop Limiting values Configuration using ISpac Wizard (V3.04.00 and following) Message 2 NO Switching voltage ( ±...
  • Page 12 Technical Data Type 9162/13-11-14 Technical Data Mounting / Installation Connection diagram Hazardous area Safe area Division 1 Division 2 pac Bus Zone 0 / 1 Zone 2 passive Field device ISpac Isolator Control system 13620E01 Type 9162/13-11-64 Technical Data Mounting / Installation Connection diagram Safe area Division 2...

  • Page 13: Engineering

    - flexible with core end 0.25 to 1 mm 0.5 to 1 mm sleeves For further technical data, see r-stahl.com. Engineering NOTICE Failure of the devices installed in the cabinet caused by too high ambient temperature! Non-compliance can result in material damage.

  • Page 14: Dimensions / Fastening Dimensions

    Mounting and Installation DANGER Explosion hazard due to incorrect installation of the device! Non-compliance results in severe or fatal injuries. • Carry out installation strictly according to the instructions and national safety and accident prevention regulations to maintain the explosion protection.
  • Page 15 Mounting and Installation Mounting • Connect the required number of pac-Bus elements. 07392E00 • Engage the pac-Bus elements on the top hat rail. 07391E00 • Connect the terminal set at the beginning and at the end. 15551E00 Dismounting • Proceed in the reverse order to mounting. 8.2.2 Mounting / Dismounting of the Device on Top Hat Rail and pac-Bus Mounting on top hat rail •...
  • Page 16 Mounting and Installation Dismounting • Pull out the base bolt somewhat using a screwdriver. • Swivel out the device. 06881E00 8.2.3 Mounting / Dismounting on pac-Carrier Mounting • Remove the black and green terminals. • For single-channel devices: remove the covering in terminal slot 2 (between the black and the green terminal).

  • Page 17: Installation

    Mounting and Installation 8.2.4 Mounting / Dismounting pluggable Terminals All devices are equipped with pluggable terminals. Mounting • Plug the terminal into the device until the terminal engages. Dismounting • Position the screwdriver behind the terminal. • Push out the terminal. 10859E00 Installation Operation under difficult conditions, such as, in particular, on ships, requires...

  • Page 18: Parameterization And Commissioning

    Parameterization and Commissioning 8.3.2 Schematic Diagrams See device labelling or technical data. Input wiring (blue / black terminals with pins 10,11,12): 2-wire transmitter 3-wire transmitter mA source 15541E00 15540E00 15539E00 Output wiring (black terminals with pins 1, 2): 9162 Channel 1 17251E00 A load resistance of at least 250 Ohm is necessary for a proper functioning of the HART communication in the output circuit (e.g.

  • Page 19: Replacement Of The Device

    Parameterization and Commissioning Replacement of the Device • If replacing by a device with identical design, readjust the DIP switch, if necessary. Parameterizations 9.2.1 Adjustments of limiting Values for Relay • Configure the limiting value function using the ISpac Wizard software. The following representation shows possible adjustments of the limit contacts for relays A and B.This is an example, other assignments are possible.

  • Page 20: 10.1 Indications

    • If the fuse is defective, have the device repaired. If the error cannot be eliminated using the mentioned procedures: • Contact R. STAHL Schaltgeräte GmbH. For fast processing, have the following information ready: • Type and serial number of the device •...

  • Page 21: Maintenance And Repair

    • Only return or package the devices after consulting R. STAHL! Contact the responsible representative from R. STAHL. R. STAHL's customer service is available to handle returns if repair or service is required. • Contact customer service personally. • Go to the r-stahl.com website.

  • Page 22: Cleaning

    Malfunction or damage to the device due to the use of non-original components. Non-compliance can result in material damage. • Use only original accessories and spare parts from R. STAHL Schaltgeräte GmbH. For accessories and spare parts, see data sheet on our homepage r-stahl.com.
