Stahl 9162 Series Manual
Transmitter supply unit with limit values
Hide thumbs
Also See for 9162 Series:
- Operating instructions manual (43 pages) ,
- Manual (22 pages) ,
- Operating instructions manual (42 pages)
Subscribe to Our Youtube Channel
Related Manuals for Stahl 9162 Series
Summary of Contents for Stahl 9162 Series

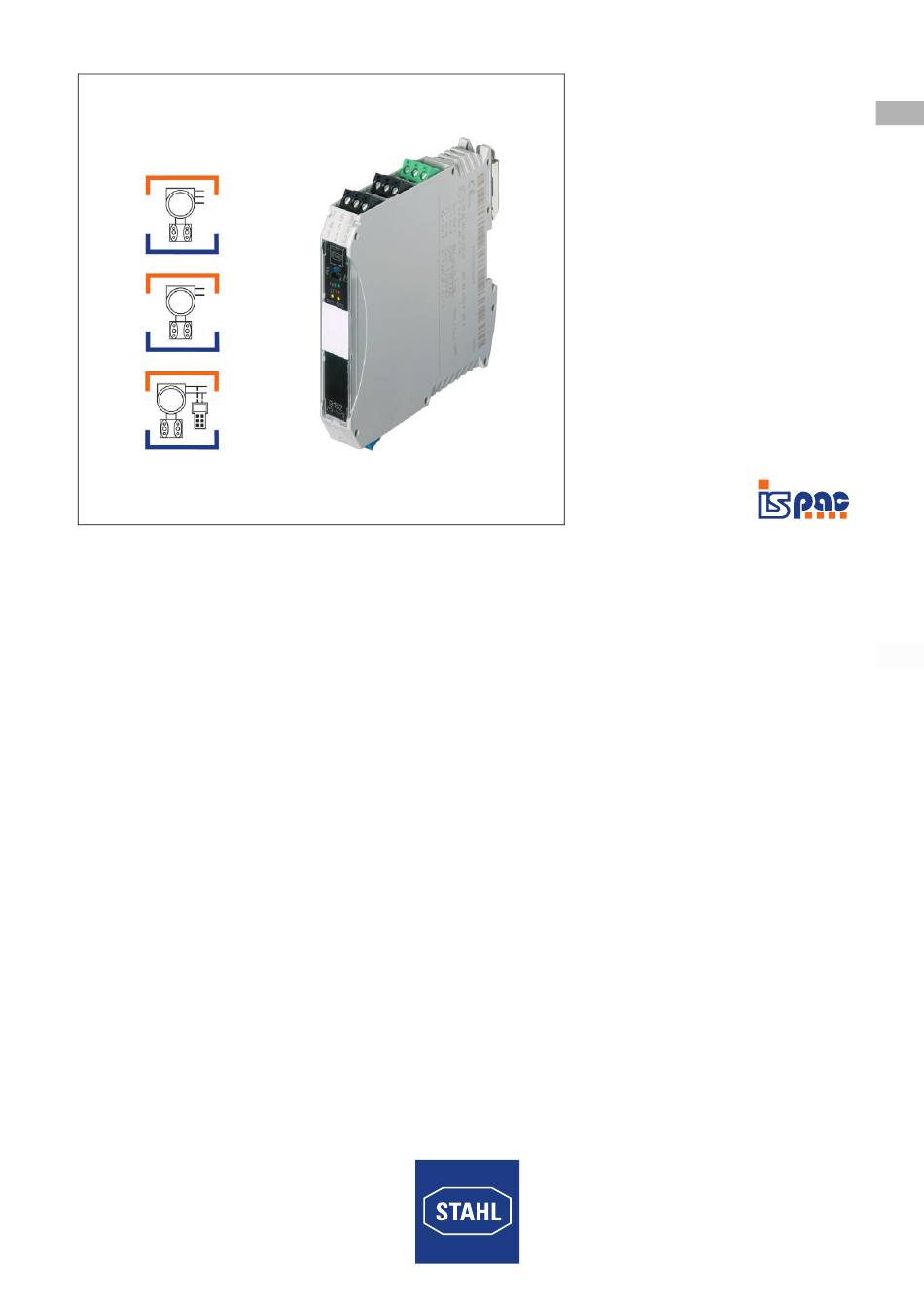

- Page 1 Manual Additional languages www.stahl-ex.com Transmitter Supply Unit with Limit Values Series 9162...
-
Page 2: Table Of Contents
Contents General Information ....................3 Manufacturer .......................3 Information about the manual ................3 Further documents ....................3 Conformity with standards and regulations ............3 Explanation of the symbols .................4 Symbols used in this manual ................4 Warning notes .....................4 Symbols on the device ..................5 Safety notes ......................5 Storage of the manual ..................5 Safe use ......................5 Modifications and alterations ................6... -
Page 3: En En
• Operating instructions 9162 For further languages, see www.stahl-ex.com. Conformity with standards and regulations See certificates and EC Declaration of Conformity: www.stahl-ex.com. The device has IECEx approval. See IECEx homepage: http://iecex.iec.ch/ Further national certificates can be downloaded via the following link: http://www.r-stahl.com/downloads/certificates.html. -
Page 4: Explanation Of The Symbols
Explanation of the symbols Explanation of the symbols Symbols used in this manual Symbol Meaning Tips and recommendations on the use of the device General danger Danger due to explosive atmosphere Danger due to energised parts Warning notes Warnings must be observed under all circumstances, in order to minimize the risk due to construction and operation. -
Page 5: Symbols On The Device
• Ensure that the contents of this manual is fully understood by the personnel in charge. • Use the device in accordance with its intended and approved purpose only. • Always consult with R. STAHL Schaltgeräte GmbH if using the device under operating conditions which are not covered by the technical data. -
Page 6: Modifications And Alterations
Safety notes For mounting and installation • Observe national installation regulations (e.g. IEC/EN 60079-14). • Observe national safety and accident prevention regulations. • During installation and operation, observe the information (characteristic values and rated operating conditions) on the rating, data and information plates located on the device. -
Page 7: Function And Device Design
Function and device design Function and device design DANGER Explosion hazard due to improper use! Non-compliance results in severe or fatal injuries. • The device may only be used according to the operating conditions described in this manual. • Use the device only for the intended purpose specified in this manual. Function Application range The transmitter supply unit with limiting values is used for operation of 2- and 3-wire... -
Page 8: Technical Data
Technical data Technical data Marking Type designation 9162/13-11-a4 (a=1,6) CE marking 0158 Type 9162/13-11-14 Explosion Protection Global (IECEx) Gas and dust IECEx BVS 15.0013X Ex nA nC [ia Ga] IIC T4 Gc [Ex ia Da] IIIC Europe (ATEX) Gas and dust BVS 15 ATEX E018X E II 3 (1) G Ex nA nC [ia Ga] IIC T4 Gc E II (1) D [Ex ia Da] IIIC... - Page 9 Technical data Type 9162/13-11-64 Explosion Protection Global (IECEx) IECEx BVS 15.0013X Ex nA nC IIC T4 Gc Europe (ATEX) BVS 15 ATEX E017X E II 3 G Ex nA nC IIC T4 Gc Certifications and certificates Certificates IECEx, ATEX, Canada (cFM), USA (FM) Type 9162/13-11-14 + Type 9162/13-11-64 Technical Data Electrical data...
- Page 10 Technical data Technical Data Input Input signal 4 ... 20 mA with HART Functional range 2 ... 22 mA Max. input current 50 mA for mA sources Supply voltage ) 16 V at 20 mA (T Amb > - 10 °C, T Amb < -10 °C: U S - 0.2 V / 10K) for transmitter Residual ripple ( 25 mV...
- Page 11 Technical data Technical Data Switching delay < 80 ms Switch-back delay < 100 ms Error detection input Wire breakage < 3.6 mA Short circuit > 21 mA Behaviour of = Input signal the output Ambient conditions Ambient temperature Single device -40 ...
-
Page 12: Engineering
– - flexible with core end sleeves 0.25 ... 1 mm 0.5 ... 1 mm For further technical data, see www.stahl-ex.com. Engineering NOTE Explosion hazard due to too high temperature in the cabinet! Non-compliance results in severe or fatal injuries! •... -
Page 13: Mounting And Installation
Mounting and installation Mounting and installation The device is approved for use in gas explosion hazardous areas of Zone 2 and dust explosion hazardous area of Zone 22 and in safe areas. DANGER Explosion hazard due to installation without approved field enclosure! Non-compliance results in severe or fatal injuries! •... - Page 14 Mounting and installation Mounting • Connect the required number of pac-Bus elements. 07392E00 • Engage the pac-Bus elements on the top hat rail. 07391E00 • Connect the terminal set at the beginning and at the end. 15551E00 Dismounting • Proceed in the reverse order to mounting. 8.2.2 Mounting / dismounting of the device on top hat rail and pac-Bus Mounting on top hat rail •...
- Page 15 Mounting and installation Dismounting • Pull out the base bolt somewhat using a screwdriver. • Swivel out the device. 06881E00 8.2.3 Mounting / dismounting on pac-Carrier Mounting • Remove the black and green terminals. • For single-channel devices: remove the covering in terminal slot 2 (between the black and the green terminal).
-
Page 16: Installation
Mounting and installation 8.2.4 Mounting / dismounting pluggable terminals All devices are equipped with pluggable terminals. Mounting • Plug the terminal into the device until the terminal engages. Dismounting • Position the screwdriver behind the terminal. • Push out the terminal. 10859E00 Installation Operation under difficult conditions, such as, in particular, on ships,... -
Page 17: Parameterization And Commissioning
Parameterization and commissioning 8.3.2 Schematic diagrams See technical data or device labelling. Input wiring (blue / black terminals with pins 10,11,12): 2-wire transmitter 3-wire transmitter mA source 15541E00 15540E00 15539E00 Output wiring (black terminals with pins 1, 2): 9162 Channel 1 17251E00 A load resistance of at least 250 Ohm is necessary for a proper functioning of the HART communication in the output circuit... -
Page 18: Replacement Of The Device
Parameterization and commissioning Replacement of the device • If replacing by a device with identical design, readjust the DIP switch, if necessary. Parameterizations 9.2.1 Adjustments of limiting values for relay • Configure the limiting value function using the ISpac Wizard software. The following representation shows possible adjustments of the limit contacts for relays A and B.This is an example, other assignments are possible. -
Page 19: Indications
• If the fuse is defective, have the device repaired. If the error cannot be eliminated using the mentioned procedures: • Contact R. STAHL Schaltgeräte GmbH. For fast processing, have the following information ready: • Type and serial number of the device •... -
Page 20: 11 Maintenance And Repair
R. STAHL Schaltgeräte GmbH. 11.4 Returning the device Use the "Service form" to return the device if repair or service is required. On the internet site "www.stahl-ex.com" under "Downloads > Customer service": • Download the service form. • Fill out the service form. -
Page 21: Cleaning
Malfunction or damage to the device due to the use of non-original components. Non-compliance can result in material damage. • Use only original accessories and spare parts from R. STAHL Schaltgeräte GmbH. For accessories and spare parts, see data sheet on our homepage www.stahl-ex.com.
