5. Visually determine that the main burner is burning properly; i.e., no fl oating, lifting or fl ashbacks. When
performing smoke test on oil-fi red systems, the burner should operate at a zero to a trace smoke. This can
indicate reduced available combustion air to burner.
6. If appliances are equipped with high and low fl ame control or fl ame modulation, check for proper main
burner operation at low fl ame.
7. Test for spillage at draft hood or barometric draft control opening and burner inlet air location after 5
minutes of main burner operation. Use a draft gauge, fl ame of a match or candle, smoke from a cigarette,
cigar or pipe. If spillage occurs, adequate air is not available. Shut off heating appliance thermostat and
check for spillage around the draft hood, barometric draft control or burner inlet air location after power
venter has stopped operation. If a fl ow reversal is noticed, house de-pressurization is occurring and make up
air is required. For oil-fi red systems, this may be noticed by oil fume smell after post purge cycle.
8. Turn on all fuel burning appliances within the same room so that they will operate at their maximum input.
Then repeat Steps 5 through 7.
9. Return doors, windows, exhaust fans, fi replace dampers and any other fuel-burning appliances to their
previous condition of use.

MAINTENANCE

1. Motor: Inspect the motor once a year - motor should rotate freely. To prolong the life of the motor, it must
be lubricated with six drops of SWG Superlube, Part # 46226200, annually.
2. Wheel: Inspect the power venter wheel annually to clear any soot, ash or coating which inhibits either
rotation or air fl ow. Remove all foreign materials before operating.
3. Vent System: Inspect all vent connections annually for looseness, for evidence of corrosion and for fl ue
gas leakage. Replace, seal or tighten pipe connections if necessary. Check the power venter choke plate
to ensure it is secured in place. Check the barometric draft control, if installed, to ensure the gate
swings freely.
4. System Safety Devices: With the heating system operating, disconnect the pressure sensing tube from
the pressure switch on the CK Kit. This will stop the burner operation. Re-connecting the tube will relight
the burner. For 30 millivolt operating systems, disconnect one lead of the spill switch circuit from the
thermocouple junction block. This will shut off the pilot and the burner. Re-connection will allow relighting
the pilot.
REPLACEMENT PARTS

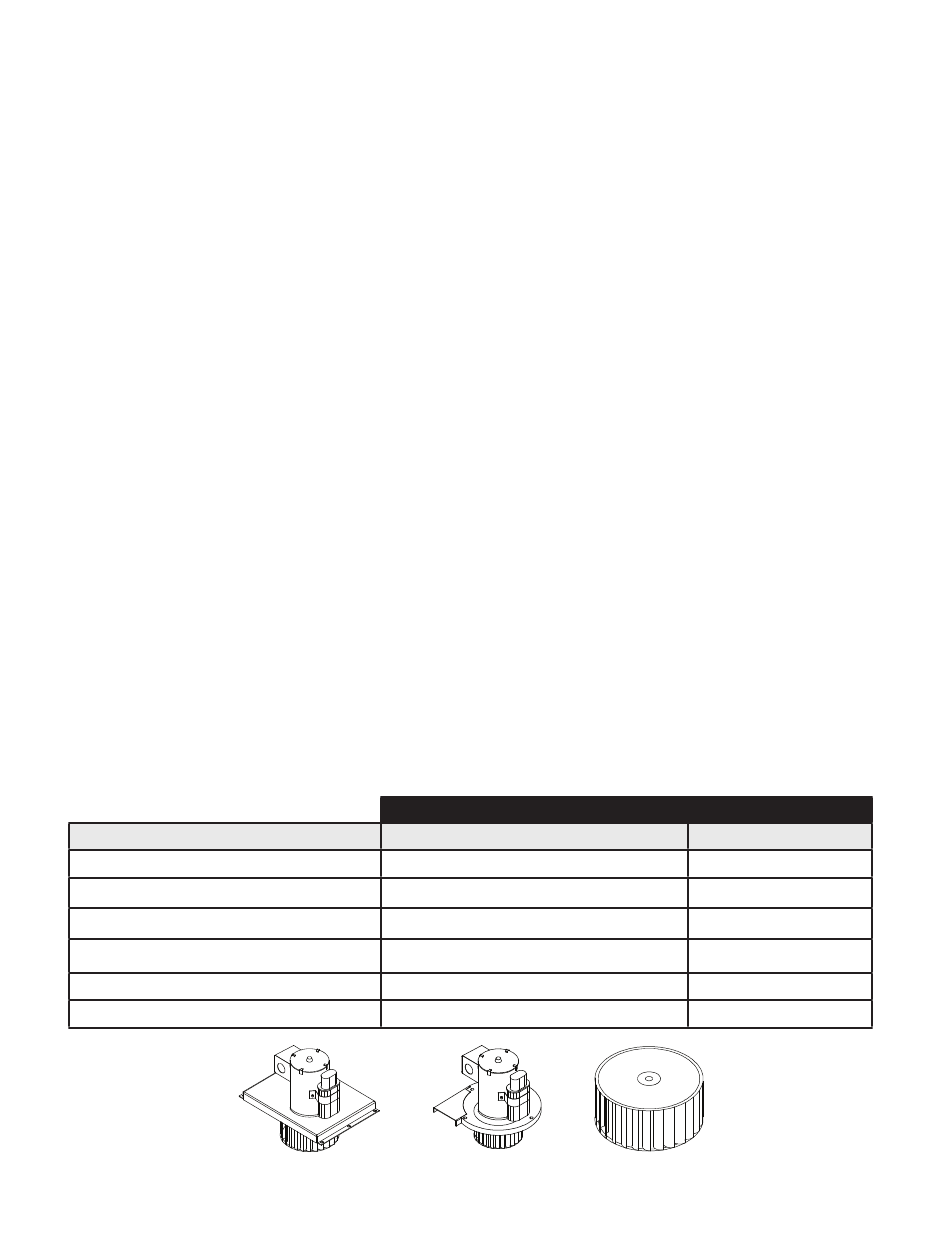

Should the motor or blower wheel need replacing, the following replacement items are available. The Repair
Motor Assembly contains the Motor and Blower Wheel factory assembled to a mounting bracket.
Table 4
MODEL
SWG–3
SWG–4HD, SWG–4s
SWG–5, SWG–5s
SWG–6, SWG–6s
SWG–7
SWG–8
SWG Repair
Motor Assembly Motor Assembly
page 9 of 12
PART NUMBERS
REPAIR MOTOR ASSEMBLY
46196601
46234800
46234900
46235000
46152401
46460101
SWG Repair Blower
Wheel
BLOWER WHEEL
46131800
46310400
46213800
46385800
46154700
46154800
P/N 46139100 Rev P 08/19
