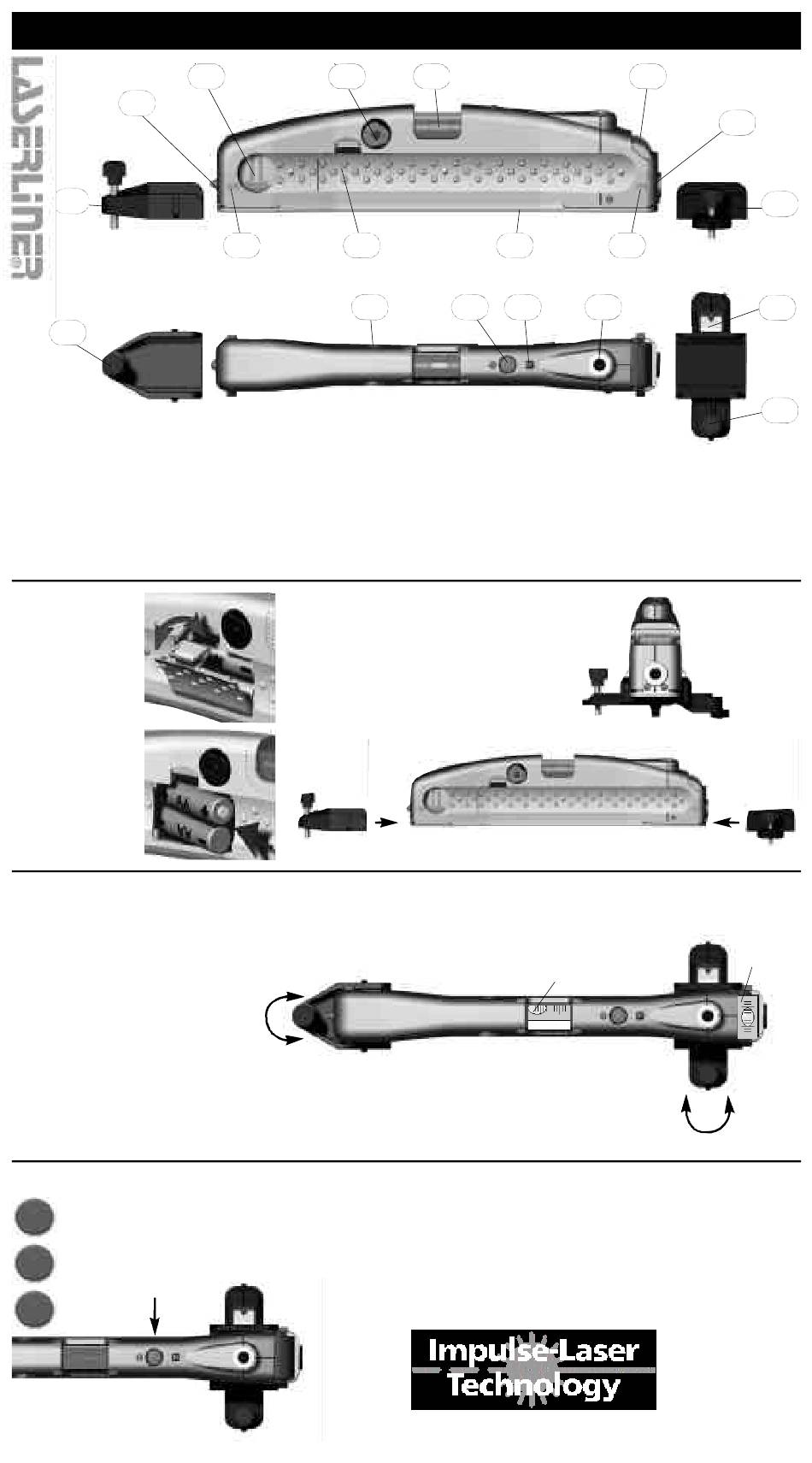

1. Vertical vial
2. Holder for pentaprism
3. Longitudinal vial
4. Transverse vial
5. Laser beam exit
6. Front adjustable foot

1. Operation

1.1 Batteries

2 x 1.5 V alkali
micro-batteries

1.3 Aligning the HandyLaser Magnum

1. First adjust the transverse vial Q with the
adjusting screw on the front adjustable foot.
2. Then adjust the longitudinal
vial L with the adjusting screw
on the rear adjustable foot.
Note: Always view the vials directly from
above to avoid reading errors.

1.4 Switch on - Press the button

Switch on
1.
impulse mode
Linear
2.
mode
Off
3.
switch
1
2
7
7. Aligning edge
8. Magnetic sole
9. Battery compartment
10. Rear adjustable foot
11. Pin
12. Rear adjusting screw

1.2 Fitting the adjustable feet

Insert the feet into the grooves as
shown.
2.
HandyLaser Magnum
3
9
8
13
14
Impulse Laser Technology
After switching on, the laser is in impulse mode. By
blinking continuously, the laser is much easier to see,
for example on rough plaster and coloured surfaces
and over bigger distances.
4
7
15
16
13. Prism ejector
14. Switch
15. Laser mode display
16. Plumb beam exit
17. Mirror for plumb projection
18. Front adjusting screw
L
5
6
17
18
Q
1.
