Summary of Contents for LaserLiner TITANIUM

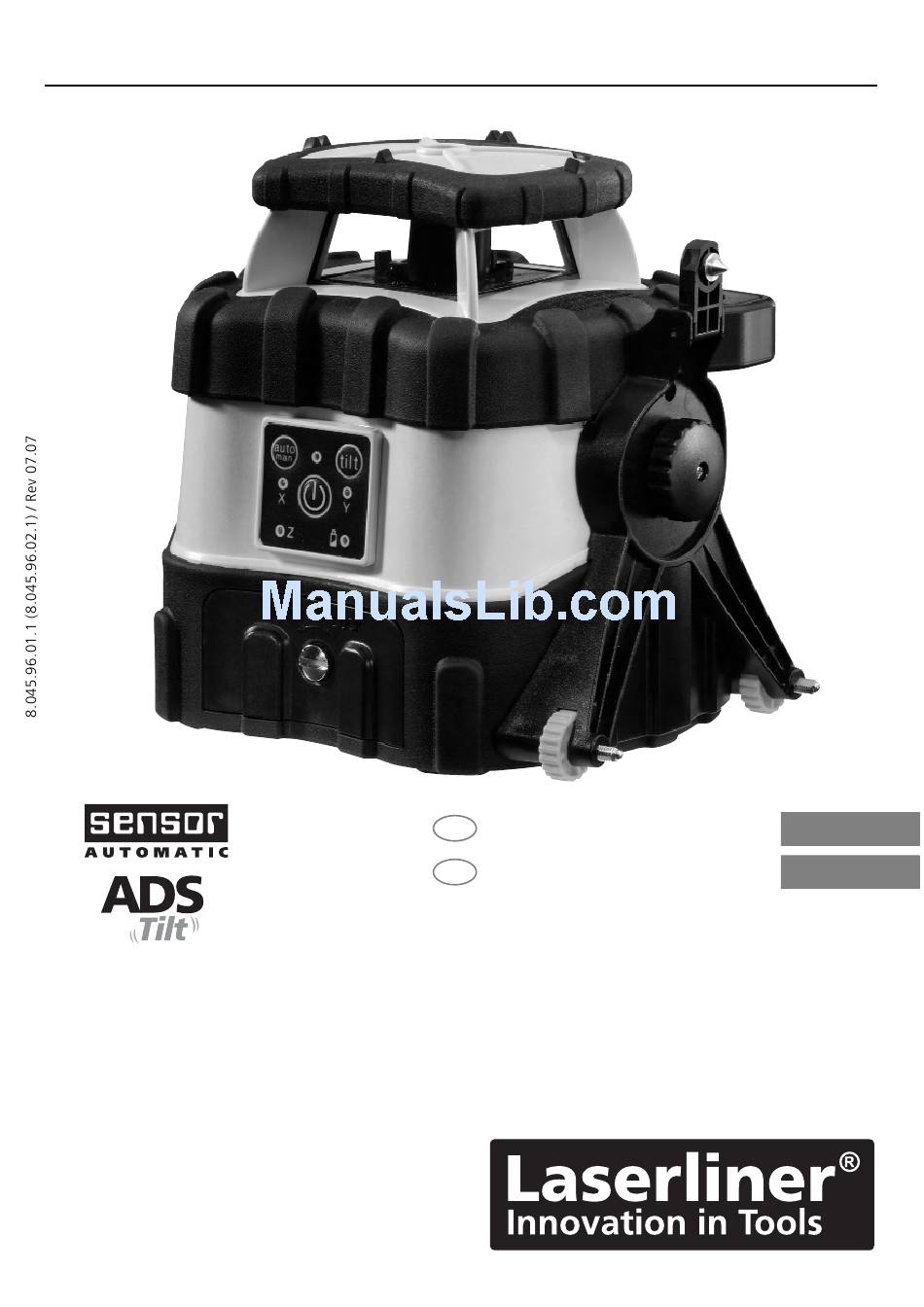

- Page 1 Titanium 3-14 Bedienungsanleitung 15-26 Operating instructions 27-38 39-50 51-62 63-74 75-86...
- Page 2 Titanium...
-
Page 3: General Safety Instructions
The included remote control can control all functions. Titanium Red Laser Class 2. The green laser of the Titanium Green is much more visible than the red. This allows applications over longer distances and working under very bright ambient light conditions. Titanium Green Laser Class 3R. -
Page 4: Anti-Drift-System (Ads)
Titanium Sensor Automatic The Titanium is of the self-levelling kind. After it has been put in the required basic position, fine adjustment is being effected automatically. Horizontal and vertical orthogonal adjustments are effected by the self-levelling system (SLS), while the X-, Y- and the Y-axis are scanned by two electronic measuring sen- sors. - Page 5 Titanium Vertical operation A Reference laser outlet K Tilt display B Prism head L 5/8 “ tripod adapter for vertical C Receiver diode for remote control (4x) M Vertical holder (screw adjustment) D Control panel N Adjusting screws E Battery compartment...
- Page 6 Titanium Key pads and symbols LCD-Display Commader 50 SensoCommander SensoLite (Volume only) 14 Speed / Angle range / Adjusting 22 Display measuring range selection axis at auto/man mode / 23 Hand receiver above laser level Volume at Hand receiver mode...
- Page 7 Titanium Operation of the Titanium Charging the batteries • Before using the divice, fully charge th batteries • Open the battery compartment (E), insert the batteries and connect the plugs to the sockets. The plugs fit in the sockets in one position only (see pictures on right).
- Page 8 Titanium Horizontal and vertical use Setting up: • Horizontal: Position the device on a level surface or on a tripod. • Vertical - fix vertical holder (M), unfold centric point (O) and position unit in vertical mode. Pre-adjust unit with vertical vial (R) and adjusting screws (N).
-
Page 9: Point Mode
Titanium Laser modes The following modes can be controlled with the Commander 50 up to a maximum distance of 50 m. Open battery compartment and insert battery according to picture on the right, ensure polarity is correct and close battery compartment. The rotating laser can also be controlled with the SensoCommander. - Page 10 It also allows you to determine heights directly without any need for calculation. Titanium Green (Laser class 3R) The distance at which a laser is visible to the naked eye depends on its colour i.e. wavelength. This is because of the human eye's physiology – green appe- ars brighter to us than red.
- Page 11 If points A2 and A3 are more than 1 mm / 10 m apart on either the X, Y or Z axis, the device is in need of calibration. Contact your authorised dealer or else the UMAREX-LASERLINER Service Department. ENGLISH...
- Page 12 In vertical mode the Z-Axis is automatically switched on. 2. Set the device to calibration mode: Switch off the Titanium, and then, with the auto/man button (F) de- pressed, switch on again, briefly press ON/OFF button (G). Keep the auto/man button (F) depressed until the tilt display (K) lights up. When this happens, the auto/man button (F) can be released.
- Page 13 Titanium (Subject to technical alterations) Titanium red / green Self-levelling range + 5° Precision + 1 mm / 10 m Automatic with electronic sensors Horizontal / vertical levelling and servo motors Self-levelling alignment time ca. 30 s Vertical reference beams 90°...
- Page 14 Zubehör (optional) Accesorios (opcional) Accessories (optional) Accessori (optional) Akcesoria (opcja) Accessoires (optioneel) Tilbehør (flere typer) Lisämahdollisuuksia valinnaisvarusteilla Accessoires (en option) Acessórios (opcional) Art.-Nr: 035.00.A Art.-Nr: 080.50 (Titanium Green) Art.-Nr: 035.01 (Titanium Green) Art.-Nr: 075.108 (8m) Art.-Nr: 075.105 (5m) Art.-Nr: 080.33...
