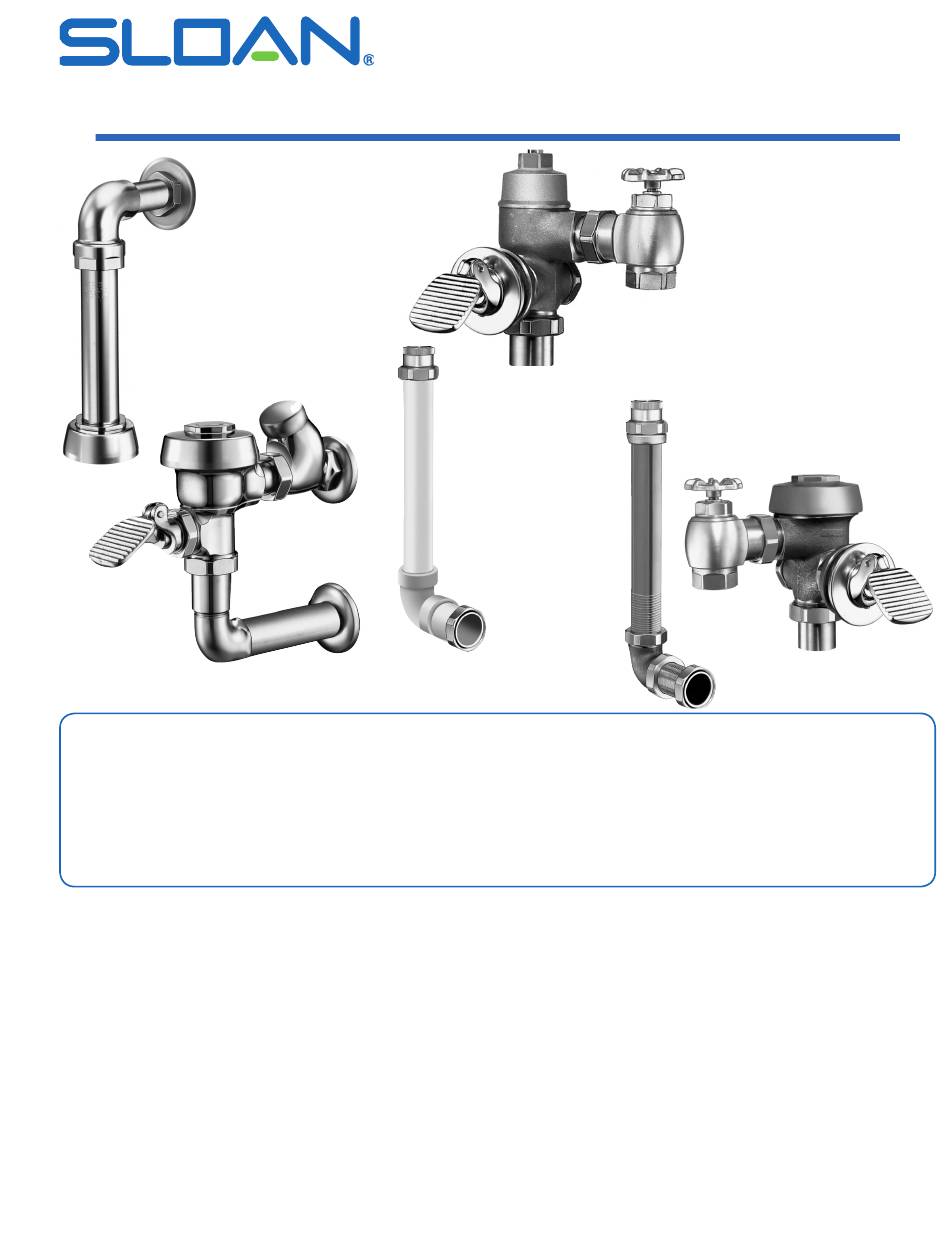

FOOT PEDAL ACTIVATED WATER CLOSET AND URINAL FLUSHOMETERS

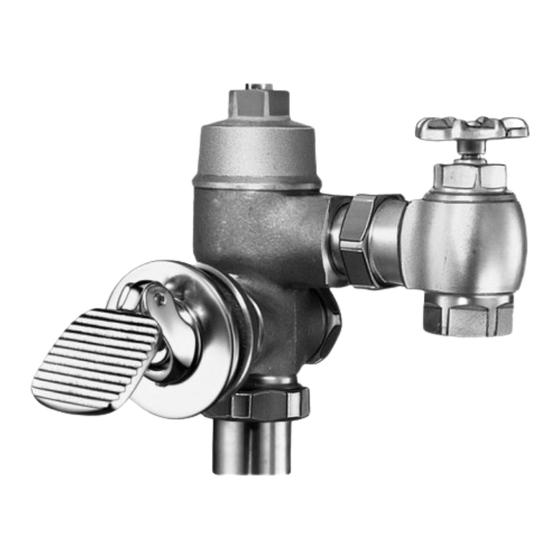

Royal 310
Exposed Model Shown
Sloan Valve Company warrants its Sloan Flushometers to be made of first class materials, free from defects of material or workmanship under normal use and to perform the
service for which they are intended in a thoroughly reliable and efficient manner when properly installed and serviced, for a period of three years (1 year for special finishes)
from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Sloan
Valve Company, at customer's cost, and this shall be the sole remedy available under this warranty. No claims will be allowed for labor, transportation or other incidental
costs. This warranty extends only to persons or organizations who purchase Sloan Valve Company's products directly from Sloan Valve Company for purpose of resale.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY RESPONSIBLE FOR
PRIOR TO INSTALLATION
Before installing the Sloan Flushometer, be sure the items listed below are
installed. Also, refer to the rough-in diagrams on Page 2.
• Closet/urinal fixture
• Drain line
• Water supply line
• Drill holes in wall for foot pedal actuator and water inlet to fixture
Due to code restrictions and installation practices, the Crown Naval 313
INT'L is for International use only.
Important:
• INSTALL ALL PLUMBING IN ACCORDANCE WITH APPLICABLE CODES
AND REGULATIONS.
• WATER SUPPLY LINES MUST BE SIZED TO PROVIDE AN ADEQUATE
VOLUME OF WATER FOR EACH FIXTURE.
• FLUSH ALL WATER LINES PRIOR TO MAKING CONNECTIONS.
Most Low Consumption water closets (1.6 gallon/6.0 liter) require a
minimum flowing pressure of 25 psi (172 kPa).
The Sloan Flushometer is designed to operate with 15 to 100 psi (104 to 689
INSTALLATION INSTRUCTIONS FOR
Crown Naval 313 INT'L
Concealed Model Shown
LIMITED WARRANTY
ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.
kPa) of water pressure. THE MINIMUM PRESSURE REQUIRED TO THE
VALVE IS DETERMINED BY THE TYPE OF FIXTURE SELECTED. Consult
fixture manufacturer for minimum pressure requirements.
Most Low Consumption water closets (1.6 gpf/6.0 Lpf) require a minimum
flowing pressure of 25 psi (172 kPa).
Protect the Chrome or Special finish of this Flushometer — DO NOT USE
TOOTHED TOOLS TO INSTALL OR SERVICE THE VALVE. Also, see "Care
and Cleaning" section of this manual.
IMPORTANT: EXCEPT FOR CONTROL STOP INLET, DO NOT USE PIPE
SEALANT OR PLUMBING GREASE ON ANY VALVE COMPONENT OR
COUPLING!
TOOLS REQUIRED FOR INSTALLATION
• Straight blade screwdriver for stop adjustment (exposed models only)
• Sloan A-50 Super-Wrench™, Sloan A-109 Plier Wrench or smooth jawed
spud wrench
• Hole saw for foot pedal actuator and water inlet to fixture
• 1/16" hex wrench for supply flange (exposed models only)
Code No. 0816488
Rev. 1 (02/17)
Royal, Regal, and
Crown Naval
Models 310, 312, 313, 313 INT'L,
318, 320, 323 and 343
Exposed and Concealed
Foot Pedal Activated
Closet and Urinal
Flushometer Valves
Made in the U.S.A.
Royal 313
Concealed Model Shown
Advertisement
Related Manuals for Sloan Royal 310
Summary of Contents for Sloan Royal 310
- Page 1 (1 year for special finishes) from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or parts which prove to be thus defective if returned to Sloan Valve Company, at customer’s cost, and this shall be the sole remedy available under this warranty.
- Page 2 WATER CLOSET ROUGH-IN Model 310 — Water Saver (3.5 gpf/13.2 Lpf) Model 312 — Water Saver (3.5 gpf/13.2 Lpf) Model 310-1.6 Low Consumption (1.6 gpf/6.0 Lpf) Model 312-1.6 Low Consumption (1.6 gpf/6.0 Lpf) Model 313 — Water Saver (3.5 gpf/13.2 Lpf) Model 318 —...
- Page 3 Protect the chrome or special finish of Sloan Flushometers — DO NOT (32 mm) Chamfer O.D. and I.D. USE toothed tools to install or service these valves. Use a Sloan A-50 of water supply pipe. Super-Wrench™, Sloan A-109 Plier Wrench or smooth jawed spud wrench to secure all couplings.
- Page 4 SAME PIPING AS ABOVE EXCEPT WITHOUT CALLOUT BRACKETS - USED FOR VACUUM BREAKER FLUSH CONNECTION PROCEDUR USED FOR VACUUM BREAKER FLUSH CONNECTION PROCEDURE Install Flushometer MODELS MODEL 313 MODEL 310/312 Lubricate tailpiece O-ring with water. Insert Adjustable Tailpiece ELL WITH WALL FLANGE VACUUM BREAKER 1-1/4”...
- Page 5 (see Figure 2). RUBBER GASKET Install Flush Connection (Figure 1) ELBOW A 1 1/2” pipe connection (NOT supplied by Sloan) must be used to connect the NYLON fixture inlet from the wall to the flush connection. RUBBER COUPLING...
- Page 6 SHAFT END MOUNTING NUT couplings securely. Important Note: Use a Sloan A-50 “Super-Wrench™”, A-109 Plier Wrench Install Mounting Nut, Coupling and Actuator Shaft End to Actuator or smooth jawed spud wrench to secure all couplings. This will eliminate Assembly. Hand tighten Mounting Nut to wall.
-
Page 7: Care And Cleaning
By-pass orifice is closed by an invisible gelatinous film from “over-treated” water. Disassemble the working parts and When assistance is required, please contact Sloan Valve Company wash thoroughly. NOTE: Size of the orifice in the by-pass is of utmost... - Page 8 ELL with 1-1/4” (32 mm) Tail (Models 310/312) Detailed Parts Breakdown ‡ ELL with 3/4” (19 mm) Tail (Model 320) For a detailed parts breakdown of Royal Flushometers, see Sloan Maintenance Guide ‡ 1” (25 mm) Wall Flange ‡ 3/4” (20 mm) Wall Flange...
