EFX-3XX SERIES
EFX-6XX SERIES
6C
6B
1B
9B
8
9A
16
10
17
18
15
The information contained in this document is subject to change without notice.
6A
3
4
2
1A
7
5
11
12
14
13
131

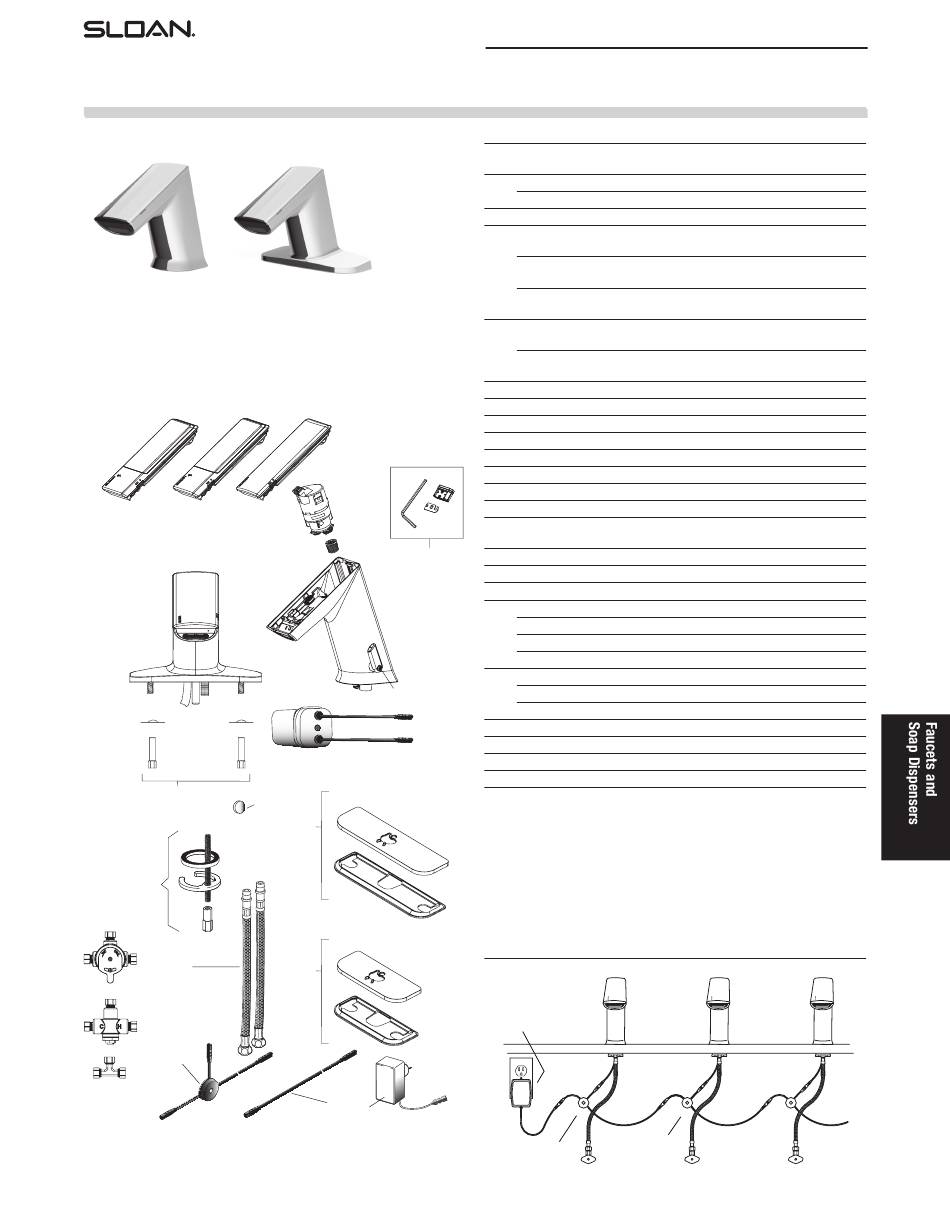

Repair Parts and Maintenance Guide
BASYS
Infrared Sensor Activated
PARTS LIST—BASYS FAUCETS
Item
No.
Code No. Part No.
Description
1A.
Low Pedestal Faucet Assembly*
Low Pedestal Faucet Assembly with Mixer*
1B.
Low Integrated Base Faucet Assembly†
3324104
2.
EFX-1002-A
0.5 gpm/1.9 Lpm Multi-Lam Spray Head (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
3324103
EFX-1001-A
1.5 gpm/5.7 Lpm Aerated Stream Insert (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
3324102
EFX-1000-A
1.5 gpm/5.7 Lpm Laminar Stream Insert (includes
insert, o-ring, 2.5 mm allen key, and removal tool)
3.
EFX-37
0.5 gpm/1.9 Lpm Solenoid Valve Caddy
Assembly — Low (Green)
EFX-38
1.5 gpm/5.7 Lpm Solenoid Valve Caddy
Assembly — Low (Blue)
0324019
4.
EFX-19
Strainer (Filter)
3324117
5.
EFX-23-A
Battery Pack Assembly
6A.
3324119
EFX-1-A
Crown Assembly
6B.
3324121
EFX-3-A
Solar Crown Assembly
6C.
3324120
EFX-4-A
Solar Crown with LCD Assembly
7.
Mixer Handle Assembly (for EFX-3 IR models only)
8.
EFX-25
Handle Cap (for EFX-3 IR models only)
9A.
0335000
EAF-1
Faucet Mounting Kit (for pedestal model only)
9B.
EFX-21-A
Faucet Mounting Kit (for integrated base model
only)
10.
3325023
EAF-1008
13" (330 mm) Flexible Supply Hoses (2)
3324101
11.
EFX-26-A
Trim Plate for 8" Centerset Sink
3324100
12.
EFX-20-A
Trim Plate for 4" Centerset Sink
0324027
13.
EFX-27
Plug-in Adapter (US)
EFX-28
Plug-in Adapter (EU)
EFX-29
Plug-in Adapter (UK)
0335037
EAF-37
Box Type Votage Adapter
14.
0335024
EAF-24-A
11-13/16" (300 mm) Extension Cable
0335025
EAF-25-A
47-1/4" (1200 mm) Extension Cable
0335015
EAF-17-A
126" (3200 mm) Extension Cable
15.
0335023
EAF-23-A
Splitter
16.
3326009
MIX-60-A
Mechanical, Below Deck Mixing Valve
17.
0326045
MIX-135-A
Thermostatic, Below Deck Mixing Valve
18.
3365461
ETF-617-A
Bak-Chek Tee
NOTE: If changing flow rate caddy and spray insert must be changed in conjunction.
† Single Supply faucets include Bak-Chek
®
*Integral Base model not available with integral to faucet side mixer; single supply faucets include Bak-Chek
— in Item No. column = Not shown in illustration
— in Code No. and Part No. column = Not sold separately
Electrical Connection for up to Six (6) Faucets Using One (1) Adapter
ADAPTER
DAISY CHAIN
DAISY CHAIN
ELECTRICAL
ELECTRICAL CABLE
CABLE
®
TO ADDITIONAL
FAUCETS
(6 MAX.)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EFX-6 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sloan EFX-6 Series

  • Page 1 Repair Parts and Maintenance Guide BASYS ™ Infrared Sensor Activated PARTS LIST—BASYS FAUCETS Item Code No. Part No. Description — — Low Pedestal Faucet Assembly* — — Low Pedestal Faucet Assembly with Mixer* — — Low Integrated Base Faucet Assembly† 3324104 EFX-1002-A 0.5 gpm/1.9 Lpm Multi-Lam Spray Head (includes...
  • Page 2: Operation

    Repair Parts and Maintenance Guide BASYS ™ Infrared Sensor Activated OPERATION SET AND FIX TEMPERATURE AND ADJUST HOT LIMIT STOP Steps to Default Function Activate Function Setting Clic Adjust lever to set temperature. IR Activation Cover IR clic approximately for 2 sec. ––...
  • Page 3: Battery Replacement

    Repair Parts and Maintenance Guide BASYS ™ Infrared Sensor Activated SENSOR RANGE ADJUSTMENT BATTERY REPLACEMENT 2x + Factory setting is appropriate for the majority of applications and should not NOTE: Replace Battery when LED1 indicator flashes red each time faucet 1x 5 sec require resetting unless under extreme situations.
  • Page 4 Repair Parts and Maintenance Guide BASYS ™ Infrared Sensor Activated REPLACING THE SOLENOID STRAINER (FILTER) REPLACE SPRAY INSERT NOTE: Turning off water is not necessary, due to integrated automatic stop NOTE: Turning off water is not necessary, due to integrated automatic stop valve.
  • Page 5 Repair Parts and Maintenance Guide BASYS ™ Infrared Sensor Activated UPGRADE FAUCET FUNCTIONALITY Remove crown by loosening hex Place new crown on faucet by sliding screw located on underside of spout onto spout and tightening hex screw and slide crown down and lift off. on underside of spout.
  • Page 6: Troubleshooting Guide

    Sloan Technical Support at: 1-888-SLOAN-14 (1-888-756-2614). A. Faucet is not working properly. B. Clean sensor window; if problem persists contact Sloan Tech Support. 4. Faucet DOES NOT deliver any water when sensor is activated. INDICATOR: Solenoid valve produces an audible “CLICK”.
