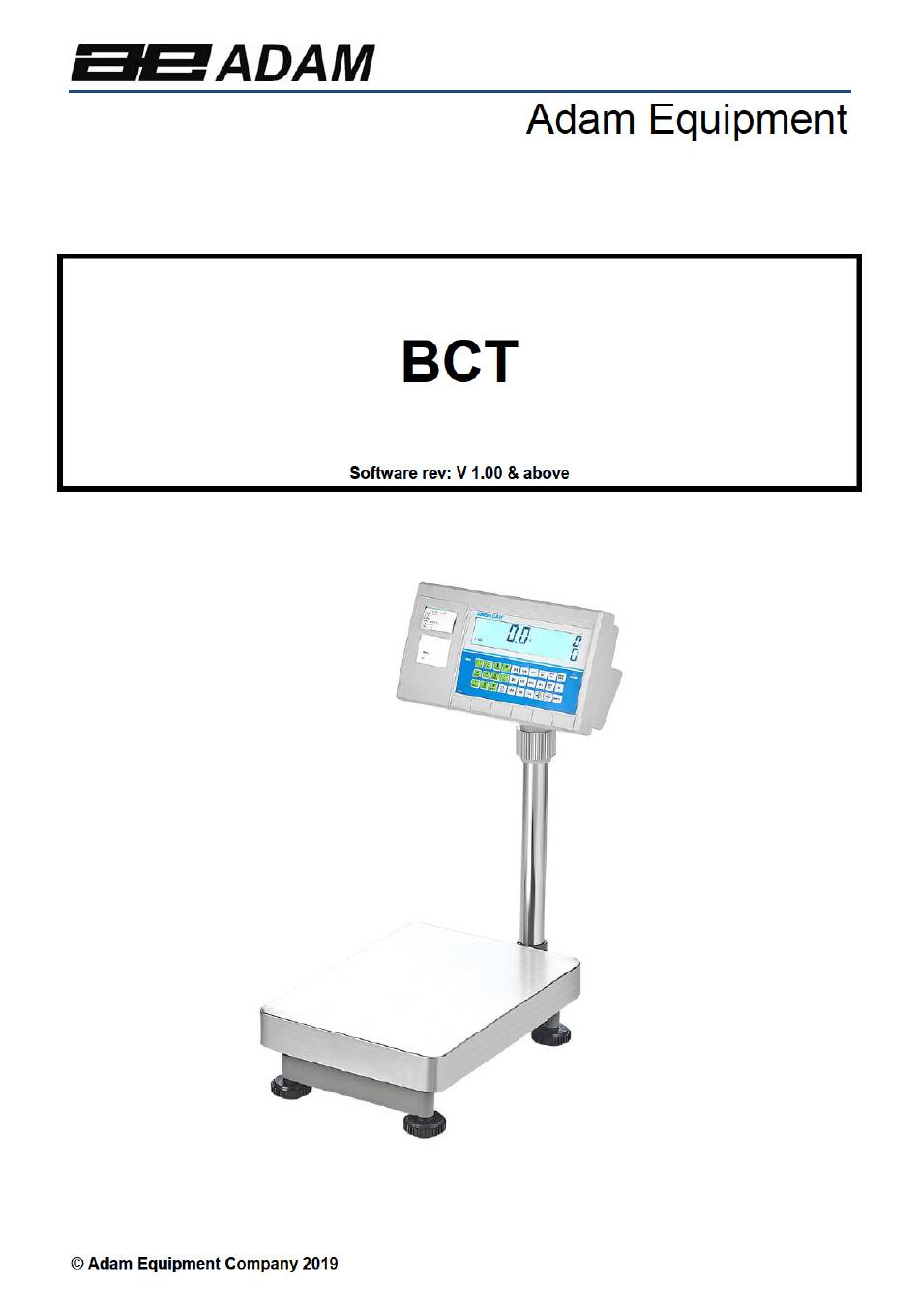

- Page 1 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com...
- Page 2 Easy Reference: Model name of the indicator/scale: Serial number of the unit: Software revision number (Displayed when power is first turned on): Date of Purchase: Name of the supplier and place: © Adam Equipment Company 2019...
-
Page 3: Table Of Contents
11.1 BATTERY ......................32 11.2 CHARGING ....................... 33 11.3 BACKLIGHT FOR LCD ..................33 12.0 ERROR CODES ....................34 13.0 REPLACEMENT PARTS AND ACCESSORIES ..........35 14.0 SERVICE INFORMATION ..................35 WARRANTY INFORMATION .................... 36 © Adam Equipment Company 2019... -
Page 4: Introduction

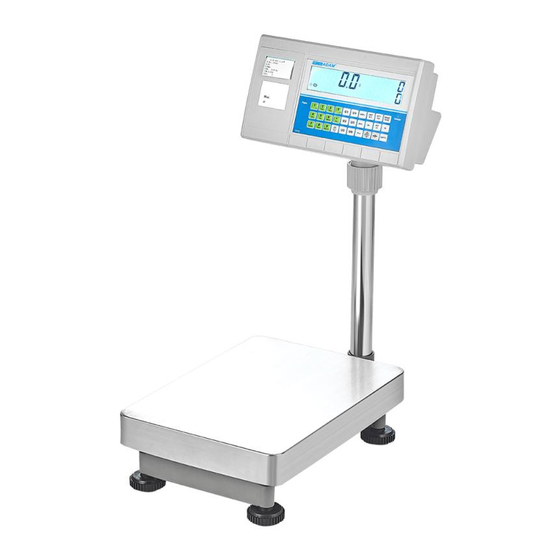

INTRODUCTION The BCT series provides a versatile check counting and weighing platform scale perfect for general warehouse and production. The BCT can be set to verify counts up to 60000 divisions All indicators are supplied with a RS-232 bi-directional interface and real time clock (RTC). -
Page 5: Specifications
0.5g 0.005kg 0.01kg 0.02kg Linearity 0.002lb 0.005lb 0.01lb 0.02lb 0.05lb 0.1lb 0.01kg 0.02kg 0.05kg Eccentric Loading 0.002lb 0.005lb 0.01lb 0.02lb 0.05lb 0.1lb 0.01kg 0.02kg 0.05kg Hysteresis 0.002lb 0.005lb 0.01lb 0.02lb 0.05lb 0.1lb 0.01kg 0.02kg 0.05kg © Adam Equipment Company 2019... - Page 6 8.5 kg 13.5 kg Net weight Weighing, parts counting, check counting Functions Grams, Kilogram, pound, ounce Weighing units Automatic external calibration Calibration Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com © Adam Equipment Company 2019...
-
Page 7: Installation
Avoid air movement such as from fans or opening doors. Do not place near open windows or air- conditioning vents. Keep the scale clean. Do not stack material on the indicator when they are not in use. © Adam Equipment Company 2019... -
Page 8: Key Descriptions
[UNITS] Choose the units [PLU] Used to access any stored PLU weight values [CE/ Used to clear numeric totals on the display. BACKLIGHT] Secondary function: Allows the backlight to be configured to ON/ OFF/ AUTO © Adam Equipment Company 2019... -
Page 9: Displays
Total Count: The total count of goods. Tare: Used as tare key in pricing mode Lo-bat: When battery power lower than 5.6V, it will show. Kg / Lb / g / oz /: Symbols shown for the units Net: Net weight‐ The scale has been tared © Adam Equipment Company 2019... -
Page 10: Unit Weight Display
Press [Q’TY PST] key to enter the H/L Limit value for Quantity Preset in the weighing mode. ”LIMOF” is used to configure the alarm settings, quantity or weight. In the unit weight Window, it will show “weight” or “count”, press [M+] key to change the alarm settings. © Adam Equipment Company 2019... -
Page 11: Operation
[Tare] key, Pre-tare complete. User can set follow function ON or OFF in F5 PTE: In weighing mode, when tare weight is known, input tare weight, then press [Tare] key to Pre-tare. © Adam Equipment Company 2019... -
Page 12: Checkweighing
The beep is on when the weighing H - L - mass is in between the set limits and below the set low limit. © Adam Equipment Company 2019... -
Page 13: Parts Counting
A beep will be heard when the value is updated. It is wise to check the quantity is correct when the unit weight has been updated automatically. The user can turn this function ON/OFF by pressing the AVG key. © Adam Equipment Company 2019... -
Page 14: Setting The Plu Data
If this PLU number is already stored, the weight window will show the stored unit weight. If it is a new one, the weight window will show the unit weight which get in normal weighing mode. The user can edit the unit weight by use keypad. © Adam Equipment Company 2019... - Page 15 Connect the scale with PC by RS232, open ScaleSetPlu.exe, and choose the right port. INGLE SETTING Press , software will show Input the serial number, unit weight, SKU ID, name as follow picture. if need scale increase the serial number automatically, please choose “Auto inc”. © Adam Equipment Company 2019...
- Page 16 DOWNLOAD MULTIPLE PLU BY TABLE (RECOMMEND) Use table edit software (such as Excel, WPS, Numbers) to new built a file, then input PLU data by follow format: Then save as xls file . 1. In ScaleSetPlu.exe, click ”Open” © Adam Equipment Company 2019...
-
Page 17: User Parameters
This parameter can be set to: n81 check bit/o71 O71 data bit /e71 stop bit. E71 T5 PFM Label format. Set to 0, can print out the format 0-19 which named FORMCOIN LP-50. For LP-50, please choose 0 or 1. © Adam Equipment Company 2019... -
Page 18: System Parameters
CE/Backlight & PLU buttons, and turn on the indicator using the on/off rocker switch. The indicator will display CA:C3:-3 ------ Using the keypad key in 123456 & then press the PRINT key, repeated pressing of the PRINT key will cycle through the available options listed below: © Adam Equipment Company 2019... - Page 19 P4 CAL The unit weight window : In this step, put on the correct weight, after stable LOAD indicator appear, press [PLU] complete The total quantity calibration. window : XXXXX © Adam Equipment Company 2019...
- Page 20 P2 Ld1 The same as Ld0. P2 Lr0 The same as Ld0. P2 Lr1 The same as Ld0. Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com © Adam Equipment Company 2019...
-
Page 21: Calibration
Press the [Print/Save] button, this will take you into the system parameters (P1 FIL is to do with filtering) , press the [Print/Save] button again, and you should see the system parameter for settings capacity & divisions (P2 C-d), screen should look similar to as follows: © Adam Equipment Company 2019... - Page 22 P3 LIN (muli range calibration) – leave this set to OFF; if it is set to ON pressing the [M+] key toggles the setting. Press the [Print/Save] key to go to calibration -P4 CAL © Adam Equipment Company 2019...
-
Page 23: Calibration
NOTE: BCT scales will have the lb or kg indicator on, to show the unit of the weight requested. If the scale was in pounds before starting the calibration, the weights requested will be in pound values or if the scale was weighing in kilograms then metric weights will be requested. © Adam Equipment Company 2019... -
Page 24: Label Printing Function
LABEL EDITING COMPUTER SOFTWARE The BCT is supplied with RS-232 interface which allows for connection between computer and indicator to edit labels for the inbuilt label printer and set printing parameters. © Adam Equipment Company 2019... - Page 25 OPERATION METHOD Connect the scale to the PC using the RS 232 cable provided, this is so the customised label can be downloaded straight to the indicator after completion Start up the label editing software © Adam Equipment Company 2019...
- Page 26 To change the parameters, left click the desired parameter and a drop-down arrow will appear with different options to select from. 9.1.3 LABEL CUSTOMISATION Once parameters have been set, the label can be customised and edited to the desired preference. © Adam Equipment Company 2019...
- Page 27 Taking the net weight example: To add text, click the ‘’TEXT’’ parameter on the left hand side of the display. Add the desired text into the box. © Adam Equipment Company 2019...
- Page 28 Bar codes can be added to the label which are capable of holding various weighing data. Left click the arrow next to the barcode icon and select the information for the barcode to hold, the barcode will then be added to the label. © Adam Equipment Company 2019...
- Page 29 Left click the QR code icon located in the editing tools section and click on the label area to place the QR code picture. The parameters for the QR code are as follows: X: 8=1mm, 400=50mm Y: 8=1mm, 400=50mm Thickness: The size of the QR code will affect the quality of the QR code. The bigger in size, the easier to scan Error Correction Level: The bigger the percentage, the easier it is to recover lost print data Text: The text entered can be a web link or common words so when the QR code is scanned with a smart device it will take the user to the address entered in this parameter. © Adam Equipment Company 2019...
-
Page 30: Label Download Procedure Via Rs 232 Cable
Export the image by selecting the export icon from the barcode icon in the top left- hand corner Press the download icon Select the necessary serial port and baud rate and click “download” © Adam Equipment Company 2019... -
Page 31: Rs-232 Interface
Pin 3 Output Pin 2 Input Pin 5 Signal Ground The scale can be set to print text in English, French, German or Spanish. See the RS-232 parameters section for details. All lines end with line feed <lf>, and carriage return <cr>characters. © Adam Equipment Company 2019... - Page 32 U. W 123 g Kg or g for metric weights and lb for pounds. G. W 1.234 Kg Net Wt. if net weight is displayed Item: [barcode] <lf><cr> Includes 2 line feeds with carriage return <lf><cr> at beginning and end of the form DATE 12/09/2006 TIME 14:56 Data Format‐ Memory Recall Print: <lf><cr> ID <lf><cr> ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ TOTAL 5 Wt. 1.234 Kg Pcs 10 pcs <lf><cr> Includes 1 line feed ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ <lf><cr> 2 line feeds, carriage return <lf><cr> DATE 12/09/2006 TIME 14:56 © Adam Equipment Company 2019...
-
Page 33: Input Commands Format
Z<cr><If> Sets the zero point for all subsequent weighing. The display shows zero. Same as pressing the [Zero 0] key. P<cr><lf> Prints the weight, unit weight and totals same as pressing the [PRINT/ SAVE] key. © Adam Equipment Company 2019... -
Page 34: Real Time Clock Setup
should be charged as soon as possible. Once the “LO bAT” message is shown the scale will still operate for about 10 minutes after which it will automatically switch off to protect the battery. © Adam Equipment Company 2019... -
Page 35: Charging
Sets the backlight to be on at all times. Sets the backlight to operate automatically when a “BL Au” weight is placed on the scale or a key is pressed. “BL OFF” Sets the backlight to be off. © Adam Equipment Company 2019... -
Page 36: Error Codes
AD value exceed the pow Power on again after remove the ERR-Z er on zero range when po weights or re-calibrate wer on Low power alarm Charge battery Battery symbol flash Low power alarm Charge battery Lo-Bat © Adam Equipment Company 2019... -
Page 37: Replacement Parts And Accessories
A. Details of your company ‐Name of your company: ‐Contact person’s name: ‐Contact telephone, e‐mail, fax or any other methods: B. Details of the unit purchased (This part of information should always be available for any future correspondence. We suggest you to fill in this form as soon as the unit is received and keep a print‐out in your record for ready reference.) Model name of the scale: Serial number of the unit: Software revision number (Displayed when power is first turned on): Date of Purchase: Name of the supplier and place: C. Brief description of the problem Include any recent history of the unit. For example: ‐Has it been working since it’s delivered ‐Has it been in contact with water ‐Damaged from a fire ‐Electrical Storms in the area ‐Dropped on the floor, etc. © Adam Equipment Company 2019... -
Page 38: Warranty Information
A decrease in maximum battery capacity or battery cycle life is not a defect in materials or workmanship, and is not covered by this Limited Warranty. Repairs carried out under the warranty do not extend the warranty period. Components removed during warranty repairs become company property. The statutory rights of the purchaser are not affected by this warranty. The terms of this warranty is governed by the UK law. For complete details on Warranty Information, see the terms and conditions of sale available on our web‐site. © Adam Equipment Company 2019... - Page 39 As we often update adaptor products to meet changing legislation it is not possible to refer to the exact model in this manual. Please contact us if you need specifications or safety information for your particular item. Do not attempt to connect or use an adaptor not supplied by us. © Adam Equipment Company 2019...
