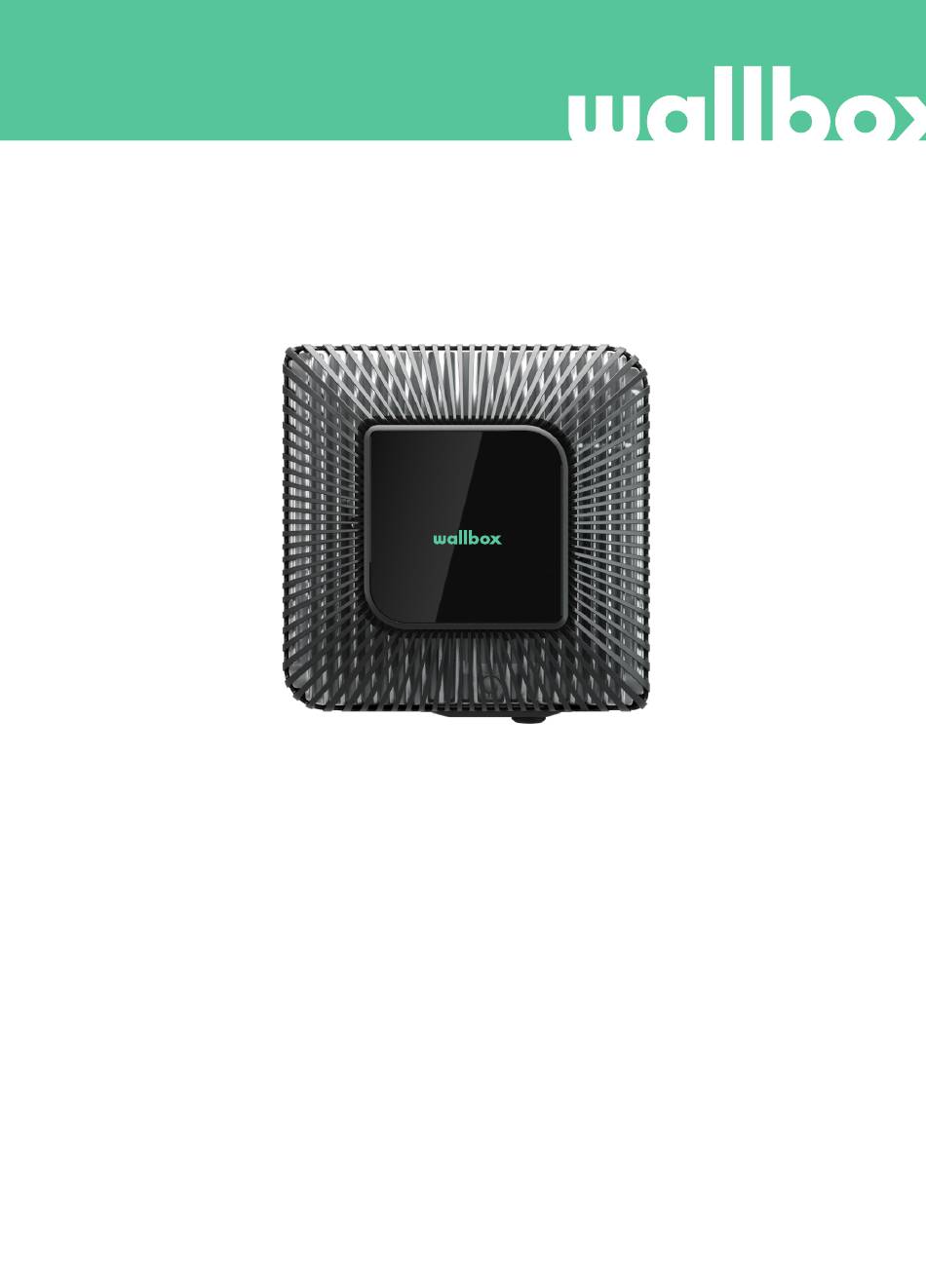

- Page 1 INSTALLATION MANUAL DC CHARGER 1PH Installation Guide...
-
Page 3: Table Of Contents
Contents Safety Recommendations Legal Notice Safety Instructions Identifying Symbols Connector Recommendarions Product Description Product Information Box Contents Installation Instructions Electrical Protection Dimensions and Positioning of the Device Opening the Package Drill Mounting Access to Ports and Current Selector Add Charger to your myWallbox Account Start Up User Guide Maintenance... -
Page 4: Safety Recommendations
• Wallbox chargers can only be used under the operating parameters specified and within the normal ambient conditions described in the Product Description. • Do not use your Wallbox charger under adverse climatic conditions that could affect the vehicle or the Wallbox device. Do not open the cover in the rain. -
Page 5: Identifying Symbols
Identifying Symbols Caution Risk of electric shock Hot Surface, risk of burn Sharp element, risk of injurious cuts Risk of foot crush Ground earth connection required Special waste treatment... -
Page 6: Connector Recommendarions

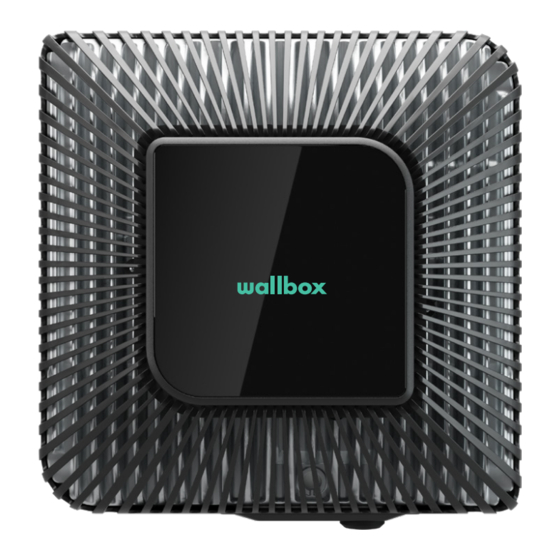

The new Wallbox charger is light-weight and compact enough to fit within a domestic setting. And it has all the premium styling cues and brand language of the Wallbox design influence. It charges and discharges through a CHAdeMo vehicle connector. -
Page 7: General Specifications
General Specifications Model DC Charger 1ph Cable length Connector type CHAdeMO Main unit dimensions 350 x 350 x 150 mm Net weight 23kg (19kg to lift when mounting) Package dimensions 510 x 485 x 470 mm Package weight 27kg Operating temperature -25 ºC to 40 ºC... -
Page 8: Product Information
• Drilling machine plus 6mm and 5mm drill bits Installation Instructions The installation of the Wallbox should be undertaken by a qualified electrician in accordance with the applicable standards and regulations. Preferably the installation should be undertaken by a Wallbox trained installer. - Page 9 The Wallbox charger must be permanently connected to the electrical earth of the installation. • Before installing or cleaning your Wallbox make sure that the power supply is switched off and there is no power in the system. After the power supply is switched off, dangerous high voltage will be present inside the charger for at least ten minutes.
-
Page 10: Electrical Protection
Remember that local regulations may limit these heights. It is mandatory to consider the following precautions: • The mounting area required for the Wallbox charging Minimun object - free area station is at least 130x55 cm (height by width). -
Page 11: Opening The Package
Opening the Package Put the package with the “Wallbox” text on top, on firm ground within an area of at least 2m by 2m free of obstacles. Carefully open the package and remove the parts. Caution because of the weight of the object. - Page 12 1.a Rear connection At the rear side of the connector box, there is an area with a thinner wall can be found; use a cutter or any sharp tool and make an incision for entry of the cable. Remove the four screws from the connector box and open it. Remove the screws of the cable clamp.
- Page 13 1.b Lower connection Insert the four anchors into each respective hole. Place the wallplate in its position. Fix the wallplate with four 6x30mm screws. At the lower side of the connector box, there is an area with a thinner wall can be found; use a cutter or any sharp tool and make an incision for entry of the cable.
-
Page 14: Mounting The Charger
3. Mounting the charger Connect the charging plug to the plug holder. Verify the release button is well connected (see picture 3.0). Roll the hose around the plug holder (see picture 3. 1 ). Hose Good connection (Green OK text visible) Plug holder Charging plug... -
Page 15: Access To Ports And Current Selector
Access to Ports and Current Selector Before proceeding, switch of the power supply and check no voltage is present at the power cables. Open the connection lid which is situated at the lower side of the charger, remove its two screw for do it so. Connection lid Current selector Use the selector to set the maximum current of the device. -
Page 16: Add Charger To Your Mywallbox Account
In case of any doubt contact your sales agent Add Charger to your myWallbox Account (optional) Download the Wallbox App available from Android Play Store or Apple App Store. Step 1: Log-in using your account. -
Page 17: Start Up
• Make sure that the power supply is turned off before you start cleaning your charger. • If you want to clean your Wallbox we recommend that you use a soft, dry or damp cloth. Do not use a spray or direct water stream to clean your Wallbox charger. -
Page 18: Limited Warranty
Wallbox warrants this product against defects in materials and workmanship for a period of two years from the date of purchase. During this period, Wallbox will either repair or replace, at its discretion, any defective product at no charge to the owner. Replacement products or repaired parts will be guaranteed for only the unexpired portion of the original warranty or six months, whichever is greater. - Page 20 www.wallbox.com...
