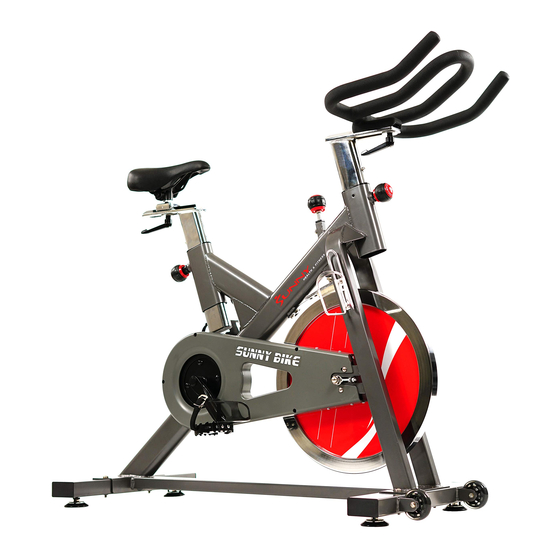

BELT DRIVE INDOOR CYCLING
BIKE
SF-B1712
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions.
Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-B1712 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunny SF-B1712

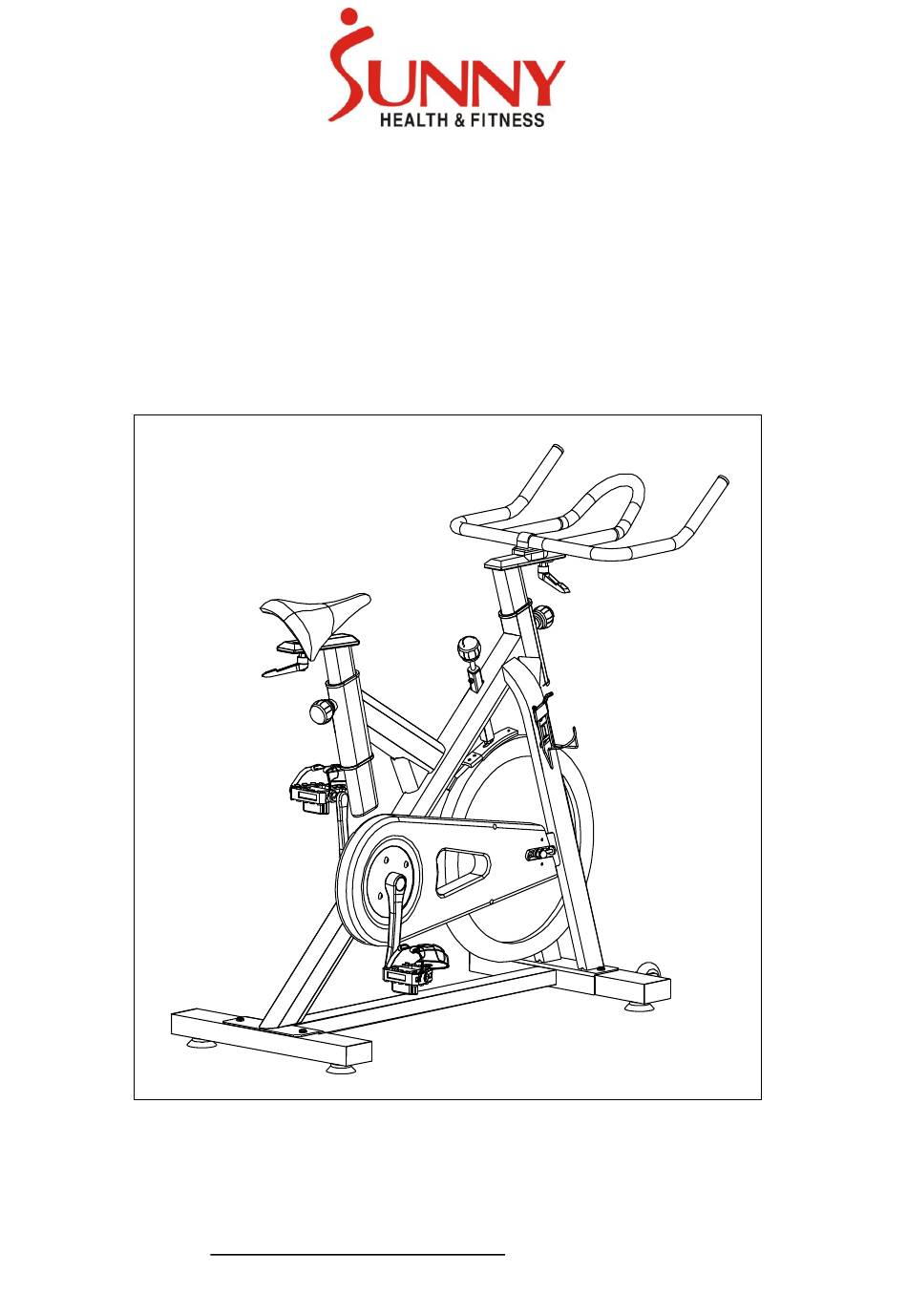

  • Page 1 BELT DRIVE INDOOR CYCLING BIKE SF-B1712 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.
  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM 27 28 43 44 50 53 54...
  • Page 4: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Handlebar 40L/R Pedal Handlebar Post 41L/R Nylon Nut 9/16*20*H8*S19 M5*10*S4 Screw 42L/R Crank d10*Φ40*4 Washer Crank Cap M10*1.25*H7.5*S1 L-shaped Knob M10*25 Cover Middle End Cap Axle Seat Post C-clip Seat Column Bearing 6004-RZ Seat Inner Belt Cover...
  • Page 5: Hardware Package

    HARDWARE PACKAGE #66 d8* 16*1.5 4PCS #67 M8*55 4PCS #4 d10* 40*4 1PC #5 M10*25 1PC #75 S6 1PC #76 S14-15-17 1PC #77 S10-13-17-19 1PC Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓...
  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 1: #74 M8*20 4PCS #75 S6 1PC #66 d8* 16*1.5 4PCS Remove Shipping Tubes (No. 73) from Main Frame (No.
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 3: #4 d10* 40*4 1PC #5 M10*25 1PC Insert the Seat Post (No. 7) into Main #11 M16*1.5*15* 49 1PC...
  • Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669). STEP 5: #28 M5*16 2PCS Remove pre-assembled 2 Screws (No. #27 d5* 10*1 2PCS 28) and 2 Washers (No. 27) from Main #76 S14-15-17 1PC Frame (No.
  • Page 9 ADJUSTMENTS GUIDE ADJUSTING THE BALANCE In order to achieve a smooth and comfortable ride, you must ensure that the stability of the bike is secured. If you notice that the bike is unbalanced during use, you should adjust the foot levelers located beneath the Front and Rear Stabilizers of the bike.
  • Page 10 ADJUSTING THE HANDLEBAR Figure A Loosen the [handlebar adjustment] Knob (No. 11) to raise or lower the handlebar to the desired position. Make sure the Knob (No. 11) settles into the desired hole and secure it firmly by turning clockwise. See Figure A. Loosen the L-shaped Knob (No.
  • Page 11: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS This is general information for daily, weekly and monthly maintenance to be performed on your bike. DAILY MAINTENANCE MONTHLY MAINTENANCE After each exercise session, wipe down all 1. Check if all hardware is secure, such as: equipment: seat, frame, water bottle holder, flywheel nuts, belt/chain handlebars.
