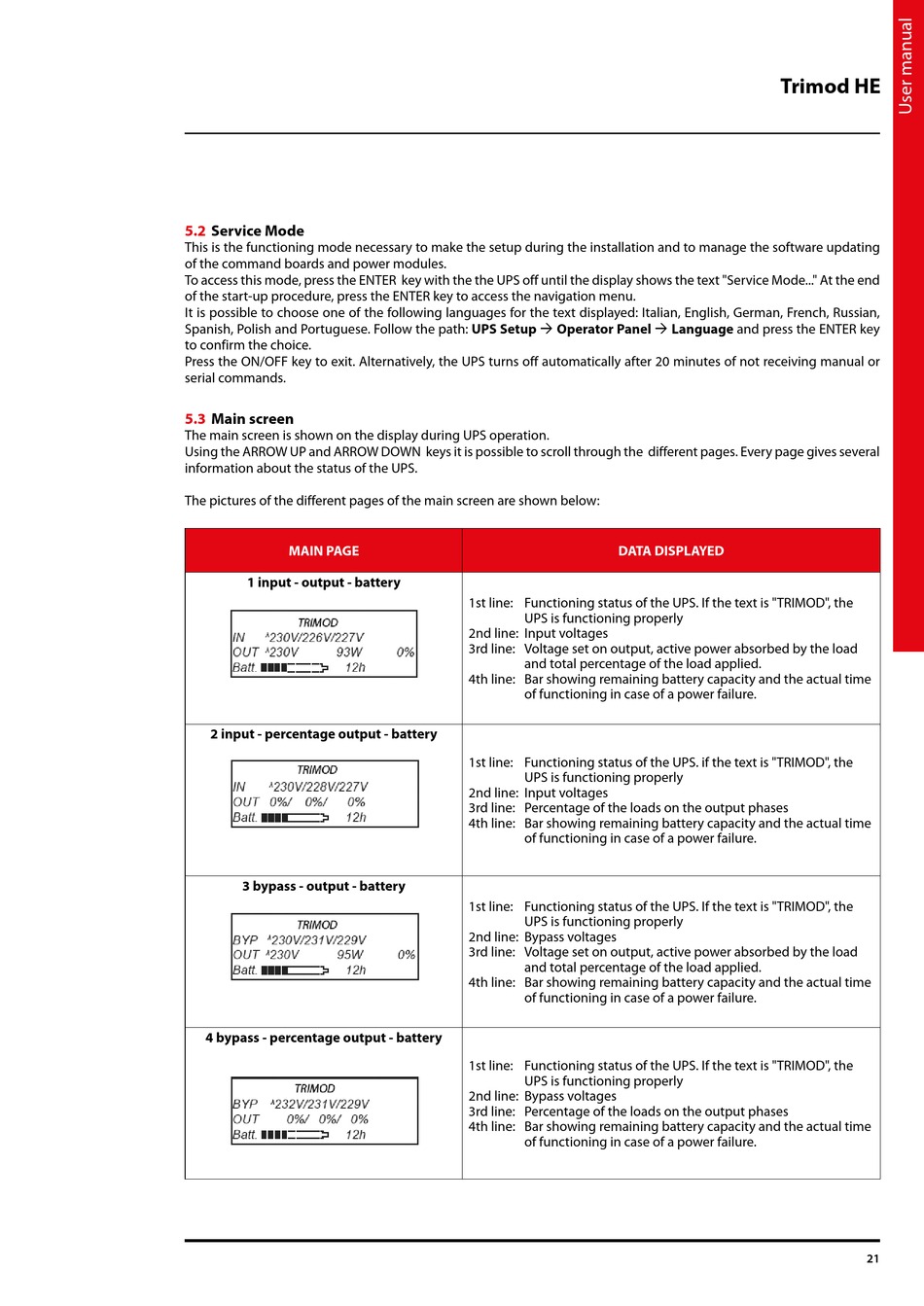

Service Mode; Main Screen - LEGRAND Trimod HE User Manual

5.2

Service Mode

This is the functioning mode necessary to make the setup during the installation and to manage the software updating
of the command boards and power modules.
To access this mode, press the ENTER key with the the UPS off until the display shows the text "Service Mode..." At the end
of the start-up procedure, press the ENTER key to access the navigation menu.
It is possible to choose one of the following languages for the text displayed: Italian, English, German, French, Russian,
Spanish, Polish and Portuguese. Follow the path: UPS Setup  Operator Panel  Language and press the ENTER key
to confirm the choice.
Press the ON/OFF key to exit. Alternatively, the UPS turns off automatically after 20 minutes of not receiving manual or
serial commands.
5.3

Main screen

The main screen is shown on the display during UPS operation.
Using the ARROW UP and ARROW DOWN keys it is possible to scroll through the different pages. Every page gives several
information about the status of the UPS.
The pictures of the different pages of the main screen are shown below:
MAIN PAGE
1 input - output - battery
2 input - percentage output - battery
3 bypass - output - battery
4 bypass - percentage output - battery
DATA DISPLAYED
1st line: Functioning status of the UPS. If the text is "TRIMOD", the
UPS is functioning properly
2nd line: Input voltages
3rd line: Voltage set on output, active power absorbed by the load
and total percentage of the load applied.
4th line: Bar showing remaining battery capacity and the actual time
of functioning in case of a power failure.
1st line: Functioning status of the UPS. if the text is "TRIMOD", the
UPS is functioning properly
2nd line: Input voltages
3rd line: Percentage of the loads on the output phases
4th line: Bar showing remaining battery capacity and the actual time
of functioning in case of a power failure.
1st line: Functioning status of the UPS. If the text is "TRIMOD", the
UPS is functioning properly
2nd line: Bypass voltages
3rd line: Voltage set on output, active power absorbed by the load
and total percentage of the load applied.
4th line: Bar showing remaining battery capacity and the actual time
of functioning in case of a power failure.
1st line: Functioning status of the UPS. If the text is "TRIMOD", the
UPS is functioning properly
2nd line: Bypass voltages
3rd line: Percentage of the loads on the output phases
4th line: Bar showing remaining battery capacity and the actual time
of functioning in case of a power failure.
