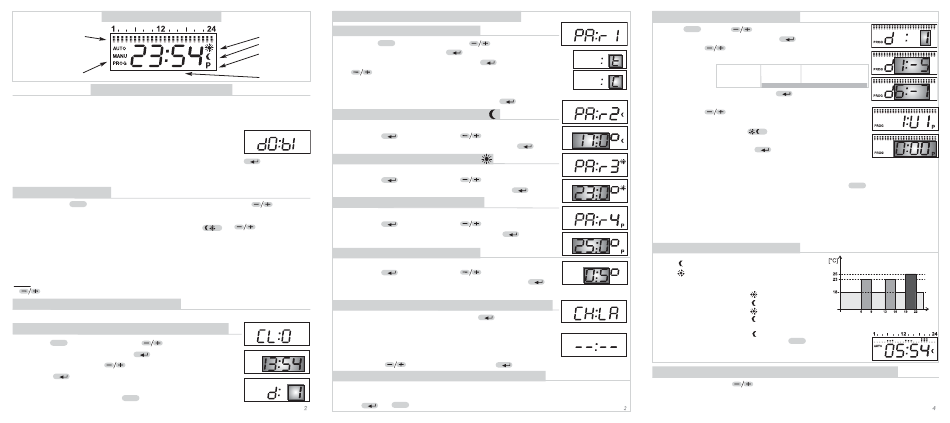

DISPLAY DESCRIPTION
indication of set time
and temperature
program
indication of
operating mode
OPERATING INSTRUCTIONS
After connection in 230V-socket is TS20 immediately ready for use. If sign dO:bI is flashing on the
display, the back-up battery is not fully charged and it is necessary let the TS20 in 230V-socket to
charge for minimal 2 days (full charge take about 4 days). After charging it is possible to remove
TS20 from socket without losing the actual time and you can provide the programming outside
the 230V-socket. (Maximal backup time is 100 hours).
IMPORTANT! If we disconnect TS20 from the network 230V, the TS20
comes to stand-by mode and only actual time will be shown on display
(the colon symbol will not be flashing) and the buttons will be
functionless. The activation of the buttons you can make by pressing the
If the TS20 is not in 230V-socket the showed temperature is 2 °C lower than real actual temperature!
The device you want to control, we connect through the simple insertion into the TS20 socket.
1. BASIC FUNCTIONS
Fce
After pushing the button you can select following functions by pushing
1. AUTO : thermo-switch socket works according to program as set.
(AUTOMAT)
2. MANU : manual mode, set temperature by
(MANUAL)
the temperature should be constant up to next change of mode.
3. CL:O : setting of present day and time.
(CLOCK)
4. PA:r : setting of parameters (constants).
(PARAMETERS)
5. PROG : programming mode.
(PROGRAMMIING)
6. OF:F : in this mode, TS20 is permanently switched-off.
(OFF)
Note: If you do not push any button in 2 minutes, TS20 returns into set mode. Longer pushing of
" " buttons speeds up their functions.
2. PROCEED DURING PROGRAMMING
Before the programming itself, it is necessary to set present day, time and parameters (constants), namely in following way.
Setting of current day and time - " CL:O " function
Fce
Press the button, by pressing select CL:O
(CLOCK) function and confirm by . Indication of hours
i
blinks on the display, use buttons to set required data and
confirm by button. Use the same method for minutes and day
i
(d:1 represents Monday, d:2 Tuesday etc. and d:7 Sunday). After
the completion of setting, press Fce button to return.
Setting of parameters (constants) - " PA:r "
indication of temp.
PA:r1
display option
comfortní
- Press the Fce
economy
and confirm by
party (PARAMETERS)
- PA:r1shows on the display, confirm by
indication of
of buttons select display options in basic mode:
time/temp.
t information on present temperature
C current time
- the selection is again confirmed by pressing
PA:r2
economic temperature (factory setting 17°C)
- PA:r2 is showed on the display
- confirm by
i
economy temperature, again confirm by pressing
PA:r3
comfort temperature (factory setting 23°C)
i
button.
- PA:r3 is showed on the display
- confirm by
i
comfort temperature, again confirm by pressing
PA:r4
party temperature (factory setting 25°C)
buttons
- PA:r4 is showed on the display
- confirm by
i
or buttons,
P
party temperature, again confirm by pressing
PA:r5
HYSTERESIS (factory setting 0,5°C)
- PA:r5 is showed on the display
- confirm by
i
sis in the range from 0.1°C to 6°C, again confirm by
HYSTERESIS = temperature difference for switching on/off the appliance.
PA:r6
summer mode = switching on/off the air-conditioner (COOLING)
- PA:r6 is showed on the display, press
-
can be selected in summer, when we need to switch connected
air-conditioner on at defined temperature. In this mode, the
hysteresis will act in inverse way than in the mode for heati
(if PA:r5=0.5 and required temperature is 23°C, the socket switches on at the
temperature of 23.5°C)
- by pressing
PA:r9
number of firmware version/ reset of factory settings (see page 5)
- PA:r9 is showed on the display
-
this parameter is only of informative character a shows the number of firmware version
- press or Fce
i
button, by pressing select PA:r
i
and with using
i
i .
and by pressing buttons set
.
i
and by pressing buttons set
.
i
P
and by pressing buttons set
.
i
and by pressing buttons set hystere-
.
i
i
cooling mode
ng
heating mode
select mode, then press button.
i
to return to function selection.
PROG function
program defining
- press Fce and by buttons select PROG
function and confirm by pressing
i
- by pressing select the day, which should be
programmed according to following table
d:1 Monday
d:5 Friday d1:5 Monday to Friday
d:2 Tuesday
d:6 Saturday d6:7 Saturday to Sunday
d:3 Wednesday d:7 Sunday d1:7 whole week
d:4 Thursday
TABLE: SELECTION OF DAY TO BE PROGRAMMED
- when the day is selected, press and symbol 1:U1
i
is displayed, so that you can set the first time interval
- by pressing set the time of the first change
(min. step: 10min.)
- by repeated pressing of assign required
P
temperature to this time
- again confirm by pressing and the display
i
automatically shows symbol 1:U2 for the second time
interval in the first day.
- this procedure should be repeated until all time intervals (max.6) are set and
afterwards leave the programming mode by pressing
- select AUTO function and the socket starts to function according to defined
program.
Indication of socket condition:
symbol AUTO(or MANU) on the display IS ALIGHT = connected appliance is SWITCHED ON
symbol AUTO(or MANU) on the display FLASHES = connected appliance is SWITCHED OFF
EXAMPLE
definition of weekly program
1, Set for 18°C (PA:r2)
2, Set for 23°C (PA:r3)
3, Set P for 25°C (PA:r4)
4, Select programming of whole week d1:7 (Prog)
5, Assign the time of 6:00 and temperature to 17:U1
6, Assign the time of 9:00 and temperature to 17:U2
7, Assign the time of 13:00 and temperature to 17:U3
8, Assign the time of 16:00 and temperature to 17:U4
9, Assign the time of 19:00 and P temperature to 17:U5
10, Assign the time of 22:00 and temperature to 17:U6
Fce
11, Leave the programming mode by pressing and
select AUTO func.
Short-term change of temperature in AUTO mode
By simple pressing of in AUTO mode it is possible to make a short-term
change of required temperature.The socket will maintain this temperature up to
next temperature change as defined in the program.
Fce .
Mo-Su
[hours]
representation of
program course on LCD
